User Manual for Atlas Sound FAP40T Strategy II Series 4" 16W Ceiling Speakers Click to enlarge the picture
Contents of the user manual for the Atlas Sound FAP40T Strategy II Series
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
 |
User manual for the Atlas Sound FAP40T Strategy II Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

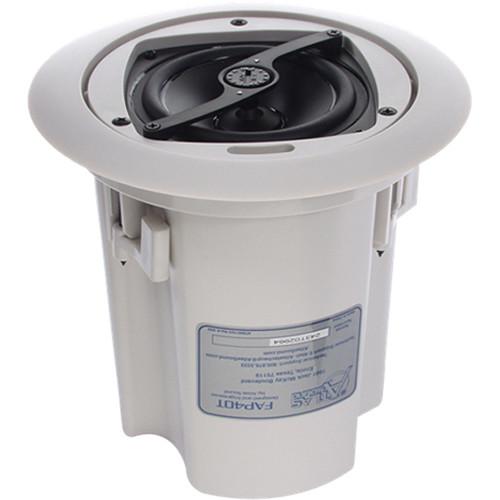

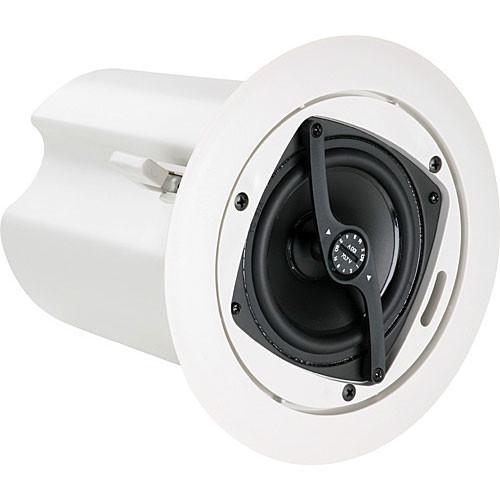

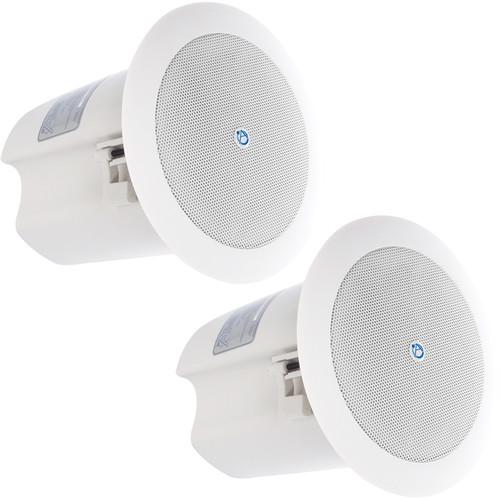

Product description This pair of white Atlas Sound FAP40T lightweight Strategy II Series 4" 16W ceiling speakers offers clear reproduction of voice and music signals for use in offices, classrooms, and retail shops. The 4" polypropylene woofers are housed by low-profile plastic enclosures, which are tuned and ported for extended low-frequency range. Each FAP40T yields a frequency response of 100 Hz to 12 kHz, with adjustable power output settings ranging from 16W at 8 Ohms to a maximum of 16W at 70.7V. The tap selector switch is concealed and protected by a press-fit steel grille. System wiring is accommodated by the 2-pole terminal strip, located beneath a removable rear-panel cover. Two tile bridges—one for each speaker—are included for easy installation in suspended ceiling tiles. - Extended Bass Response
- The tuned and ported design of the enclosure is specifically intended to give the listener an extended bass response.
- Sturdy Construction
- The low-profile enclosure features a press-fit steel mesh grille and high-impact plastic exterior for durability. Lightweight construction renders additional support in drywall ceilings unnecessary.
- Internal Transformer with Selectable Taps

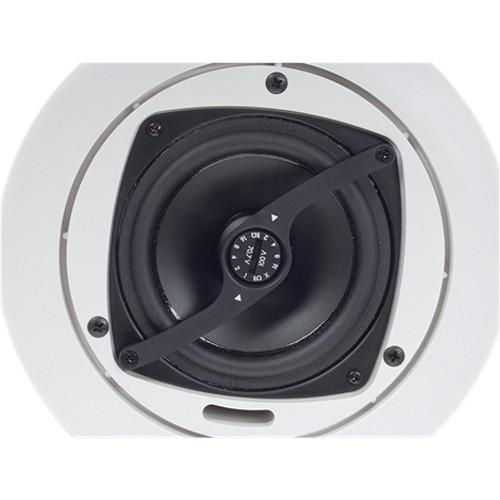

- The 16W internal transformer offers power taps at 1, 2, 4, 8, or 16 watts, as well as an 8-Ohm setting that bypasses the transformer.
- 2-Pole Terminal Strip

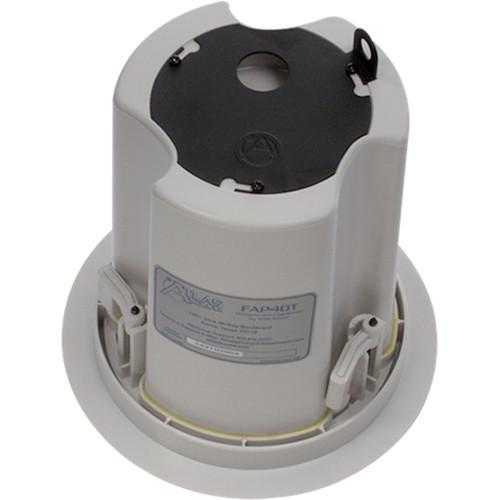

- The 2-pole terminal strip is housed behind a removable metal cover that allows for easy access and daisy-chain capabilities.
- Tile Bridge
- The included tile bridges are designed for use on 2 x 4' or 2 x 2' suspended ceiling tiles.
In the Box Atlas Sound FAP40T Strategy II Series 4" 16W Ceiling Speakers (Pair, White) 2 x Tile Bridges Limited 5-Year Warranty Brochure PDF 333.3kbrzsrzecvedeezxabctrcryvssb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound FAP40T Strategy II Series 4" 16W Ceiling Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound FAP40T Specs | Speaker Type | Passive single-cone driver | | Woofer | 4" / 10.2 cm polypropylene with SBR surround and 1" / 2.5 cm voice coil | | Frequency Response | 100 Hz to 12 kHz (
