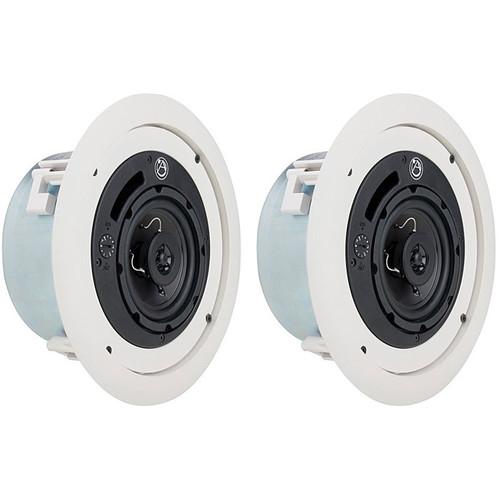

User Manual for Atlas Sound FAP42TC Strategy II 4" 16W Coaxial Low Profile Ceiling System Click to enlarge the picture
Contents of the user manual for the Atlas Sound FAP42TC Strategy II 4"
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
 |
User manual for the Atlas Sound FAP42TC Strategy II 4" contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The pair of AtlasSound FAP42TC Strategy II 4" 16W Coaxial Low Profile Ceiling Speakers combine a pair of coaxial loudspeakers with wide and even coverage and a low profile enclosure, making this an ideal speaker system for limited space applications. It's designed as a ceiling mount, but with a scant 4" depth, it will also work in most stud wall installations.The patent-pending tap selector switch lets users tune their systems with ease. A full selection of taps as well as 16W and an 8 ohms transformer bypass is included to give you even more versatility.The durable high-impact, injection molded plastic is obviously attractive and sturdy but it also features a grill press design, meant to blend effortlessly into contemporary architectural elements. - Extended Bass Response
- The tuned and ported deep drawn galvanized steel enclosure is designed to give the listener an extended bass response for great low frequency audio.
- Aesthetic Exterior

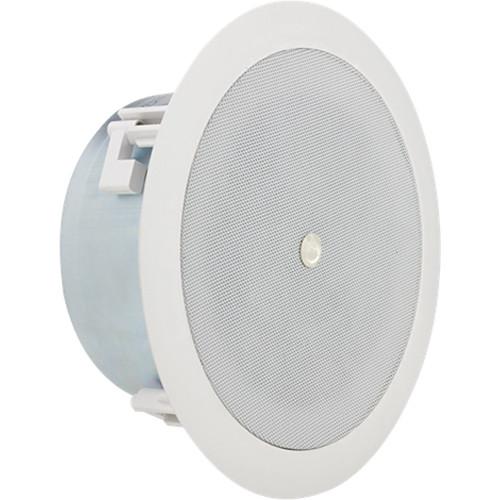

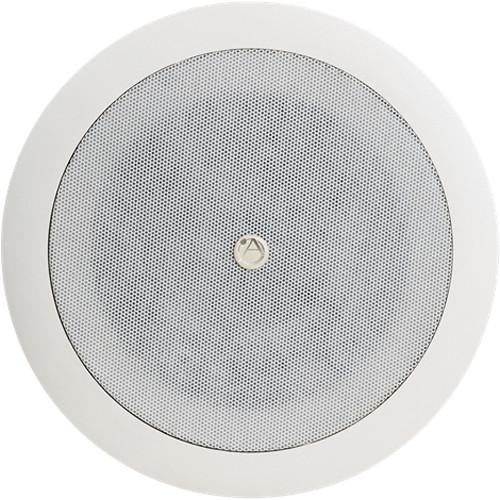

- The low profile enclosure features a press fit grill design that complements modern architectural elements while the high-impact plastic exterior retains its durability.
- 4-Pole Detachable Connector
- The 4-pole detachable phoenix-style connector lets you pre-wire your speaker system and is easily converted for a daisy-chain set up.
- Smooth, Even Coverage

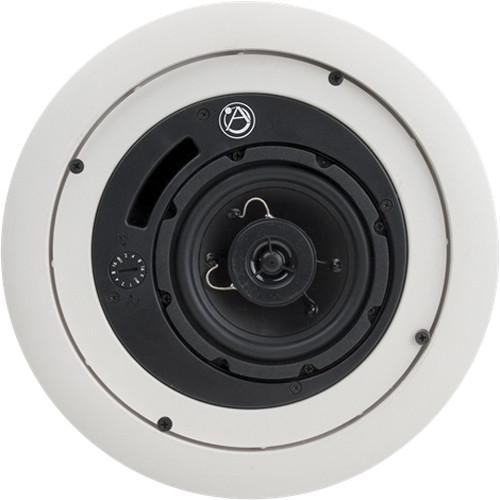

- The polypropolene cone driver with 0.75" PEI tweeter and precision crossover components provides smooth, even coverage.
- Easily Installed
- Possibly the best feature of the FAP42TC is its ease of installation. It works perfectly with drop tile or sheetrock ceilings with the included C-ring/V-rail tile bridge and "dog leg" mounting system.
UPC: 612079181209 In the Box Atlas Sound FAP42TC Strategy II 4" 16W Coaxial Low Profile Ceiling System (Pair) Tile Bridge and Dog Leg Mounting System Installation Instructions 5-Year Warranty Brochure PDF 843.1kbrzsrzecvedeezxabctrcryvssb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound FAP42TC Strategy II 4" 16W Coaxial Low Profile Ceiling System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound FAP42TC Specs | Frequency Response | 75 Hz - 20 kHz | | Power | 16 W | | Power Taps | 1, 2, 4, 8, 16 | | Sensitivity | 88 dB | | Speaker Type | Coaxial | | Depth | 4.5" (10.77 cm) | | Diameter | 10.5" (26.67 cm) | | Weight | 13 lbs (5.9 kg) | | | | Package Weight | 20.65 lb | | Box Dimensions (LxWxH) | 28.0 x 17.5 x 12.0" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
