User Manual for Atlas Sound FAP42TC-UL2043 - Low Depth 4" 70V Ceiling and Wall Mount Speaker Click to enlarge the picture
Contents of the user manual for the Atlas Sound FAP42TC-UL2043 - Low Depth
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
 |
User manual for the Atlas Sound FAP42TC-UL2043 - Low Depth contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

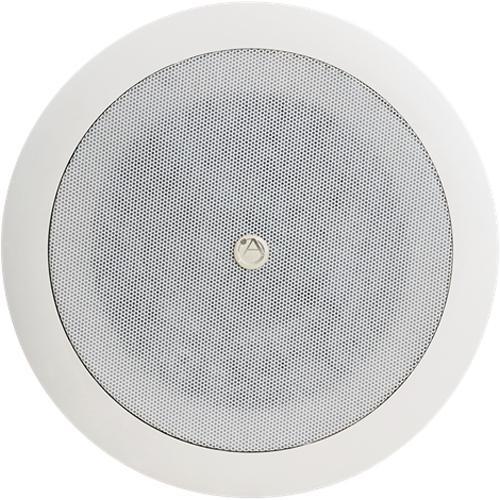

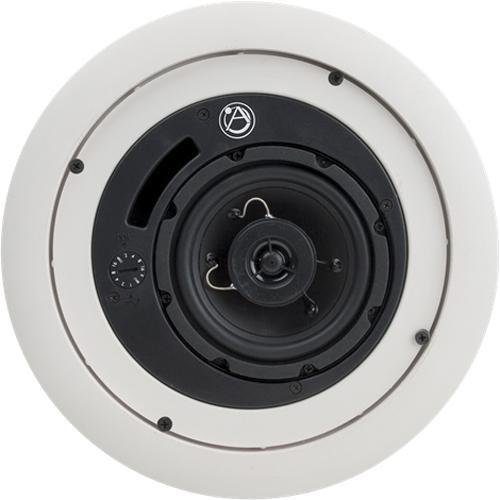

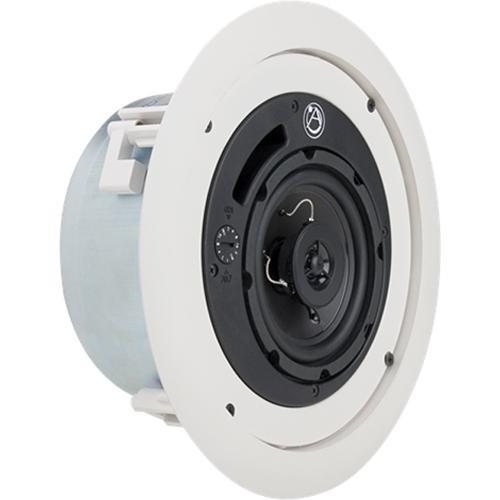

Product description The Atlas FAP42TC-UL2043 Ceiling and Wall Mount Speaker features a 4" low-profile depth for mounting into ceiling tile or sheet-rock. The low clearance makes it possible for installation into ceilings or walls. A 4" full-range driver delivers enhanced reproduction of both music and speech alike.Its 70.7V / 100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output. Phoenix style connector inputs further simplify installation, and the Atlas Sound "C-ring / V-Rail" mounting system is provided for quick installation into drop tile acoustic ceilings and drywall. - 4" depth for low-clearance installation into drywall
- 70.7V / 100V internal transformers
- Press fit grill and mounting kit included

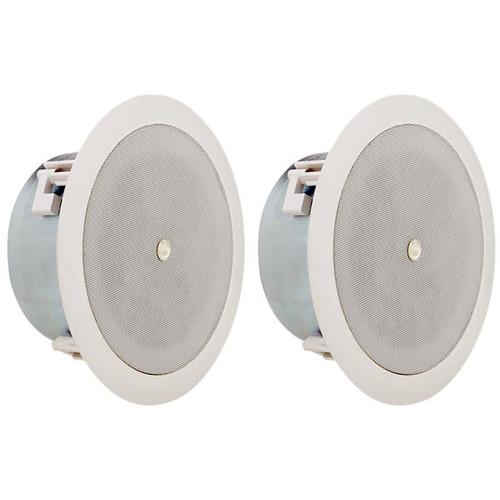

UPC: 612079186266 In the Box Atlas Sound FAP42TC-UL2043 - Low Depth 4" 70V Ceiling and Wall Mount Speaker (Pair) C-Ring / V-Rail Mounting Bridge Dog Leg Mounting System 5 Year Warranty Brochure PDF 316.2kbwbdsvrqerxfrbtxxyqzvfy Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound FAP42TC-UL2043 - Low Depth 4" 70V Ceiling and Wall Mount Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound FAP42TC-UL2043 Specs | Frequency Response | 83Hz - 20kHz | | Maximum Power Handling | 25W
Transformer Taps: 1, 2, 4, 8 & 16W | | Impedance | 8 Ohm Nominal | | SPL | 88dB | | Beamwidth | Not Specified By Manufacturer | | Horizontal Beamwidth | Not Specified By Manufacturer | | Vertical Beamwidth | Not Specified By Manufacturer | | Directivity | Dispersion Angle: 105° | | Construction | Cone: Polypropylene with Butyl Surround | | Magnet | 10 oz (364g) | | Voice Coil | 1.5" (38mm) | | Dimensions | 10.50 x 4.25" (267 x 108mm) | | Weight | Not Specified By Manufacturer | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 28.0 x 17.0 x 12.5" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 01 owners. Add your rating and experience with the product.
