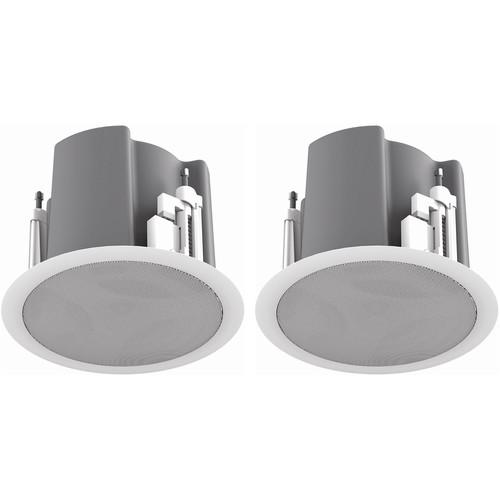

User Manual for Atlas Sound FAP43T-W Strategy III Series 4.5" 70.7 100V-32W Ceiling Loudspeaker Click to enlarge the picture
Contents of the user manual for the Atlas Sound FAP43T-W Strategy III Series
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound FAP43T-W Strategy III Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The white FAP43T-W Strategy III Series 4.5" 70.7/100V-32W Ceiling Loudspeaker from Atlas is a factory assembled loudspeaker that is optimally tuned, ported in an enclosure, and built with a 32W, 70.7/100 V transformer. It can be used in several environments in applications for retail stores, restaurants, recreational facilities, hotels, casinos, and more. A convenient front mounted selector switch allows tap selection without the need to remove the loudspeaker from the ceiling. This switch also has a transformer bypass setting for 8 Ohms direct-coupled operation. In addition, easy installation in drop tile or sheetrock ceilings via the included C-Ring/V-Rail tile bridge. There is a Safety First Mounting System that protects from over-torquing the mounting doglegs during installation and potentially cracking or breaking the mounting system. The result is no install tools required, no over-torqued doglegs, and no rusted screws, and quick installation. In the Box Atlas Sound FAP43T-W Strategy III Series 4.5" 70.7/100V-32W Ceiling Loudspeaker (Pair, White) C-Ring/V-Rail Tile Bridge Quick Release Tool Grill Puller Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound FAP43T-W Strategy III Series 4.5" 70.7 100V-32W Ceiling Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound FAP43T-W Specs | | | Type | Two way, full range, coaxial ceiling loudspeaker | | Operation Mode | Non-powered Passive | | Operating Range | 50 Hz (-10 dB) | | Frequency Response | 60 Hz - 20 kHz (±5 dB) | | Coverage | Vertical: 110° 800 Hz to 4 kHz
Horizontal: 110° 800 Hz to 4 kHz | | Max Input Ratings (8 Ohms) | 50 W continuous, 100 W program
20 V RMS, 40 V momentary peak | | Transformer Taps | 70 V: 32 W, 16 W, 8 W, 4 W and low impedance (8 Ohms)
100 V: 32 W, 16 W, 8 W | | Directivity Characteristic | Q: 9.57 @ 2 kHz
DI: 9.81 @ 2 kHz | | Input Sensitivity | 90 dB (@ 1 W/1 m) | | Max SPL | Passive: 107 dB continuous / 113 dB peak | | Signal Processing | 80 Hz HPF (recommended) | | Amplifier Power | 120 W at 8 Ohms (recommended) | | | | Low Frequency Driver | 1 x 4.5" (11 cm) | | Voice Coil | 1" (2.5 cm) | | High Frequency Driver | 1 x 0.79" (20 mm) | | Maximum Output | 107 dB continuous / 113 dB peak | | Nominal Impedance | 8 Ohms | | Crossover Frequency | 3 kHz | | | | Material of Construction | Enclosure: Powder painted CRS
Grille: Powder painted CRS (RAL9016) paintable
Baffle: UL94V-0 PC
Mount: Zinc-plated CRS | | Input Connection Type | 4-Position phoenix type connector | | Controls | Front-face power taps / low impedance selector switch | | Mounting | Patented safety first mounting system | | Safety Features | 1 x safety hang point | | Safety Rating | UL Listed to comply with UL1480, UL2043 and CSA60065
Suitable for use in air handling spaces per NFPA 70 and NFPA 90 | | Ingress Protection | IP-21 | | Environmental Testing | Humidity: MIL-STD-810G / High and Low Temperature: -4.0 to 158°F (-20 to 70°C) | | Cutout Diameter | 8.19" (208 mm) | | Dimensions (H x W x D) | 9.57 x 9.57 x 7.27" (243 x 243 x 1.84 mm) | | Weight | 6.23 lb / 2.85 kg (unit w/ C-ring)
2.1 lb / 950 g (2V-rails) | | | | Package Weight | 20.0 lb | | Box Dimensions (LxWxH) | 28.0 x 14.0 x 12.0" |
