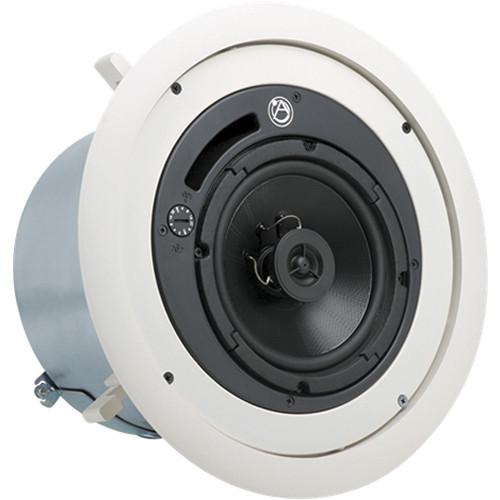

Product description This pair of white Atlas Sound FAP62T Strategy II Series 6" 32W high-sensitivity coaxial ceiling speakers with low-saturation 70.7V / 100V transformers offers clear reproduction of voice and music signals for use in offices, classrooms, and retail shops. The 6" polypropylene cone-type drivers and coaxially mounted tweeters are housed by sturdy metal enclosures, which are tuned and ported for extended low-frequency range. Each FAP62T yields a frequency response of 63 Hz to 20 kHz, with adjustable power output settings ranging from an 8-Ohm transformer bypass to a maximum of 32W at 70.7V. The front-mounted tap selector switch is concealed and protected by a press-fit steel grille. System wiring is accommodated by the detachable 4-pole Euroblock connector, located beneath a conduit access panel. Two C-Ring / V-Rail tile bridge mounting systems—one for each speaker—are included for easy installation in drop tile or sheetrock ceilings. - Extended Bass Response
- The deep-drawn galvanized metal enclosure is tuned and ported to give the listener an extended bass response.
- Sturdy Construction

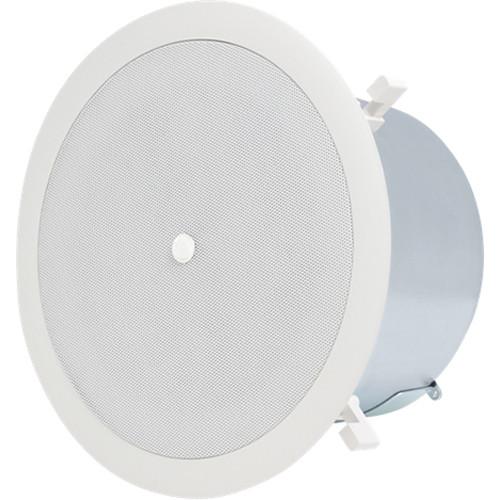

- The speaker is protected by a press-fit steel mesh grille and housed in an 18-gauge metal enclosure.
- Internal Transformer with Selectable Taps
- The 70.7V / 100V internal transformer offers power taps at 2, 4, 8, 16, or 32 watts, as well as an 8-Ohm setting that bypasses the transformer for direct-coupled operation.
- Detachable 4-Pole Connector
- The detachable 4-pole Euroblock (Phoenix-style) connector lets you pre-wire your speaker system and is easily utilized for daisy-chaining.
- "Trap Door" Input Section
- The "trap door" input section accommodates connection of rigid or flexible conduit to the recessed terminal cup.
- Enhanced Transformers
- The enhanced quality of the low-saturation transformer minimizes insertion loss and maintains low-frequency response all while giving you increased output for higher SPL applications.
- Easy Installation
- The FAP62T is easily installed in drop tile or sheetrock ceilings via the included C-Ring / V-Rail tile bridge and "dog leg" mounting system.

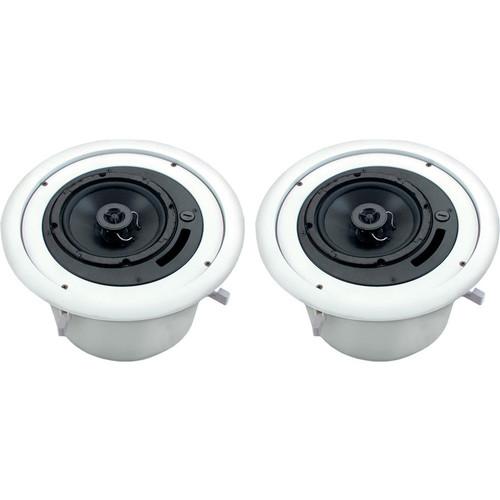

In the Box Atlas Sound FAP62T Strategy II Series 6" 32W Coaxial Ceiling Speakers (Pair, White) 2 x C-Ring / V-Rail Tile Bridge Mounting Systems Limited 5-Year Warranty Brochure PDF 1024kbyqusfxysasytfwyvyuccwws Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound FAP62T Strategy II Series 6" 32W Coaxial Ceiling Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound FAP62T Specs | Speaker Type | Passive coaxial cone-type driver | | Woofer | 6" / 15.2 cm polypropylene cone with butyl rubber surround and 1" / 2.5 cm voice coil | | Tweeter | 0.7" / 1.9 cm PEI dome tweeter | | Dispersion | 110° | | Frequency Response | 63 Hz to 20 kHz (
