User Manual for Atlas Sound FAP82T Strategy II Series 8" 60W Coaxial Ceiling Speakers Click to enlarge the picture
Contents of the user manual for the Atlas Sound FAP82T Strategy II Series
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
 |
User manual for the Atlas Sound FAP82T Strategy II Series contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

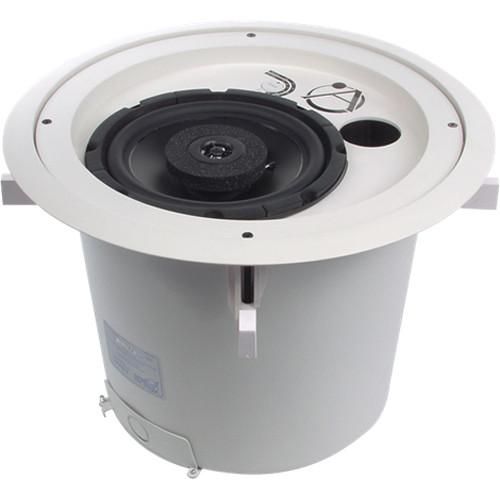

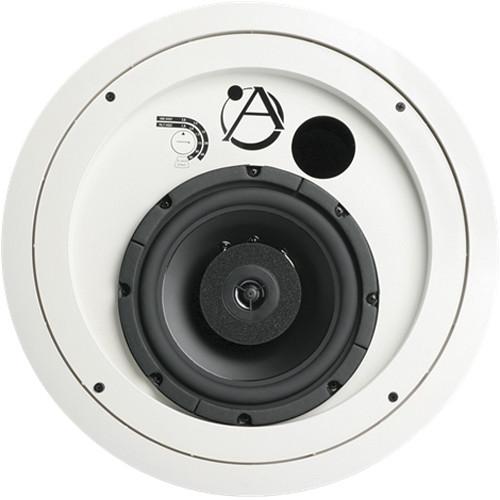

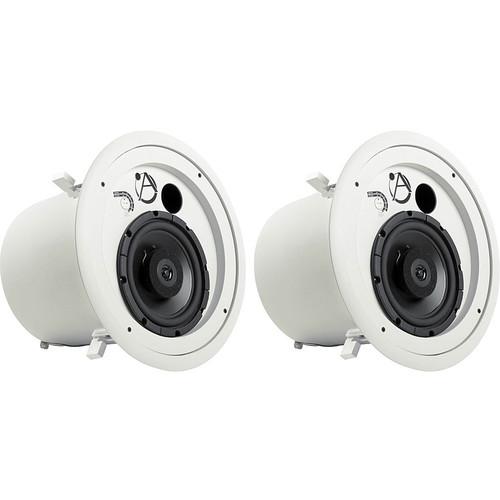

Product description This pair of white Atlas Sound FAP82T Strategy II Series 8" 60W high-sensitivity coaxial ceiling speakers with low-saturation 70.7V / 100V transformers offers clear reproduction of voice and music signals for use in offices, classrooms, and retail shops. The 8" polypropylene cone-type drivers and coaxially mounted tweeters are housed by sturdy metal enclosures, which are tuned and ported for extended low-frequency range. Each FAP82T yields a frequency response of 55 Hz to 20 kHz, with adjustable power output settings ranging from an 8-Ohm transformer bypass to a maximum of 60W at 70.7V. The front-mounted tap selector switch is concealed and protected by a press-fit steel grille. System wiring is accommodated by the detachable 4-pole Euroblock connector, located beneath a conduit access panel. Two C-Ring / V-Rail tile bridge mounting systems—one for each speaker—are included for easy installation in drop tile or sheetrock ceilings. - Extended Bass Response
- The deep-drawn galvanized metal enclosure is tuned and ported to give the listener an extended bass response.
- Sturdy Construction
- The speaker is protected by a press-fit steel mesh grille and housed in an 18-gauge metal enclosure.
- Internal Transformer with Selectable Taps
- The 70.7/100V internal transformer offers power taps at 2, 4, 8, 16, or 32 watts, as well as an 8-Ohm setting that bypasses the transformer for direct-coupled operation.
- Detachable 4-Pole Connector
- The detachable 4-pole Euroblock (Phoenix-style) connector lets you pre-wire your speaker system and is easily utilized for daisy-chaining.

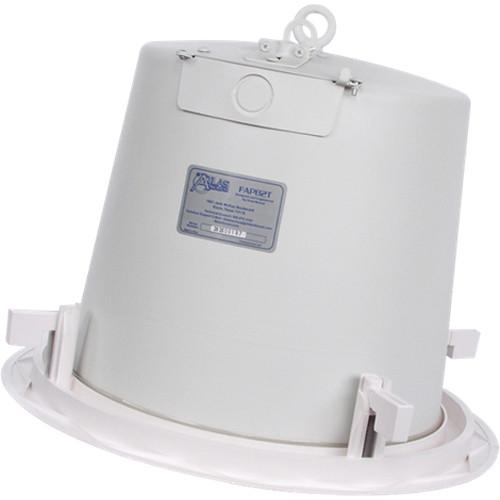

- "Trap Door" Input Section
- The "trap door" input section accommodates connection of rigid or flexible conduit to the recessed terminal cup.
- Enhanced Transformers
- The enhanced quality of the low-saturation transformer minimizes insertion loss and maintains low-frequency response all while giving you increased output for higher SPL applications.
- Easy Installation
- The FAP82T is easily installed in drop tile or sheetrock ceilings via the included C-Ring / V-Rail tile bridge and "dog leg" mounting system.
In the Box Atlas Sound FAP82T Strategy II Series 8" 60W Coaxial Ceiling Speakers (Pair, White) 2 x C-Ring / V-Rail Tile Bridge Mounting Systems Limited 5-Year Warranty Brochure PDF 633.6kbftbduuyscveeetftsa Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound FAP82T Strategy II Series 8" 60W Coaxial Ceiling Speakers in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound FAP82T Specs | Speaker Type | Passive coaxial cone-type driver | | Woofer | 8" / 20.3 cm polypropylene cone with butyl rubber surround and 1.5" / 3.8 cm voice coil | | Tweeter | 0.7" / 1.9 cm PEI dome tweeter | | Dispersion | 100° | | Frequency Response | 55 Hz to 20 kHz (
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 52 owners. Add your rating and experience with the product.
