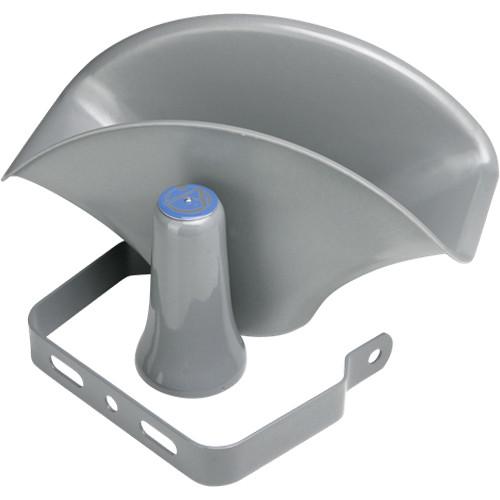

User Manual for Atlas Sound HLE MLE-30 Explosion-Proof Wide Angle Horn Click to enlarge the picture
Contents of the user manual for the Atlas Sound HLE MLE-30 Explosion-Proof Wide
- Product category: Speaker Accessories Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Speaker Accessories
|
User manual for the Atlas Sound HLE MLE-30 Explosion-Proof Wide contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The HLE/MLE-30 Explosion-Proof Wide Angle Horn from Atlas Sound is designed for signal and communications systems in hazardous or combustible environments. It has a polycarbonate projector that creates a 120° x 60° pattern for wide area coverage. - Explosion-proof loudspeakers for signal and communications systems
- Listed by UL and CSA for use in hazardous/combustible environments (noted models)
- Available with internally mounted, factory-installed transformer
- Choice of 60W or 30W high-intelligibility driver in cast aluminum housing
- Efficiency of reflex-style projectors with wide angle or circular sound dispersion
UPC: 612079114269 In the Box Atlas Sound HLE/MLE-30 Explosion-Proof Wide Angle Horn Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound HLE MLE-30 Explosion-Proof Wide Angle Horn in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound HLE/MLE-30 Specs | Power Rating | With HLE-1(T) and HLE-3(T): 60 W continuous
With MLE-1(T) and MLE 3(T): 30 W continuous | | Frequency Response | With HLE-1(T) and HLE-3(T): 250 Hz to 12 kHz
With MLE-1(T) and MLE 3(T): 300 Hz to 14 kHz | | Sound Level | With HLE-1(T) and HLE-3(T): 109 dB
With MLE-1(T) and MLE 3(T): 108 dB | | Sensitivity | With HLE-1(T): -18 dBm
With HLE-3(T): -21 dBm
With MLE-1(T): -16 dBm
With MLE-3(T): -20 dBm | | Dispersion | 120° x 60° | | Impedance | With HLE-1(T) and HLE-3(T): 16 Ω
With MLE-1(T) and MLE 3(T): 8 Ω | | Transformer | With HLE-1(T) and HLE-3(T): 60 W Model T-18
With MLE-1(T) and MLE-3(T): 30 W Model T-20 | | Compatible With | HLE-1, HLE-1T, HLE-3, HLE-3T, MLE-1, MLE-1T, MLE-3, MLE-3T drivers | | Height | 6.00" (15.24 cm) | | Width | 14.00" (35.56 cm) | | Depth | 17.50" (44.45 cm) | | | | Package Weight | 4.1 lb | | Box Dimensions (LxWxH) | 14.75 x 10.0 x 8.5" |
