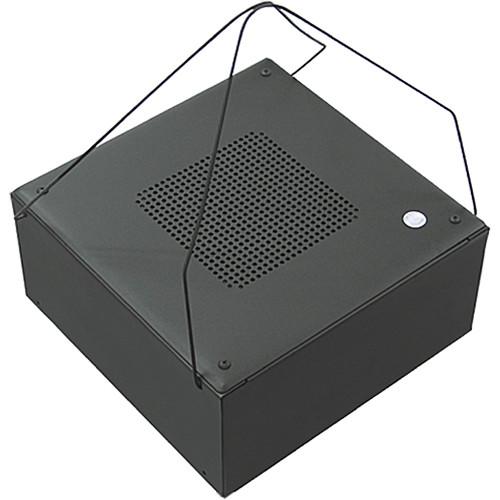

User Manual for Atlas Sound M1000-USA 8" Dual-Cone Sound Masking Speaker Click to enlarge the picture
Contents of the user manual for the Atlas Sound M1000-USA 8" Dual-Cone Sound
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound M1000-USA 8" Dual-Cone Sound contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The M1000-USA 8" Dual-Cone Sound Masking Speaker by Atlas Sound is designed to deliver an adjustable spectrum of sound masking in open office plans. A masking generator (not included) feeds pink noise into an Atlas Sound commercial 70V amplifier (not included), which in turn feeds the M1000-USA masking speaker to produce a random low level sound throughout the coverage area. The result is increased speech privacy and a reduced perceived level of noise.
To ensure ample low frequency response, the M1000-USA masking speaker's 734 cubic inch enclosure houses an 8" dual-cone loudspeaker and a 70.7V transformer. An external selector switch provides a selection of wattage taps ranging from 0.25W to 4W, plus an "off" position, for precise level adjustments. The masking speaker is designed to be installed above suspended ceiling systems or open ceiling spaces and is approved for use in plenum ceilings. Its suspension system features two factory-installed collapsible galvanized hangers configured to allow upward, downward, or horizontal orientation. Typically the M1000-USA is installed with contractor-provided strong ceiling grid suspension wire.
Depending on the size of the area you wish to cover and the level of sound masking you require, various combinations of generators and amplifiers can be used with the M1000-USA. For example, an Atlas ASP-MG24 4 channel masking generator can be connected to an Atlas PA1001G amplifier to power up to about eighty M1000-USA sound masking speakers tapped at 1W. To meet most local code requirements, the M1000-USA includes a termination cover containing both knockouts and a strain relief. This system will allow the use of rigid or flexible conduit, if required, and easily accommodates "through" connections on the removable plate. The M1000-USA is made in the United States. - Provides increased speech privacy and a reduced perceived level of noise
- Pre-assembled unit includes 8" diameter loudspeaker, transformer, enclosure, baffle, and mounting hardware
- Suitable for use above suspended ceiling systems or in open ceiling spaces
- Certified by ETL and meets UL1480 & UL2043 standards for use in air handling (plenum ceilings)
- Complete with snap hanger assembly for quick and easy installation
- Design enables upward, downward, or horizontal orientation
- Input panel includes combination knock-out and strain relief connector to accommodate flexible or rigid conduit
- 734in³ enclosure for extended low frequency response
In the Box Atlas Sound M1000-USA 8" Dual-Cone Sound Masking Speaker Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound M1000-USA 8" Dual-Cone Sound Masking Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound M1000-USA Specs | Voltage | 70.7 VDC | | Wattage | 4 W | | Connectivity | 2 x bare lead wire | | Loudspeaker | 8" dual-cone | | Magnet Weight | 10 oz (260 g) | | Transformer Taps | 0.25, 0.5, 1, 2, 4 W & off | | Enclosure Volume | 734 in³ (12,042 cm³) | | Dimensions (L x W x H) | 11.56 x 11.56 x 5.50" (29.36 x 29.36 x 13.97 cm) | | Weight | 9.0 lb (3.4 kg) | | | | Package Weight | 37.48 lb | | Box Dimensions (LxWxH) | 26.0 x 15.0 x 13.0" |
