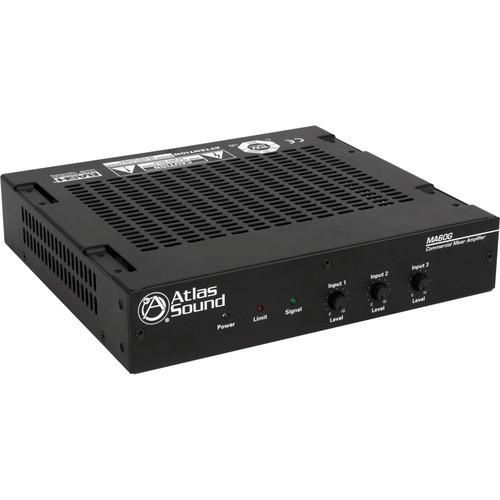

User Manual for Atlas Sound MA60G 60W 3-Channel Mixer Amplifier Click to enlarge the picture
Contents of the user manual for the Atlas Sound MA60G 60W 3-Channel Mixer
- Product category: Mixer/Amplifiers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Mixer/Amplifiers
 |
User manual for the Atlas Sound MA60G 60W 3-Channel Mixer contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

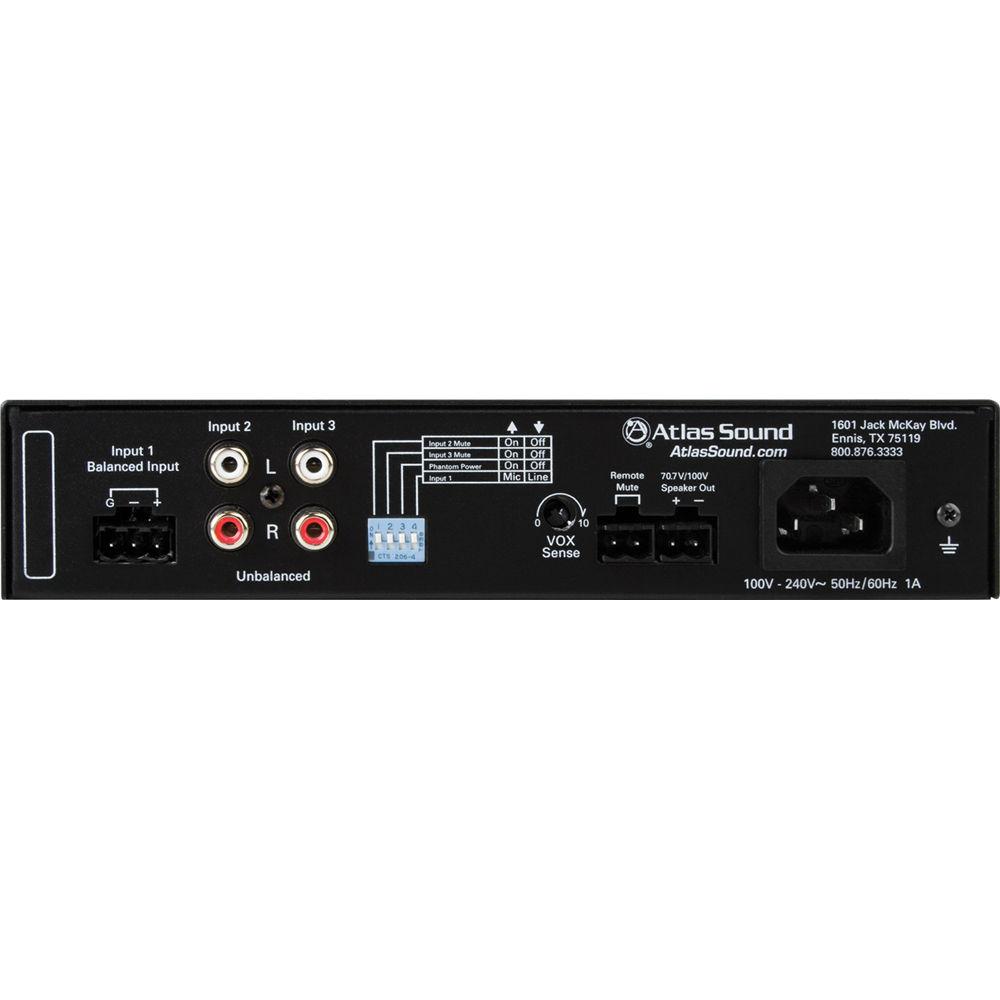

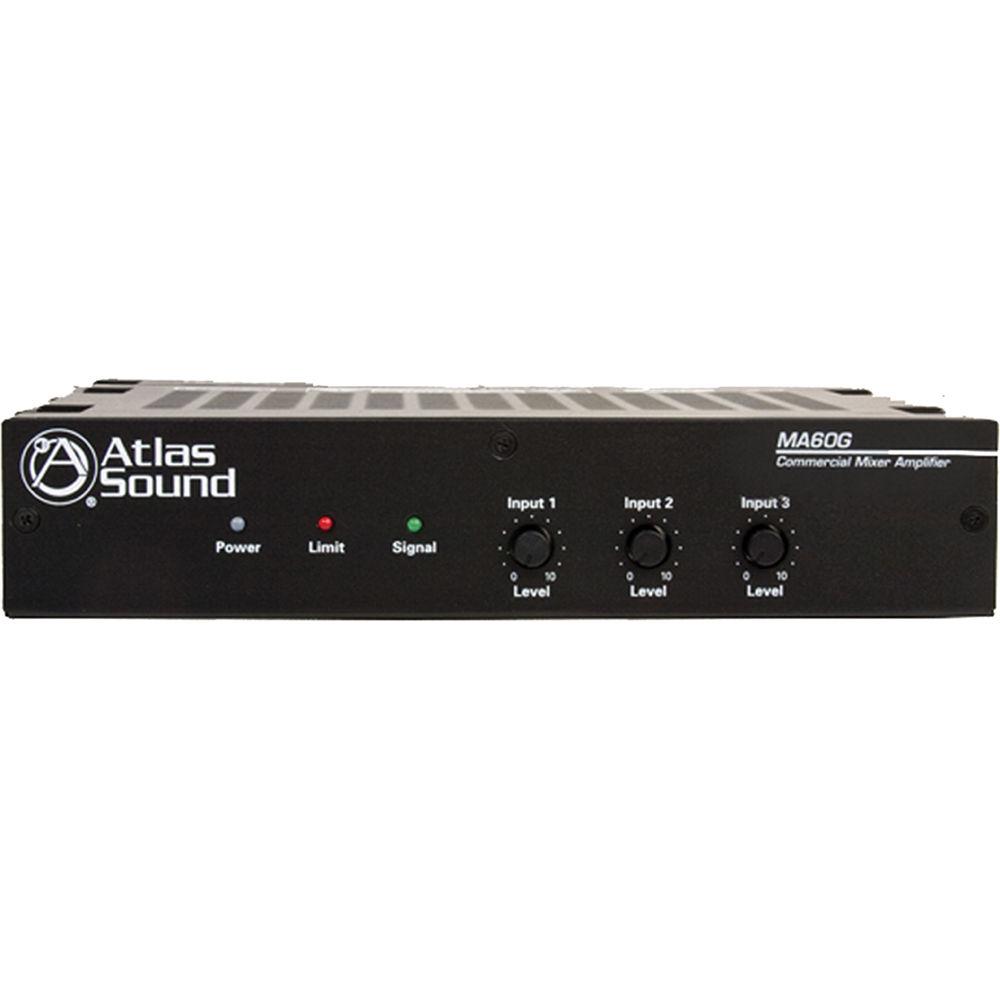

Product description The MA60G 60W 3-Channel Mixer Amplifier from Atlas Sound is designed for distributed business paging and background music (BGM) systems, and small to medium speech privacy systems. It provides 60 watts into a 70.7V/100V line and has three total inputs including a balanced mic/line input featuring phantom power and variable mute sensitivity control as well as two unbalanced, summing line level inputs.
Additional features include removable level controls with set-it-and-forget-it security cover, contact closure mute terminals, and a global power supply. - One Balanced Mic/Line/Tel Input with Phantom Power
- 2 Unbalanced, Summing Line Level Inputs
- Variable VOX Mute Sensitivity Control for Input 1
- Contact Closure Mute Terminals
- Global Power Supply, 100VAC-240VAC ~ 50/60Hz
UPC: 612079187102 In the Box Atlas Sound MA60G 60W 3-Channel Mixer Amplifier Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound MA60G 60W 3-Channel Mixer Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound MA60G Specs | Power Output | 60 W @ 70.7 V (83 Ω)
60 W @ 100 V (166 Ω) | | Frequency Response | 50 Hz to 20 kHz | | THD + N | 0.5% or Less @ 1 kHz, Rated Output | | Sensitivity | Input 1 Mic: 0.316~3.16 mV (-50 ~ -30 dBV)
Line Input: 500 mV (600 Ω)
Inputs 2/3 RCA: 500 mV (10 kΩ) | | Output Regulation | Less Than 2 dB, No Load to Full Load | | Signal to Noise Ratio | Mic: >55 dB
Line: >55 dB
Input 2/3: >55 dB | | Indicators | Power, Signal, Limit | | Power Consumption | Idle: 8 W, 0.075 A, 27 BTU
Average: 34 W, 0.41 A, 116 BTU
Maximum: 102 W, 1.25 A, 348 BTU | | Fuse | T1 A | | Dimensions (H x W x D) | 1.75 x 8.5 x 7.81" (44 x 216 x 198 mm) | | Weight | 2.9 lb (1.32 kg) | | | | Package Weight | 19.0 lb | | Box Dimensions (LxWxH) | 11.75 x 10.5 x 3.75" |
