Atlas Sound MAGPIE2-2 Atlas Learn Dual

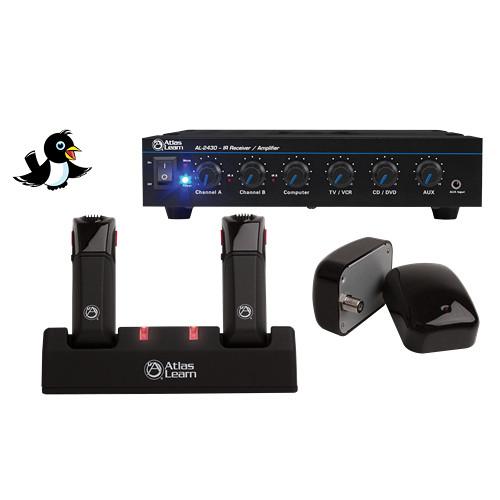

User Manual for Atlas Sound MAGPIE2-2 Atlas Learn Dual Magpie Wireless Microphone System

• Product category: Assistive Listening Systems Atlas Sound
• Brand: Atlas Sound
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Atlas Sound Assistive Listening Systems

Product description

• AL MAGPIE Wireless Infrared Microphone/ Transmitter The AL-MAGPIE Wireless Infrared Microphone/Transmitter by Atlas Sound is for capturing audio in sound reinforcement. It is designed for use in higher education facilities, or where a room constrained public address systems is required. When used in conjunction with the AL-2430 amplifier/receiver (sold separately), it allows the teacher and students to walk freely around the room with the infrared microphones/system control units, and project their voices through installed speakers. The AL-MAGPIE microphone performs the functions of a wireless microphone and a system remote control. Each wireless microphone has a volume control for adjusting the volume of that microphone relative to the user's voice allowing it to be adjusted up or down so that the speaker can be clearly heard and understood. Each AL-MAGPIE can be set to either A or B. One AL-MAGPIE must be set to Channel A and the other AL-MAGPIE must be set to Channel B. The MAGPIE includes Mode, Volume, and Panic controls that are fully functional in teacher mode, but will be locked out when configured for student mode. A rechargeable battery is included.
  • • Soft-touch-control microphone-level adjustment
    • Wireless infrared transmission
    • Optional "Student" mode
    • Integrated "Panic" trigger for emergency notification
    • Breakaway lanyard included
    • 3.5mm input for optional headset, collar, or lapel microphone
    • 3.67V long-life rechargeable battery provides over 8 hours of use between charges
  UPC: 612079188406
• AL-MAGPIE-NEST Charging Station for use with AL-MAGPIE Wireless Transmitters The AL-MAGPIE-NEST Charging Station by Atlas Sound is for charging the AL-MAGPIE wireless infrared microphones. It can be used as a low profile charging system that is designed to be desk or shelf mounted for easy access. The unit can charge up to two AL-MAGPIE wireless microphones at the same time. Charging status is indicated by the LED located next to each charging position. Red indicates that the unit is charging and green indicates the unit is fully charged and ready to be used. AL-MAGPIE-NEST includes the charging station and power supply. AL-MAGPIE microphones are sold separately. UPC: 612079188437
• AL-IRDS IR Dome Sensor for AL2430 Atlas Learn System The AL-IRDS from Atlas Sound is an infrared dome sensor designed for use with the AL2430 Atlas Learn receiver/amplifier. A pair of domes are included with the AL2430 system, but up to 3 domes may be utilized. This product allows you to add a third dome to your AL2430. The dome offers a 150' receiving range with a 120° receiving angle. Note: You must already have an AL2430 system to use this product.
  • Allows you to add a third receiver dome to your AL2430 system
  • Offers a 150' receiving range with a 120° receiving angle
  UPC: 612079186808
• AL2430 Integrated Infrared Receiver and System Amplifier The AL2430 Atlas Learn Integrated Infrared Receiver and System Amplifier by Atlas Sound is for in-classroom sound reinforcement. It is designed for use in K-12 and higher education facilities, or where a room constrained public address system is required. This amplifier/receiver is designed to work with Atlas Learn wireless infrared microphones, AL-MAGPIE and AL-MYNA, (sold separately), to allow teachers and students to walk freely around the room with the infrared microphones / system control units and project their voices through installed speakers. The front of the AL2430 unit features a main power switch as well as volume controls for two microphones (A and B), as well as four other external audio sources like Computer, TV, CD, or Auxiliary audio. The rear panel of the AL2430 has connections and adjustments needed to set up the Atlas Learn system in any size classroom. The AL2430 can support up to three infrared (IR) domes (sold separately) that receive the signal from the wireless microphones and transmit that signal back to the amplifier for playing through speakers in the classroom. Additionally the AL2430 has equalization adjustments for the microphones to optimize their sound quality, a priority page input that allows the local audio to be overridden when a page is initiated by the administration, and a line output for connection to an external amplifier, recording device, or hearing assistance system based on the classroom requirements. The versatility of the AL2430 receiver/amplifier makes it a high quality classroom amplification system.
  • Front panel source volume control
  • Can supports up to three infrared wireless transmitters
  • Works with both Atlas Learn AL-MAGPIE and AL-MYNA wireless infrared microphones
  • Features equalization adjustments for the microphones to optimize their sound quality
  • Has a priority page input that allows the local audio to be overridden when a page is initiated by the administrator

• Breakaway Lanyard

• Rechargeable Battery

• Limited 1-Year Warranty

• 5 V DC Power Adapter

• Limited 90-Day Warranty

• Connection Cable

• 3-Year Limited Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AL MAGPIE Wireless Infrared Microphone/ Transmitter

  Number of IR LED's	6
  AUX Input	1x 1/8" (3.5 mm) mini-jack, mic level
  External Controls	Power, panic, mic volume
  Internal Controls	Lockout, mic A/B channel
  Battery	Rechargeable Battery: EEMB CO. TYPE LIR17500 (3.7 V) 1100 mAh
  Dimensions (L x W x H)	1.2 x 1.0 x 3.8" (29 x 25 x 97 mm)
  Weight	2.3 oz (65 g) with batteries 1.3 oz (36 g) without batteries

  Box Dimensions (LxWxH)	8.0 x 6.0 x 2.0"

• AL-MAGPIE-NEST Charging Station for use with AL-MAGPIE Wireless Transmitters

  Ports	Two charging ports
  LED Charge Indicators	2
  Power Type	100 to 240 VAC, 50/60 Hz, 0.2A, 5 VDC, 1A
  Dimensions (H x L x W)	1.8 x 6.5 x 2.8" (45 x 165 x 70 mm)
  Weight	Not listed by manufacturer

  Box Dimensions (LxWxH)	9.0 x 8.0 x 3.0"

• AL-IRDS IR Dome Sensor for AL2430 Atlas Learn System

  LEDs	6
  Mounting	Screw Type
  Cable	32.8' (10 m) UL Listed, F-Style Termination, RG6 Type
  Range	150' (45.5 m) (Line of Sight, Dependent on Ambient Light)
  Angle of View	120°

  Box Dimensions (LxWxH)	7.4 x 4.4 x 1.0"

• AL2430 Integrated Infrared Receiver and System Amplifier

  Input Sensitivity	Multimedia: -10 dB Priority Page: 14 dB
  Impedance	Computer Input: 56 kOhms Multimedia Input: 22 kOhms
  Connector Type	Multimedia Input: Dual RCA
  Aux	Front Input: 1/8" (3.5 mm)
  Line Output Impedance	1 kOhms
  Voltage	Line Output: 1.3 V
  Output Connector	Line: Dual RCA
  Equalization	Mic (100 Hz, 3 kHz, & 10 kHz) Adjustment: ±10 dB
  Input Impedance	IR: 75 ohms
  Input Connector	Impedance: F connector
  Panic Output Contact Rating	5 A @ 36 V
  Speaker Output	30 W RMS @ 8 ohms, 25 V or 70.7 V
  Supported PSU Type	100 V to 240 V In, 24 VDC / 2.5 A Out
  Dimensions (H x W x D)	1.8 x 8.5 x 13.5" (45 x 216 x 343 mm)
  Weight	5.75 lb (2.6 kg)
