Product description

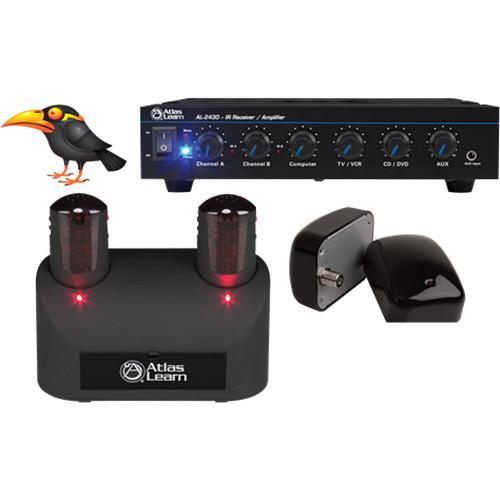

• AL2430 Integrated Infrared Receiver and System Amplifier The AL2430 Atlas Learn Integrated Infrared Receiver and System Amplifier by Atlas Sound is for in-classroom sound reinforcement. It is designed for use in K-12 and higher education facilities, or where a room constrained public address system is required. This amplifier/receiver is designed to work with Atlas Learn wireless infrared microphones, AL-MAGPIE and AL-MYNA, (sold separately), to allow teachers and students to walk freely around the room with the infrared microphones / system control units and project their voices through installed speakers. The front of the AL2430 unit features a main power switch as well as volume controls for two microphones (A and B), as well as four other external audio sources like Computer, TV, CD, or Auxiliary audio. The rear panel of the AL2430 has connections and adjustments needed to set up the Atlas Learn system in any size classroom. The AL2430 can support up to three infrared (IR) domes (sold separately) that receive the signal from the wireless microphones and transmit that signal back to the amplifier for playing through speakers in the classroom. Additionally the AL2430 has equalization adjustments for the microphones to optimize their sound quality, a priority page input that allows the local audio to be overridden when a page is initiated by the administration, and a line output for connection to an external amplifier, recording device, or hearing assistance system based on the classroom requirements. The versatility of the AL2430 receiver/amplifier makes it a high quality classroom amplification system.
  • Front panel source volume control
  • Can supports up to three infrared wireless transmitters
  • Works with both Atlas Learn AL-MAGPIE and AL-MYNA wireless infrared microphones
  • Features equalization adjustments for the microphones to optimize their sound quality
  • Has a priority page input that allows the local audio to be overridden when a page is initiated by the administrator
• AL-MYNA Wireless Infrared Microphone/Transmitter When you need a PA system for a room, the AL-MYNA Wireless Infrared Microphone/Transmitter by Atlas Sound can perform the functions of a wireless microphone and a system remote control. It is designed for use in K-12 and higher education facilities, or where a room constrained public address systems is required. When used in conjunction with the AL-2430, amplifier/receiver, (sold separately), it allows the teacher and students to walk freely around the room with the infrared microphones/system control units, and project their voices through installed speakers. The AL-MYNA microphone can be used as a handheld microphone, a lapel microphone with included lanyard, or a belt pack microphone with optional headset microphone. Each AL-MYNA has a switch located under the battery door used to set its IR Channel to either A or B. One AL-MYNA must be set to Channel A and the other AL-MYNA must be set to Channel B. The AL-MYNA includes Mode, Volume, and Panic controls that are fully functional in teacher mode, but will be locked out when configured for student mode.
  • Operates using 2 AA rechargeable batteries
  • Keeps teachers voices healthy and sustainable
  • Integrated Panic trigger for emergency notifications
  • Provides input for optional headset, collar, or lapel microphone
  UPC: 612079186730
• AL-MYNA-NEST Charging Station for AL-MYNA Wireless Transmitters The AL-MYNA-NEST Charging Station by Atlas Sound is for charging Atlas Learn Al-Myna wireless infrared microphones. The unit can charge up to two wireless microphones at the same time. Charging status in indicated by the LED located next to each charging position. Red indicates that the unit is charging and green indicates the unit is fully charged. Furthermore, the unit can charge two additional sets of rechargeable batteries in the front battery storage compartment, so you always have charged batteries on hand. A power supply is included.
• AL-IRDS IR Dome Sensor for AL2430 Atlas Learn System The AL-IRDS from Atlas Sound is an infrared dome sensor designed for use with the AL2430 Atlas Learn receiver/amplifier. A pair of domes are included with the AL2430 system, but up to 3 domes may be utilized. This product allows you to add a third dome to your AL2430. The dome offers a 150' receiving range with a 120° receiving angle. Note: You must already have an AL2430 system to use this product.
  • Allows you to add a third receiver dome to your AL2430 system
  • Offers a 150' receiving range with a 120° receiving angle
  UPC: 612079186808

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Power Supply

• Limited 90-Day Warranty

• Connection Cable

• 3-Year Limited Warranty

Also Includes

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• AL2430 Integrated Infrared Receiver and System Amplifier

  Input Sensitivity	Multimedia: -10 dB Priority Page: 14 dB
  Impedance	Computer Input: 56 kOhms Multimedia Input: 22 kOhms
  Connector Type	Multimedia Input: Dual RCA
  Aux	Front Input: 1/8" (3.5 mm)
  Line Output Impedance	1 kOhms
  Voltage	Line Output: 1.3 V
  Output Connector	Line: Dual RCA
  Equalization	Mic (100 Hz, 3 kHz, & 10 kHz) Adjustment: ±10 dB
  Input Impedance	IR: 75 ohms
  Input Connector	Impedance: F connector
  Panic Output Contact Rating	5 A @ 36 V
  Speaker Output	30 W RMS @ 8 ohms, 25 V or 70.7 V
  Supported PSU Type	100 V to 240 V In, 24 VDC / 2.5 A Out
  Dimensions (H x W x D)	1.8 x 8.5 x 13.5" (45 x 216 x 343 mm)
  Weight	5.75 lb (2.6 kg)

• AL-MYNA Wireless Infrared Microphone/Transmitter

  Number of IR LED's	6
  AUX Input	1x 1/8" (3.5 mm) mini-jack, mic level
  External Controls	Power, panic, mic volume
  Internal Controls	Lockout, mic A/B channel
  Indicator LEDs	Mode: 2 blue Lockout: 1 red Power/Battery: 1 Green/Red
  Dimensions (L x W x H)	5.25 x 1.75 x 1.15" (133 x 44 x 29 mm)
  Weight	4.23 oz (120 g) with batteries 2.1 oz (60 g) without batteries

• AL-MYNA-NEST Charging Station for AL-MYNA Wireless Transmitters

  Ports	Two charging ports
  LED Charge Indicators	4 (red - charging; green - charged)
  Power Type	120 V input, 9 VDC, 1A output
  Dimensions (W x L x H)	4.17 x 7.44 x 2.75" (106 x 189 x 70 mm)
  Weight	Not listed by manufacturer

• AL-IRDS IR Dome Sensor for AL2430 Atlas Learn System

  LEDs	6
  Mounting	Screw Type
  Cable	32.8' (10 m) UL Listed, F-Style Termination, RG6 Type
  Range	150' (45.5 m) (Line of Sight, Dependent on Ambient Light)
  Angle of View	120°

  Box Dimensions (LxWxH)	7.4 x 4.4 x 1.0"

Rating
