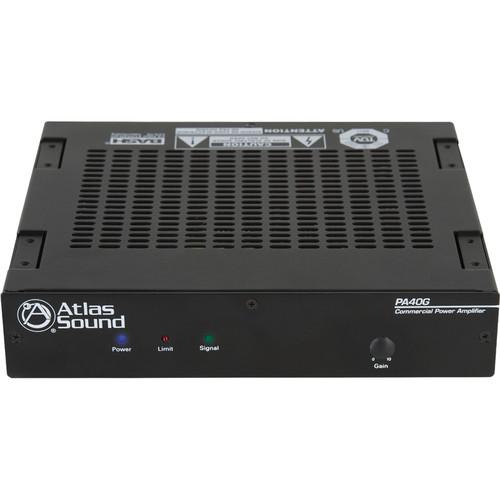

User Manual for Atlas Sound PA40G 40W Single-Channel Power Amplifier with Global Power Supply Click to enlarge the picture
Contents of the user manual for the Atlas Sound PA40G 40W Single-Channel Power
- Product category: 70-Volt Amplifiers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound 70-Volt Amplifiers
 |
User manual for the Atlas Sound PA40G 40W Single-Channel Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

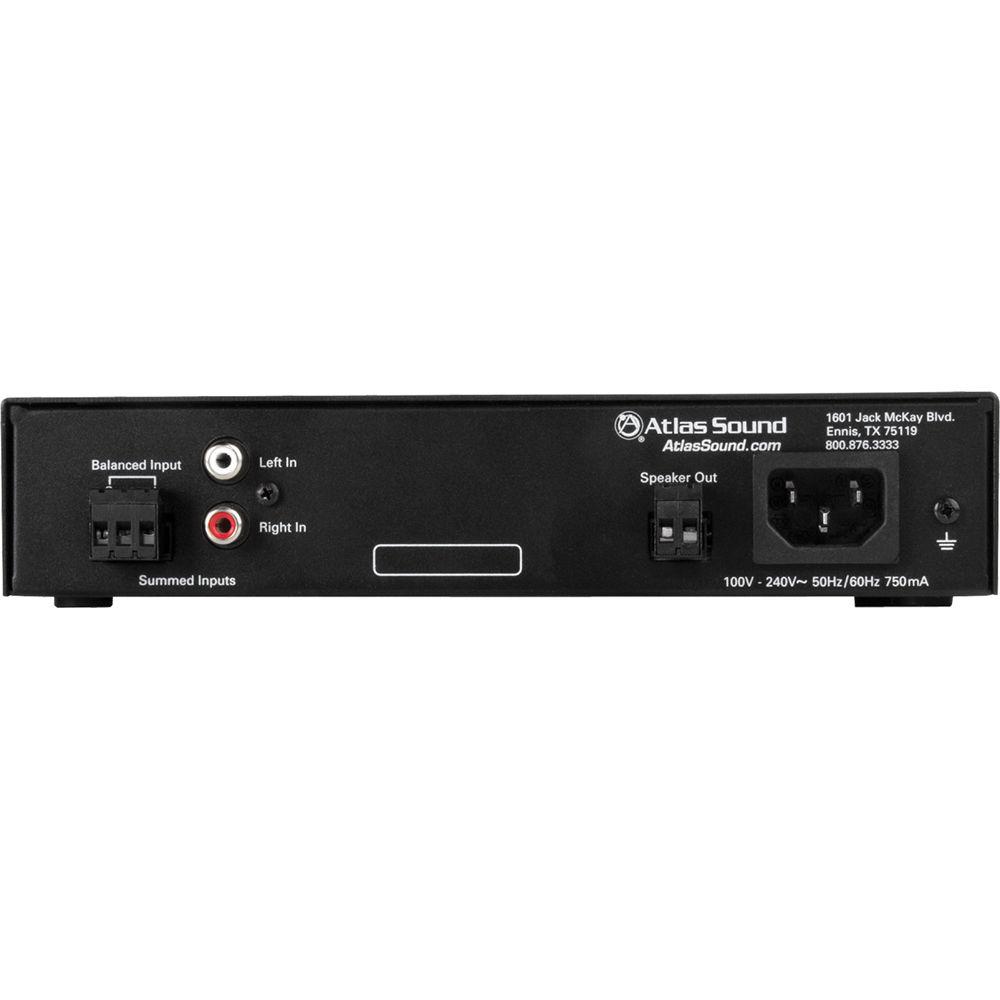

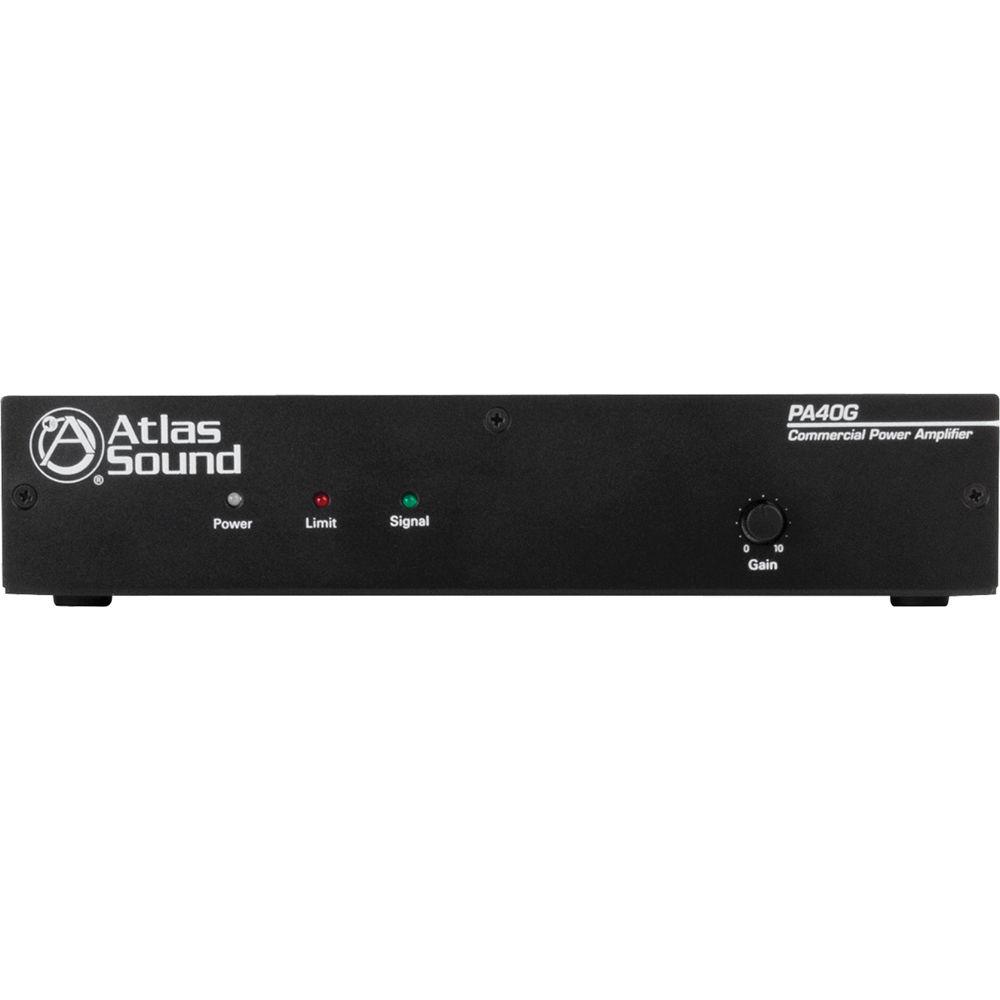

Product description The small and compact Atlas Sound PA40G 40W Single-Channel Power Amplifier with Global Power Supply is a professional-quality single-channel power amplifier well suited for distributed business paging, background music (BGM) systems, and medium to small speech privacy systems. The amplifier provides 40W into a 70.7/100V line and has a balanced line level input via a phoenix connector and a summing unbalanced RCA input. The amplifier's output is to 70.7/100V speaker lines via a phoenix connector and additional features include status LEDs, removable level controls with security cover, and a global (100 to 240 VAC) power supply. -
- 1 x balanced line input
- 1 x unbalanced, summing line level input
- Global Power Supply: 100 to 240 VAC, 50/60 Hz
- Removable level control with set it and forget it security cover
- Compact 1 RU, 1/2 rack
- Optional rackmount kit
UPC: 612079187072 In the Box Atlas Sound PA40G 40W Single-Channel Power Amplifier with Global Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound PA40G 40W Single-Channel Power Amplifier with Global Power Supply in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound PA40G Specs | Type | Commercial Amplifier | | Frequency Response | 50 Hz to 20 kHz | | Connector Type | Phoenix and RCA | | THD + N | 0.5% or Less @ 1 kHz, rated output | | Sensitivity | Line Input: 500 mV (600 Ohms)
RCA: 500 mV (10 kOhms) | | Output Regulation | Less than 2 dB, (no load to full load) | | Signal to Noise Ratio (SNR) | Balanced Input: >55 dB
Unbalanced RCA Summed: >55 dB | | Indicators | Power, signal, limit | | Controls | Input 1 gain | | Power Output | 40 W @ 70.7 V (125 Ohms), 40 W @ 100 V (250 Ohms) | | Power Input | 100 to 240 VAC, 50/60 Hz | | Power Consumption | Idle: 0.075 A, 8 W, 27 BTU
Average: 0.26 A, 24 W, 81 BTU
Max: 0.8 A, 71 W, 242 BTU
Average power consumption is based on 1/3 of the maximum power rating, 50% duty cycle | | Fuse | T630mA | | Listings | Safety Listings: TUV UL60065 Standard, CE, Class 3 rated | | Dimensions (H x W x D) | 1.75 x 8.50 x 7.81" / 44.45 x 215.90 x 198.37 cm | | Weight | 2.9 lb (1.3 kg) | | | | Package Weight | 4.35 lb | | Box Dimensions (LxWxH) | 11.732 x 10.472 x 3.701" |
