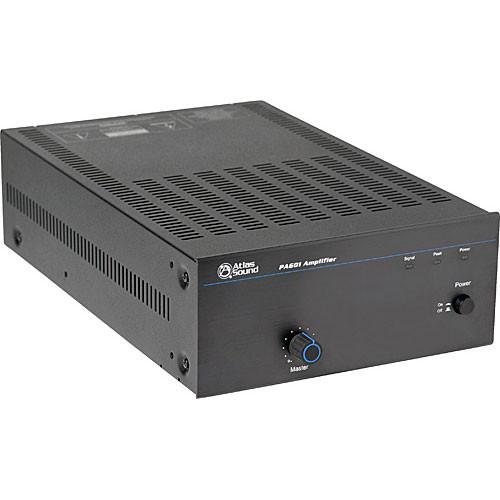

User Manual for Atlas Sound PA601 60W Single-Channel Power Amplifier Click to enlarge the picture
Contents of the user manual for the Atlas Sound PA601 60W Single-Channel Power
- Product category: Standard Amplifiers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Standard Amplifiers
|
User manual for the Atlas Sound PA601 60W Single-Channel Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The PA601 from Atlas is a high-quality, rack-mountable 60W power amplifier ideal for use in distributed background music systems where all that's needed is amplification, without extra music-on-hold or mixing functionality. This compact unit offers a simple, intuitive interface, with the front panel sporting a power switch and a level control for the single input.
The rear panel has a phoenix-type connector for accepting a balanced line input. Unbalanced RCA connectors are provided for line in and out signals. A screw terminal strip allows you to connect professional loudspeakers. A voltage selector switch on the rear panel ensures that you can use the amplifier in multiple countries. UPC: 612079183234 In the Box Atlas Sound PA601 60W Single-Channel Power Amplifier Power Cord Limited 1-Year Warranty Guides & Manuals cxyxxqcvyzuvrxrfrv Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound PA601 60W Single-Channel Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Atlas Sound PA601 60W Single-Channel Power Amplifier can be downloaded in PDF format at the link stated below.
Technical parametersAtlas Sound PA601 Specs | Power Output | Max. Average Power @ 50 Hz to 20 kHz with .5% THD (10 to 80 kHz Filter) 8 Ohms, 1 kHz, 0.5% THD: 60 W (RMS) | | Transformer Outputs | 4 Ohms: 60 W RMS
70 V: 60 W RMS
100 V: 60 W RMS | | Frequency Response | 50 Hz to 20 kHz | | THD + N | 0.5% or Less @ 1 kHz, Rated Output
0.1% or Less @ 1 kHz, 5 W Output | | Sensitivity | Balanced Line (Phoenix) 500 mV, 20 kOhms
Unbalanced (RCA) 500 mV, 20 kOhms | | Signal to Noise Ratio | >55 dB, Balanced
>75 dB, Unbalanced | | Connectors | 1 x Power Input
1 x Line-Level Phoenix Input, Balanced
1 x Line-Level RCA Input, Unbalanced
1 x Line-Level RCA Output, Unbalanced
1 x Screw Terminal Strip Loudspeaker Output | | Dimensions (H x W x D) | 3.7 x 8.3 x 14.0" / 9.4 x 21.1 x 35.6 cm | | Weight | 14.0 lb / 6.4 kg | | | | Package Weight | 17.85 lb | | Box Dimensions (LxWxH) | 17.5 x 12.0 x 8.0" |
