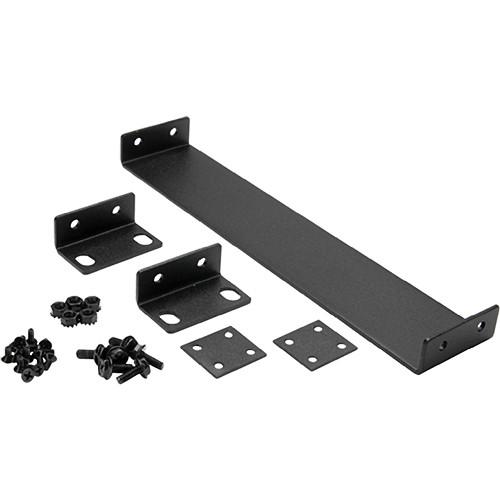

User Manual for Atlas Sound PA702-RMK Rack Mount Kit for PA702 Amplifier Click to enlarge the picture
Contents of the user manual for the Atlas Sound PA702-RMK Rack Mount Kit
- Product category: Mounts & Brackets Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Mounts & Brackets
|
User manual for the Atlas Sound PA702-RMK Rack Mount Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The Atlas Sound PA702-RMK Rack Mount Kit for PA702 Amplifier provides a mounting solution for the PA702, PA702-W, PA1001G, MA40G, MA60G, PA40G, PA60G, and AL2430 amplifiers. The kit can mount up to 2 amplifiers side-by-side in an industry standard 19” equipment rack. It comes with 2 connector plates to secure the 2 units together, ensuring a secure mount and front panel alignment when they are mounted side-by-side. - For the PA702, PA702-W, PA1001G, MA40G/MA60G, PA40G/PA60G, and AL2430 amplifiers
- Attractive black finish to match amplifier
- Convenient kit includes hardware
- Hardware included to mount two PA702s in a 19" rack
UPC: 612079184453 In the Box Atlas Sound PA702-RMK Rack Mount Kit for PA702 Amplifier 2 x Rack Ear 4 x Rack Ear Chassis Screw Rack Extension Plate for Single Unit Mounting 2 x Screw to Combine Extension Plate to Rack Ear 2 x Nut for Screw to Secure Screw to Extension Plate and Rack Ear 2 x Top Joiner Plate 8 x Top Joiner Plate Screw 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound PA702-RMK Rack Mount Kit for PA702 Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound PA702-RMK Specs | Height | 1 RU, 1.75" (44.45 mm) | | Compatible | Amplifiers: PA702, PA702-W, PA1001G, MA40G, MA60G, PA40G, PA60G, & AL2430
Note: It is important that the amplifiers have the proper clearance around it for proper heat dissipation. Always allow at least 1.75" (44.45 mm) around the amplifier for to assure safe operation.
Note: Never mount an amplifier in an enclosed air-tight rack. All racks must have air vents on all sides or forced air cooling to assure proper heat dissipation. | | | | Package Weight | 0.76 lb | | Box Dimensions (LxWxH) | 10.25 x 4.7 x 1.4" |
