User Manual for Atlas Sound PD-30T Compression Driver with 70.7V-30W Transformer Click to enlarge the picture
Contents of the user manual for the Atlas Sound PD-30T Compression Driver with
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound PD-30T Compression Driver with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

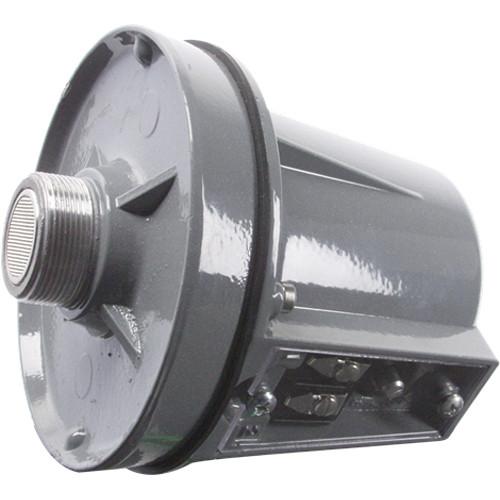

Product description The PD-30T Compression Driver with 70.7V/30W Transformer from Atlas Sound is a fully environment-resistant compression driver for indoor or outdoor applications that is suitable for use in expansive and/or high-ambient sound-level areas. The unit has a power rating of 30W, a 1.5" voice coil, and a plane wave frequency response of 300 to 3,900 Hz (+5 dB). The transformer-equipped PD-30T incorporates the Atlas Sound Vari-Tap Control/Connect Center with a screwdriver selectable Ω/W switch.The integral 70V line matching transformer is varnish impregnated for maximum environment resistance and life expectancy. It also includes a protective terminal cover with built-in strain relief to assure secure cable connection. The PD-30T is terminated in standard 1-3/8"-18" thread male couplings for use with screw-on horns. - Environment-resistant construction for indoor/outdoor use
- Extended frequency response range for optimum intelligibility
- High sound reproduction and power-handling for signaling, music, and public address systems
- BX-1A conduit adapter compatible
UPC: 612079117116 In the Box Atlas Sound PD-30T Compression Driver with 70.7V-30W Transformer Limited 5-Year Warranty on Parts & Labor Brochure PDF 222.9kbvzseqrwvfawyrxcq Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound PD-30T Compression Driver with 70.7V-30W Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound PD-30T Specs | Frequency Response | 300 to 3,900 Hz | | Frequency Cut Points | Lower: 500 Hz | | Power Taps | 70.7 V @ 1.8, 3.7, 7.5, 15, 30 W | | Impedance | 45, 89, 167, 333, 666, 1300, 2500 Ω | | Power Rating | 30 W | | Sensitivity | 113.6 (average) 300 to 3,900 Hz (±5 dB) | | Depth | 4.50" (11.43 cm) | | Diameter | 4.50" (11.43 cm) | | Weight | 4.75 lb (2.15 kg) | | | | Package Weight | 4.0 lb | | Box Dimensions (LxWxH) | 7.1 x 5.9 x 5.1" |
