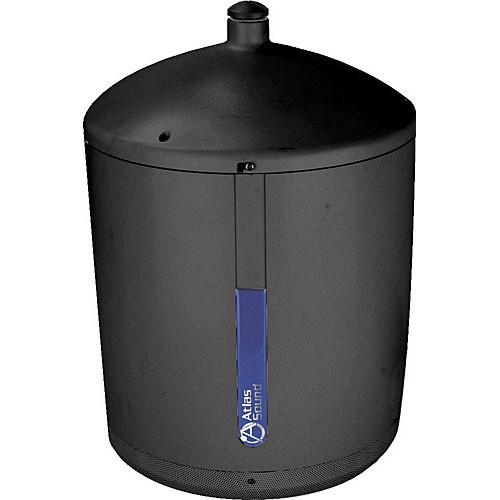

User Manual for Atlas Sound PM8CX-B 8" Pendant Mount Speaker Click to enlarge the picture
Contents of the user manual for the Atlas Sound PM8CX-B 8" Pendant Mount
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound PM8CX-B 8" Pendant Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description Sit back and enjoy exceptional sound reproduction at an affordable price with the Atlas PM8CX-B 8" Pendant Mount Speaker. The PM Series was designed for both professional and entertainment enthusiasts with the capability to deliver a full, clear, and tight sound response. Built with a True Compression Coaxial 8" 150W driver and low-frequency transducer, the PM8CX-B is an ideal solution for high-ceiling venues such as convention centers, auditoriums and arenas. In addition, the Atlas PM8CX-B features a high-efficient 70.7V transformer w/primary taps, 90 degree dispersion angle, polypropylene cone, 48Hz - 18KHz frequency response, 92dB sensitivity, and an 8-ohm direct input. This down-firing pendant-style housing offers a top cover design, concealing speaker wires and support/safety cables, providing a streamline appearance. The Atlas PM8CX-B also offers several mounting options to retrofit any ceiling configuration, up to 30' in height. - Heavy duty loudspeaker for open ceiling environments
- The 8" 8CXT60 driver provides 90 degree (45 degree off-axis) coverage in the 2KHz octave band
- Low frequency transducer w/1" exit compression offers increased SPL often required for high-ceiling applications
- High-efficient 70.7V step down line transformer w/7.5, 15, 30, and 60W power taps
- Built-in crossover network
- Compatible with standard 3/4" ceiling fan hardware
- Attractive cylindrical enclosure will compliment any decor
- Cable mounting hardware included
UPC: 612079183494 In the Box Atlas Sound PM8CX-B 8" Pendant Mount Speaker (Black) Cable Mounting Cable 5-Year Limited Warranty Guides & Manuals rzsrzecvedeezxabctrcryvssb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound PM8CX-B 8" Pendant Mount Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Atlas Sound PM8CX-B 8" Pendant Mount Speaker can be downloaded in PDF format at the link stated below.
Technical parametersAtlas Sound PM8CX-B Specs | Power Capacity | 150W | | Frequency Response | 48Hz - 18KHz | | Nominal Sensitivity | 92dB (1W @ 1 m) | | SPL | 110 dB @1M | | Impedance | 8-ohm | | Transformer Taps | 7.5, 15, 30, 60W @ 70.7V | | Crossover | Yes | | Crossover Frequency | 2000Hz | | Shielded | Not Specified By Manufacturer | | Low Frequency Driver | 8" Woofer | | Enclosure Material | Polypropylene | | Input Connections | Terminal Block | | Dimensions | Height: 16.6" (42.21 cm)
Diameter: 12.25" (32.12 cm) | | Weight | 21.0 lbs (9.53 kg) | | Specialties | Integrated Transformer w/selectable taps | | | | Package Weight | 24.25 lb | | Box Dimensions (LxWxH) | 18.8 x 15.1 x 14.9" |
