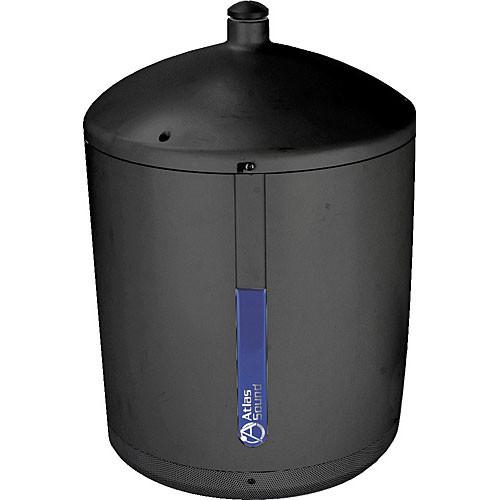

Product description The black Atlas Sound PM8FA-B is a passive, non-shielded, pendant-mount speaker optimized for music and paging applications in shopping centers, transportation stations, warehouses, and more. An integrated multi-tap transformer provides an array of power taps, and allows the PM8FA-B to be used with 70.7V, 100V, or 8-Ohm power amplifiers (available separately). The 8" woofer and coaxially mounted tweeter offer a frequency response of 65 Hz to 20 kHz and a 70W RMS (100W peak) power rating. The IPX3-rated, bass-reflex enclosure features a press-fit aluminum grille and a concealed terminal block for a clean, tidy appearance. The included cable kit and mounting hardware simplify installation in open-beam ceilings. - Ideal for music and paging applications
- 8" FA138 driver with a coaxially mounted PEI dome tweeter
- Integrated transformer with 70.7V taps at 1.9W, 3.8W, 7.5W, 15W, 30W, and 60W, plus an 8-Ohm direct input
- Ported and tuned bass-reflex enclosure
- Press-fit aluminum grille for conventional ceiling installation
- IPX3-rated protection against water and condensation
- 100° (50° off-axis) coverage in the 2 kHz octave band
- 9.8' cable kit with self-gripping ferrule allow easy installation in open-beam ceilings
- Compatible with 3/4" ceiling fan installation kit (optional) for down-pipe installation from hard ceilings
- Concealment cap features a cable access plug, and covers the cable terminations and suspension anchor points
UPC: 612079183470 In the Box Atlas Sound PM8FA-B 8" 70W Pendant-Mount Speaker with 60W Transformer (Black) 9.8' of 2mm Cable Mounting Hardware Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound PM8FA-B 8" 70W Pendant-Mount Speaker with 60W Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound PM8FA-B Specs | Active or Passive | Passive | | Woofer | 8" / 20.3 cm Woofer with 1.5" / 3.8 cm Voice Coil, Poly Cone, and Butyl Rubber Surround | | Tweeter | 0.7" / 1.9 cm Coaxially Mounted PEI Dome Tweeter | | Power Rating | RMS: 70 W
Peak: 100 W | | Transformer Taps | Watts at 70.7 V: 1.9, 3.8, 7.5, 15, 30, 60
Transformer Bypass: 8 Ohms | | Impedance | 8 Ohms | | Frequency Response | 65 Hz to 20 kHz (
