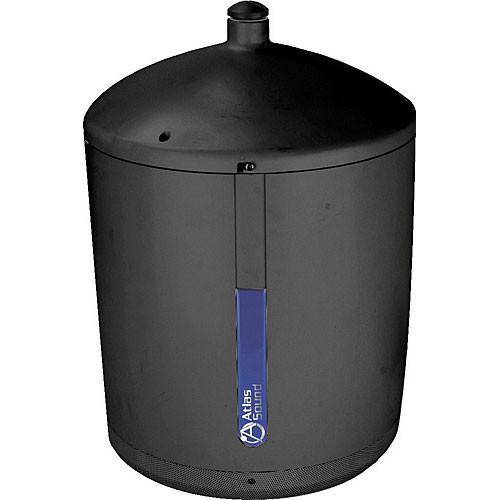

User Manual for Atlas Sound PM8GD-B 8" Pendant Mount Speaker Click to enlarge the picture
Contents of the user manual for the Atlas Sound PM8GD-B 8" Pendant Mount
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound PM8GD-B 8" Pendant Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description Sit back and enjoy exceptional sound reproduction at an affordable price with the Atlas PM8GD-B 8" Pendant Mount Speaker. The PM Series was designed for both professional and entertainment enthusiasts with the capability to deliver a full, clear, and tight sound response. Built with a Coaxial 8" 25W driver and low-frequency transducer, the PM8GD-B is an ideal solution for open ceiling venues such as convention centers, auditoriums and arenas. In addition, the Atlas PM8GD-B features a high-efficient 70.7V transformer w/primary taps, 105 degree dispersion angle, coaxial woofer, 45Hz - 19KHz frequency response, 96dB sensitivity, and an 8-ohm direct input. This down-firing pendant-style housing offers a top cover design, concealing speaker wires and support/safety cables, providing a streamline appearance. The Atlas PM8GD-B also offers several mounting options to retrofit any ceiling configuration. - Heavy duty loudspeaker for open ceiling environments
- The 8" GD87 driver provides 120 degree (60 degree off-axis) coverage in the 2KHz octave band
- Low frequency transducer offers increased SPL often required for open-ceiling applications
- High-efficient 70.7V step down line transformer w/1.0, 2.0, 4.0, and 8.0W power taps
- Post-mounted tweeter adds strength and a more attractive appearance
- Built-in crossover network
- Compatible with standard 3/4" ceiling fan hardware
- Attractive cylindrical enclosure will compliment any decor
- Cable mounting hardware included
UPC: 612079183975 In the Box Atlas Sound PM8GD-B 8" Pendant Mount Speaker (Black) Cable Mounting Cable 5-Year Limited Warranty Brochure PDF 880.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound PM8GD-B 8" Pendant Mount Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound PM8GD-B Specs | Power Capacity | 25W | | Frequency Response | 45Hz - 19KHz | | Nominal Sensitivity | 96dB (1W @ 1 m) | | Impedance | 8-ohm | | Transformer Taps | 1.0, 2.0, 4.0, 8.0W @ 70.7V | | Crossover | Yes | | Crossover Frequency | 2800Hz | | Shielded | Not Specified By Manufacturer | | Low Frequency Driver | 8" Woofer | | Enclosure Material | Coaxial (Treated Paper) | | Input Connections | Terminal Block | | Dimensions | Height: 16.6" (42.21 cm)
Diameter: 12.25" (32.12 cm) | | Weight | 14.0 lbs (6.35 kg) | | Specialties | Integrated Transformer w/selectable taps | | | | Package Weight | 17.05 lb | | Box Dimensions (LxWxH) | 19.0 x 15.0 x 15.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
