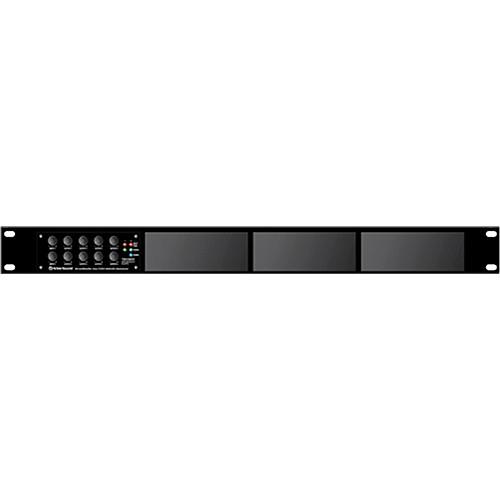

User Manual for Atlas Sound Rack Mount Kit for TSD Series Click to enlarge the picture
Contents of the user manual for the Atlas Sound Rack Mount Kit for
- Product category: Mounts & Brackets Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Mounts & Brackets
|
User manual for the Atlas Sound Rack Mount Kit for contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The Atlas Sound Rack Mount Kit for TSD Series features a 1RU mounting plate that facilitates rack mounting of up to 4 Atlas Sound Time Saving Devices in a 19” rack. This rack kit allows you to mount the TSD from behind the plate so that all the front controls and LEDs are easily accessible, allowing for quick adjustments and checks. Also included in the kit are 3 blank filler panels for covering empty slots in the 19” rack. - Mounts up to 4 Atlas Sound Time Saving Devices in a 19" 1 RU rack
- Behind plate mounting of TSD allows for easy access to LEDs and front controls
- Removable I/O connectors and separate ground terminals
- Hassle-free wiring and neater installation
- 3 blank filler panels for clean, seamless look
- Black brushed aluminum finish
UPC: 612079187942 In the Box Atlas Sound Rack Mount Kit for TSD Series 8 x M3 x 3mm Pan Head 8 x M3 x 5mm Flat Head 3 x Blanking Panels 3-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound Rack Mount Kit for TSD Series in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound TSD-RMK Specs | Chassis | Color: Black
Material: Aluminum | | Mounting Hardware | Top screws: M3 x 3mm Pan Head
Bottom screws: M3 x 5 mm Flat Head
Dimensions: 1.75 x 19" (44.45 x 482.6 mm)
Weight: 6 oz (0.165 kg) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 21.5 x 4.25 x 2.25" |
