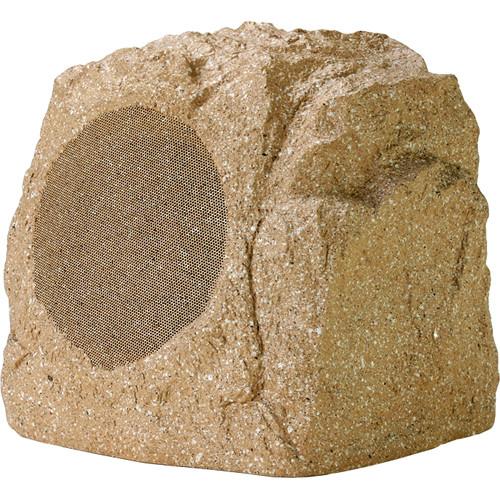

User Manual for Atlas Sound ROCKFA62T-BR Rock Speaker 32W 70 100V Click to enlarge the picture
Contents of the user manual for the Atlas Sound ROCKFA62T-BR Rock Speaker 32W
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound ROCKFA62T-BR Rock Speaker 32W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description This ROCKFA62T-BR Rock Speaker 32W 70/100V (Brown) from Atlas Sound delivers the proven performance of a Strategy Series FA136 driver in a natural looking enclosure that resembles brown granite. This weather-resistant loudspeaker offers accurate sound reproduction with components including a highly efficient 6" woofer section and 1/2" PEI (Polyetherimide) dome high frequency tweeter. An internal 32W 70.7V/100V transformer is terminated to a 24" direct burial rated pigtail that includes conductors for all transformer taps including a 1:1 connection for 8Ω operation. The ROCKFA62T-BR is also optimized to complement the FAP62T (for under-eave mounting) and the SM52T for on-the-wall deployment in outdoor high-quality sound systems. The woofers feature a treated Kevlar cone and synthetic rubber surrounds and the tweeter is constructed of PEI (Polyetherimide). The speaker systems include an embedded underground eyebolt for a security anchor to prevent theft. - Strategy Series FA136 driver in a specially designed, natural looking brown enclosure designed to mimic the look of brown granite
- System components consist of a highly efficient 6" woofer section and 0.5" PEI (Polyetherimide) dome high frequency tweeter. An internal 32 watt 70.7V / 100V transformer is terminated to a 24" direct burial rated pigtail that includes conductors for all transformer taps including a 1:1 connection for 8Ω operation.
- Highly efficient 6" woofer section and 0.5" PEI (Polyetherimide) dome high frequency tweeter
- Internal 32 watt 70.7V / 100V transformer is terminated to a 24" direct burial rated pigtail that includes conductors for all transformer taps including a 1:1 connection for 8Ω operation
- Constructed of weather-resistant materials--woofers feature treated Kevlar® cone and synthetic rubber surrounds and the tweeter is constructed of PEI (Polyetherimide)
- Embedded underground eyebolt for a security anchor to prevent theft
- Optimized to complement the FAP62T (for under eave mounting) and the SM52T for on-the-wall deployment in outdoor high-quality sound systems.
UPC: 612079186068 In the Box Atlas Sound ROCKFA62T-BR Rock Speaker 32W 70/100V (Brown) 5-Year Limited Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound ROCKFA62T-BR Rock Speaker 32W 70 100V in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound ROCKFA62T-BR Specs | Frequency Range | 80Hz - 20kHz (±5dB) | | Crossover | 5kHz | | Woofer | 6" woofer | | Sensitivity | 88dB | | Dispersion | 130° | | Power Rating | 50 Watts | | Transformer Taps | 4, 8, 16, 32 Watts and 1:1 winding for 8Ω mode | | Rating | UL Listed/Standard: 1480 / 2043 | | Connectors | 4-pole detachable Phoenix-style / Euro connector | | Dimensions | 10.5 x 12.5 x 9.0" (26.7 x 31.8 x 22.9 cm) | | Weight | 13.15 lb (5.96 kg) | | | | Package Weight | 12.8 lb | | Box Dimensions (LxWxH) | 15.5 x 12.0 x 11.0" |
