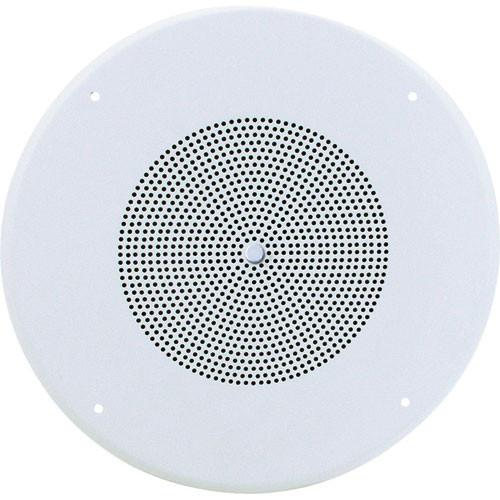

User Manual for Atlas Sound SD72WV 8" Cone Speaker and 4W Transformer with Volume Control Click to enlarge the picture
Contents of the user manual for the Atlas Sound SD72WV 8" Cone Speaker
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound SD72WV 8" Cone Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The AtlasSound's SD72WV 8" Cone Speaker and 4W Transformer with Volume Control is the next generation of AtlasSound technology, directly following the C Series. This particular model is a 25W, 8" loudspeaker and a 10oz ceramic magnet. The harmonic distortion is greatly limited due to the curvelinear treated paper cone. To improve the power dissipation a full 1" diameter copper voice coil with black anodized aluminum is incorporated.This particular package includes a factory installed 25/70.7V line matching transformer with tap selections from 0.25 to 5W.The durable high-impact, injection molded plastic is obviously attractive and sturdy but it also features a baffle, meant to blend effortlessly into contemporary architectural elements and match the AtlasSound Model 62-8. - Quality Response and Performance
- The 10oz speaker and quality 5W dual voltage transformer gives its users top notch response and performance indicative of AtlasSound.
- CRS Baffle Included
- Included in this speaker package is a white powder-coat baffle with all of the necessary mounting hardware.
- Versatile Volume
- The volume knob can be used to control the sound or it can be completely removed to increase your aesthetic value.
- Individually Packaged
- For stocking and ordering convenience, all speakers are individually packaged.
UPC: 612079179961 In the Box Atlas Sound SD72WV 8" Cone Speaker and 4W Transformer with Volume Control Mounting Screws Five-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound SD72WV 8" Cone Speaker and 4W Transformer with Volume Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound SD72WV Specs | Frequency Response | 45 Hz - 19 kHz | | Maximum Power Handling | 25W | | Impedance | 8 Ohms | | SPL | Not Specified By Manufacturer | | Beamwidth | Not Specified By Manufacturer | | Horizontal Beamwidth | Not Specified By Manufacturer | | Vertical Beamwidth | Not Specified By Manufacturer | | Directivity | Dispersion Angle: 105° | | Construction | Molded plastic with white powder coat epoxy | | Magnet | 10 oz Ceramic Magnet | | Voice Coil | 1" (25mm) Copper | | Dimensions | Diameter: 8.13" (20.64 cm)
Depth: 2.9" (7.3 cm) | | Weight | 5.63 lbs (2.55 kg) | | | | Package Weight | 4.55 lb | | Box Dimensions (LxWxH) | 14.1 x 14.0 x 3.8" |
