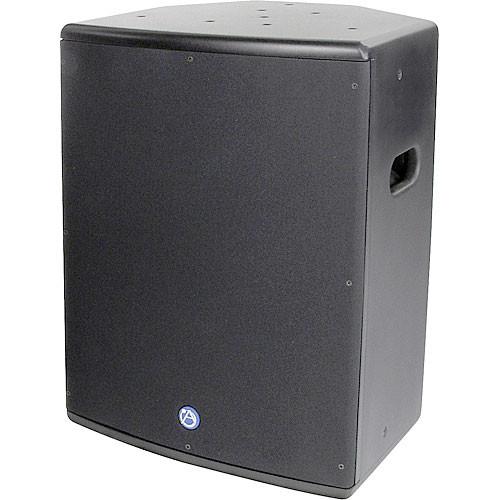

Product description The Atlas SM12CXT-B 70V / 100V Coax Surface Mount Speaker is a PA loud speaker intended for installation in 70V / 100V commercial audio systems in lounges, bars, restaurants, dance studios, and anywhere loud speaker sound is necessary. The speaker is capable of 250 watts and features a 12" woofer and 1" compression driver (tweeter) for full-range sound and maximum fidelity while reproducing music or speech. The rugged design features wood construction, metal grille and 12 1/4-20 inserts for suspending (flying) the speaker overhead. A Barrier strip input provides taps for 70.7 / 100V and 8 ohm operation. - 70V, 100V or 8 ohm operation with 250W of power
- 12" driver and 1" tweeter
- Speakon input for 8 ohm operation and barrier strip taps for 70.7, 100V and 8 ohm
- High efficiency 60 Watt 70.7/100V transformer (may be bypassed for 8 ohm operation)
- 12x 1/4"-20 inserts, providing fly points for a variety of mounting configurations
- Unique Input Panel Allows Use of Standard 4" Square Box Cover for applications where Flex Conduit is required for termination
- Durable, Rough-Coat Finish and Heavy-Duty Grille Assembly
In the Box Atlas Sound SM12CXT-B 12" 70V Coax Surface Mount Speaker 1 Year Warranty Brochure PDF 348.2kbedyyetcuvztsavzaascuasd Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound SM12CXT-B 12" 70V Coax Surface Mount Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound SM12CXT-B Specs | Active or Passive | Passive | | Frequency Response | 55Hz to 15kHz | | Power Capacity | 250W @ 8 ohms Power Taps 7.5, 15, 30, 60 | | Maximum Sound Pressure Level (SPL) | 123dB @ 8 ohms | | Nominal Sensitivity | 99dB | | Low Frequency Driver | 12" | | High Frequency Driver | 1" | | Enclosure Material | Wood | | Input Connections | Speakon for 8 ohm
Barrier Strip for 70V / 100V | | Dimensions | 14.5 x 19 x 14" (368 x 483 x 357mm) | | Weight | 39 lbs (17.7 kg) | | | | Package Weight | 52.0 lb | | Box Dimensions (LxWxH) | 22.8 x 19.2 x 18.7" |
