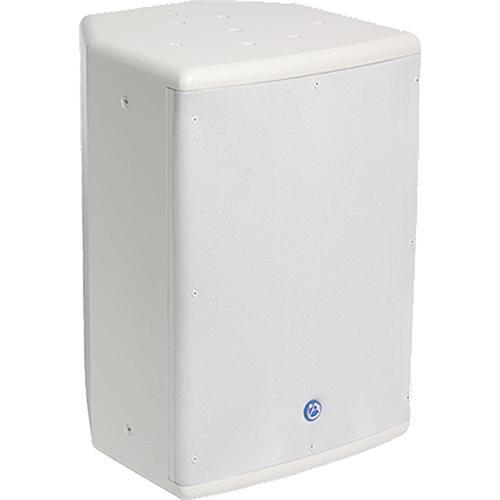

User Manual for Atlas Sound SM12SUB70 12" Passive 70V 8 Ohm Subwoofer Speaker Click to enlarge the picture
Contents of the user manual for the Atlas Sound SM12SUB70 12" Passive 70V
- Product category: PA Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound PA Speakers
|
User manual for the Atlas Sound SM12SUB70 12" Passive 70V contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The Atlas SM12SUB70 Passive Subwoofer Speaker is capable of 70V commercial install, or standard 8 ohm operation with a traditional amplifier. The subwoofer is at home in lounges, bars, restaurants, dance studios, venues and anywhere a loud speaker subwoofer is necessary. The speaker is capable of 250 watts and features a 12" woofer, and a built-in 18dB / octave three-pole passive crossover network set at 120Hz. The rugged construction features wood construction, metal grille and multiple 1/4-20 inserts for suspending (flying) the speaker overhead. A Barrier strip input provides taps for 70V or 8 ohm operation. - 70V or 8 ohm operation with 250W of power
- 12" driver and 120Hz Crossover
- Speakon input for 8 ohm operation and barrier strip taps for 70.7V
- Multiple 1/4"-20 inserts, providing fly points for a variety of mounting configurations
- Unique Input Panel Allows Use of Standard 4" Square Box Cover for Applications Where Flex Conduit is Required for Termination
- Durable, Rough-Coat Finish and Heavy-Duty Grille Assembly
- Optional Bracket for Wall Mounting
UPC: 612079186488 In the Box Atlas Sound SM12SUB70 12" Passive 70V / 8 Ohm Subwoofer Speaker (White) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound SM12SUB70 12" Passive 70V 8 Ohm Subwoofer Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound SM12SUB70 Specs | | | Configuration | Passive Subwoofer | | Total Power Capacity | 250 W RMS | | | | LF Driver | 1 x 12" / 30 cm Woofer | | | | Frequency Response | 45 Hz to 125 Hz | | Speaker Sensitivity | 89 dB | | | | Audio I/O | speakON
Barrier Strip speakON for 8 Ohms, Barrier Strip for 70 V / 100 V | | | | Construction Material | Wood | | Dimensions | 14.5 x 19.0 x 14.0" / 368.0 x 483.0 x 357.0 mm | | Weight | 36 lb / 16.3 kg | | | | Package Weight | 45.0 lb | | Box Dimensions (LxWxH) | 22.0 x 18.0 x 18.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 67 owners. Add your rating and experience with the product.
