User Manual for Atlas Sound SM42T-WH 4" 2-Way 16W Weather-Resistant Surface Speaker Click to enlarge the picture
Contents of the user manual for the Atlas Sound SM42T-WH 4" 2-Way 16W
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
 |
User manual for the Atlas Sound SM42T-WH 4" 2-Way 16W contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

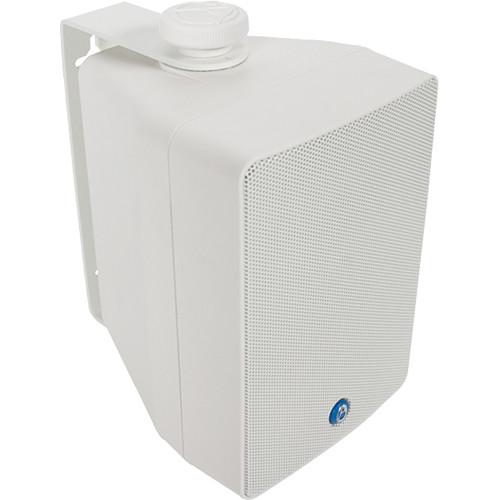

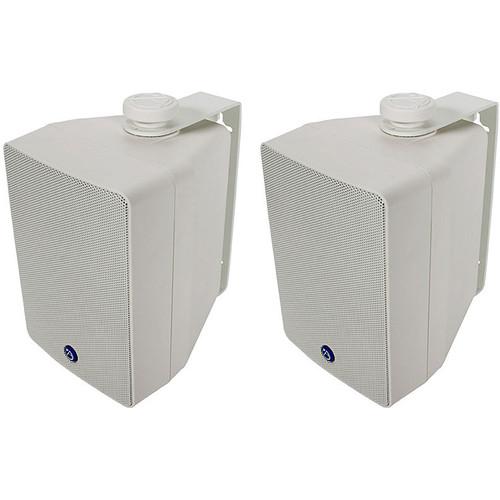

Product description Sold as a pair, the white Atlas Sound SM42T-WH is a weather-resistant, surface-mount loudspeaker offering consistent coverage and installation flexibility for indoor/outdoor environments such as retail shops, restaurants, warehouses, and more. The compact cabinet houses an efficient 4" polypropylene woofer and a 1" dome tweeter to deliver a frequency response of 115 Hz to 16 kHz. The TRX high-frequency waveguide system provides even 90 by 90° dispersion. The integrated 16W transformer offers selectable power taps and allows the SM42T-WH to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Internal PolyGuard circuitry protects the tweeter without compromising high-frequency performance. A removable cover guards the 2-pole barrier strip input, which accommodates wires up to 14 AWG. The SM42T-WH includes a heavy-duty, C-shaped bracket for versatile horizontal or vertical mounting. - 2-way loudspeaker for surface-mount configurations in residential, professional, or commercial applications
- Weather-resistant construction allows you to use the speaker indoors or outdoors
- 4" woofer and 1" tweeter yield a frequency response of 115 Hz to 16 kHz
- Drivers boast low-flux leakage, which allows speaker placement near video monitors
- High-frequency waveguide system for even sound dispersion of 90 by 90°
- Internal PolyGuard protection circuitry for smooth performance
- Internal 16W transformer allows operation with 70.7V or 100V power amplifiers

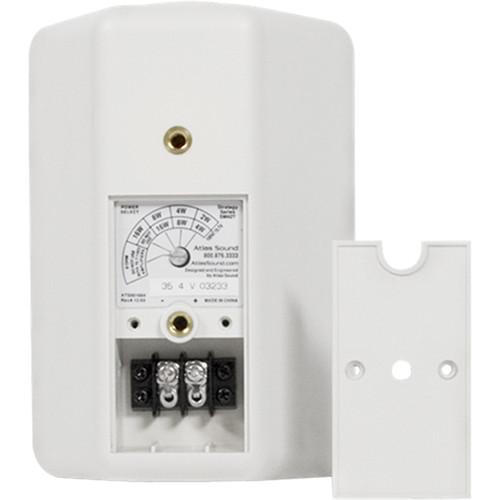

- Screwdriver-selectable power taps at 2, 4, 8, and 16 watts, plus an 8-Ohm transformer bypass position
- Includes heavy-duty, C-shaped bracket with 5/8"-27 threaded hole for easy mounting

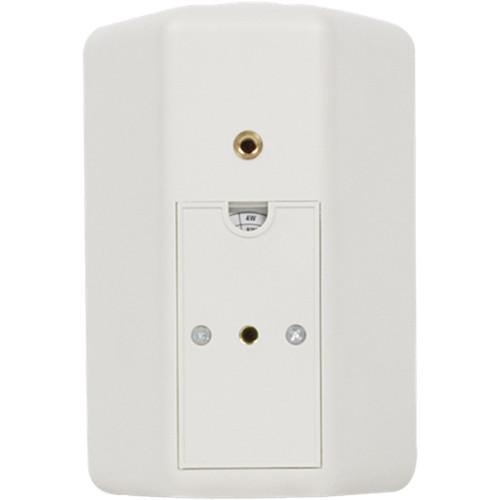

- Standard 1/4"-20 brass hardware inserts let you use off-the-shelf security hardware
- Compatible with OmniMount 10 brackets
In the Box Atlas Sound SM42T-WH 4" 2-Way 16W Weather-Resistant Surface Speaker (Pair, White) 2 x Mounting Brackets Limited 5-Year Warranty User Manual PDF 1.8mbrzsrzecvedeezxabctrcryvssb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound SM42T-WH 4" 2-Way 16W Weather-Resistant Surface Speaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound SM42T Specs | Active or Passive | Passive | | Low Frequency Driver | 4" / 10.2 cm Polypropylene Woofer | | High Frequency Driver | 1" / 2.5 cm Ferrofluid-Cooled Mylar Dome Tweeter | | Power Rating | 16 W RMS | | Power Taps | Watts at 70.7 V: 2, 4, 8, 16 | | Coverage | 90 x 90° | | Frequency Response | 115 Hz to 16 kHz (
