User Manual for Atlas Sound SM52T Strategy Series Surface Mount Loudspeaker Click to enlarge the picture
Contents of the user manual for the Atlas Sound SM52T Strategy Series Surface
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound SM52T Strategy Series Surface contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

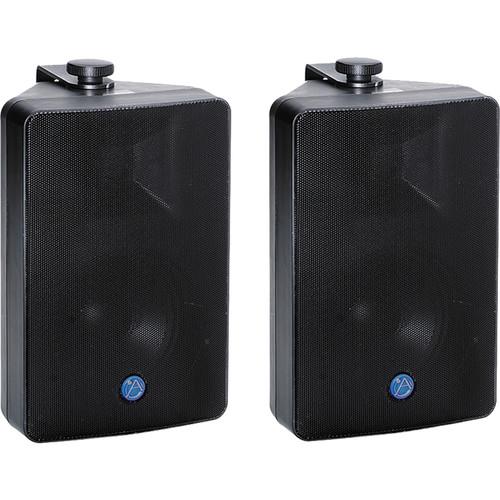

Product description The pair of black SM52T Strategy Series Surface Mount Loudspeakers from Atlas Sound is designed for use in commercial, professional, and residential applications or where a weather-resistant system is desired. Full-range frequency response allows these speakers to be used in indoor or outdoor installations, in monaural and stereo foreground or background music systems, and for applications in boutiques, shops, restaurants, cafes, recreation sports centers, and houses of worship. The included multi-position, C-shaped mounting brackets and rugged construction provide installation flexibility.
It features a 5.25-inch woofer section and Ferrofluid cooled, titanium dome high-frequency device. Vocal and musical clarity is optimized by the mathematically conceived design of the Atlas Sound TRX Control WaveGuide high-frequency director. This design provides even sound coverage (90°H x90°V). The high-frequency section is symmetrical, for equal coverage in both vertical and horizontal cabinet mounting positions. High-frequency component protection is provided by the Atlas Sound PolyGuard protection circuit.
The SM52T includes an internally mounted 30W 70.7V/100V line matching transformer with screwdriver adjustable tap selection for use in distributed sound applications. The tap selection switch also includes a transformer bypass setting for direct coupled 8-Ohm operation. - Compact, 2-way loudspeaker system for music and sound reinforcement systems
- Weather-resistant construction for year-round indoor or outdoor use
- UV-resistant, talc-impregnated polypropylene injection molded enclosure, powder coated aluminum grilles and all brass hardware inserts
- Conforms to 100HR salt spray test per ASTM B117
- Color matched heavy-duty zinc chromate plated and powder coated "C" bracket (included)
- 5.25" polypropylene woofer
- 1" FerroFluid cooled dome tweeter
- Atlas Sound TRX WAVEGUIDE provides constant directivity, high-frequency coverage
- Atlas Sound POLYGUARD high-frequency circuit diverts damaging transient signals to protect the tweeter
- All 1⁄4"-20 hardware inserts allow integration of "off-the-shelf" security hardware
- Screwdriver adjustable 30W 70.7V / 100V transformer for distributed sound applications. (Includes transformer bypass setting for direct coupled 8-Ohm operation)
- OMNIMOUNT 10 Series compatible
In the Box Atlas Sound SM52T Strategy Series Surface Mount Loudspeaker (Black, Pair) C Bracket Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound SM52T Strategy Series Surface Mount Loudspeaker in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound SM52T Specs | Power Rating | RMS: 100 W | | Frequency Response | 85 Hz to 20 kHz (±3 dB) | | Sensitivity | 90 dB (1 W/1 m) | | Woofer | Size: 5.25" / 133.35 mm
Cone: Polypropylene
Surround: Rubber
Magnet: 20 oz / 567 g | | Tweeter | Size: 1" / 25 mm
Diaphragm Material: Mylar
Magnet: 1.39 oz / 39.4 g | | Crossover Frequency | 5 kHz | | Crossover Type | 1st order low pass, 2nd order high pass | | Transformer Taps | 0.94, 1.9, 3.7, 7.5, 15, 30 W, & 8 Ohms bypass | | Dimensions (H x W x D) | 11.2 x 6.9 x 5.8" / 285 x 175 x 148 mm | | | | Package Weight | 19.5 lb | | Box Dimensions (LxWxH) | 18.0 x 17.0 x 10.0" |
