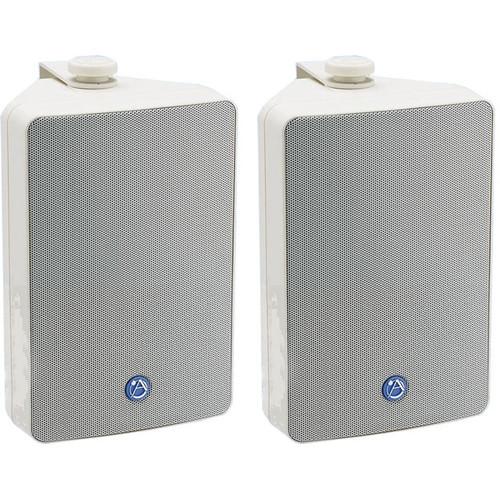

User Manual for Atlas Sound SM52TW 5.25" 2-Way Weather Resistant Speaker with Internal Transformer Click to enlarge the picture
Contents of the user manual for the Atlas Sound SM52TW 5.25" 2-Way Weather
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound SM52TW 5.25" 2-Way Weather contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The pair of AtlasSound SM52TW 5.25" 2-Way Weather Resistant Speakers with Internal Transformers consists of an efficient woofer and a FerroFluid cooled, titanium domed tweeter. To further improve the sound quality AtlasSound has added a TRX Control WaveGuide high frequency director, and the high frequency sounds are protected by the PolyGuard protection circuit.Included with the SM52TW is an internally mounted 30W 70.7V/100V line matching transformer with an adjustable tap selector.The utmost care was taken in construction to ensure the speakers in the Strategy Series are as weather resistant as possible. The exterior is constructed of UV-resistant, talc impregnated, polypropylene which is injection molded to get the perfect look. Inside the cabinet are top quality polypropylene woofer cones, powder coated aluminum grilles and all brass hardware. Also included with your speaker is a C-bracket which lets you mount the SM52TW either horizontally, vertically or on a microphone stand. - PolyGuard
- The PolyGuard high frequency circuit protects the tweeter by diverting damaging transient signals, giving you a great quality sound now and well into the future.
- TRX Waveguide
- AtlasSound's TRX Waveguide provides accurate coverage with their constant directivity high frequency wave guide system.
- Mounting Options
- Included is a color matching C-bracket which will let you mount the loudspeaker in a vertical or horizontal position as well as pole mounting options.
- Weather Resistant
- The SM52TW is as weather resistant as possible with UV-resistant, talc impregnated, injection molded polypropylene enclosure. The grille and all brass hardware are treated with weather resistant powder coating.
In the Box Atlas Sound SM52TW 5.25" 2-Way Weather Resistant Speaker with Internal Transformer (White, Pair) C-bracket Installation Instructions 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound SM52TW 5.25" 2-Way Weather Resistant Speaker with Internal Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound SM52T Specs | Frequency Response | 95Hz - 20kHz | | Speaker Type | All-Weather Surface Mount | | Power Taps | 0.94, 1.9, 3.7, 7.5, 15, 30 | | Sensitivity | 89dB | | Coverage | 90 x 90° | | Power | Transformer: 30W | | Dimensions (HxWxD) | 10.19 x 6.87 x 5.87" (25.88 x 17.46 x 14.92cm) | | Weight | 5 lbs (2.27kg) | | | | Package Weight | 11.5 lb | | Box Dimensions (LxWxH) | 17.4 x 15.8 x 9.9" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 46 owners. Add your rating and experience with the product.
