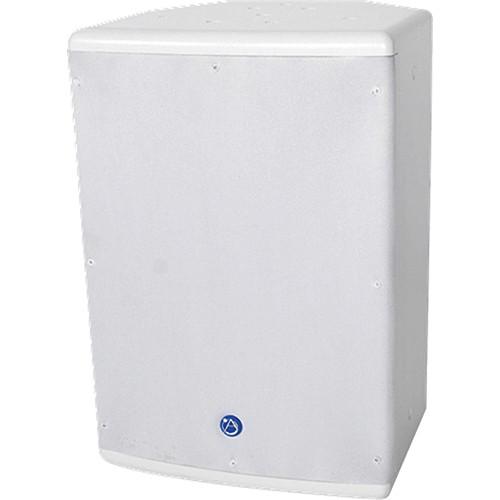

User Manual for Atlas Sound SM8CXT 8" Coaxial Speaker with Internal Transformer Click to enlarge the picture
Contents of the user manual for the Atlas Sound SM8CXT 8" Coaxial Speaker
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound SM8CXT 8" Coaxial Speaker contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The SM8CXT 8" Coaxial Speaker with Internal Transformer (White) from Atlas Sound provides high-quality audio in a compact and durable design, ideal for installation applications in auditoriums, houses of worship, and more. The wooden cabinet has an 8" polypropylene woofer and a 1" compression tweeter to provide clear audio with a wide frequency response. An integrated crossover network ensures proper frequency transition between the drivers for optimal performance. The drivers have permanently aligned voice coils to minimize distortion. A metal grille protects the drivers and provides a stylish look.
The speaker has a 90° conical dispersion pattern to provide ample coverage with a wide sweet spot, allowing audio to reach a broad audience. The speaker has an internal 60W transformer that allows 70.7/100V operation with distributed systems. The speaker can also be used in standard 8 ohm passive operation and has a power handling capability of 150W. A barrier strip input supports all operating modes, while parallel Speakon connectors support 8 ohm operation only. Multiple 1/4"-20 inserts are provided, allowing you to suspend the speaker in a variety of configurations. - The compact and durable design is ideal for installation applications in auditoriums, houses of worship, and more
- The wooden cabinet has an 8" polypropylene woofer and a 1" compression tweeter to provide clear audio with a wide frequency response
- An integrated crossover network ensures proper frequency transition between the drivers for optimal performance. Fuse protection is also offered for both drivers
- The drivers have permanently aligned copper voice coils with Polyimide formers to minimize distortion
- A metal grille protects the drivers and provides a stylish look
- The speaker has a 90° conical dispersion pattern to provide ample coverage with a wide sweet spot, allowing audio to reach a broad audience
- An internal 60W transformer allows 70.7/100V operation with distributed systems. The transformer can be bypassed, allowing you to use the speaker in standard 8 ohm passive operation with a power handling capability of 150W
- A barrier strip input supports all operating modes, while parallel Speakon connectors support 8 ohm operation only
- The unique input panel allows the use of a standard 4" square box cover (Raco 753 or equivalent) for applications where a flex conduit is required for termination
- Multiple 1/4"-20 inserts are provided, allowing you to suspend the speaker in a variety of configurations
- Pre-drilled T-Nut inserts allow you to use the speaker with an optional Omnimount bracket for wall mounting
In the Box Atlas Sound SM8CXT 8" Coaxial Speaker with Internal Transformer (White) 1-Year Limited Warranty Brochure PDF 690.1kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound SM8CXT 8" Coaxial Speaker with Internal Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound SM8CXT-W Specs | Type | Coaxial, 2-Way | | Frequency Response | 60Hz - 15kHz | | Sensitivity | 92dB | | Power Handling | 150W (8 Ohm Mode) | | Impedance | 8 Ohms | | Transformer | 60W, Internal | | Transformer Taps | 7.5, 15, 30, and 60W | | Woofer | 8" (203mm) Curvilinear Polypropylene Cone Woofer | | Tweeter | 1" (25mm) Compression Tweeter | | Dispersion | 90° | | Construction | Wood Cabinet with Metal Grille and White Finish | | Mounting | 12 x 1/4"-20 Threaded Inserts | | Inputs | 1 x Barrier Strip (70.7/100V and 8 Ohms)
2 x Parallel 4-Pole Speakon Inputs (8 Ohms) | | Dimensions (HxWxD) | 15.5 x 10.6 x 10.4" (394 x 270 x 264mm) | | Weight | 30 lbs (13.61kg) (Shipping Weight) | | | | Package Weight | 31.31 lb | | Box Dimensions (LxWxH) | 19.0 x 14.0 x 14.0" |
