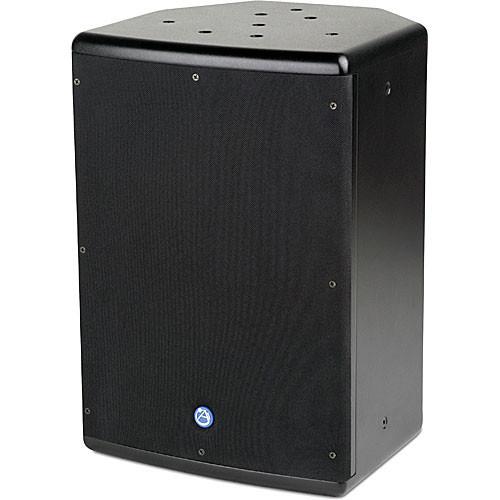

User Manual for Atlas Sound SM8SUB70-B 8" 150W Surface-Mount Subwoofer with 60W Transformer Click to enlarge the picture
Contents of the user manual for the Atlas Sound SM8SUB70-B 8" 150W Surface-Mount
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound SM8SUB70-B 8" 150W Surface-Mount contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The black Atlas Sound SM8SUB70-B is a passive surface-mount subwoofer with a multi-tap transformer designed to deliver reliable low-frequency reinforcement for foreground music systems in waiting rooms, offices, retail stores, restaurants, and more. When driven by your 70.7V, 100V, or 8-Ohm power amplifier (available separately), this subwoofer provides a power capacity of 150W RMS. The SM8SUB70-B is equipped with an 8" long-excursion woofer capable of covering the low-frequency range from 55 to 100 Hz. An internal 18 dB/octave crossover at 125 Hz ensures proper input bandwidth, and the high-efficiency 60W transformer accommodates a range of power taps. Fuse protection for the driver inhibits damage from overloading. The small-format wood enclosure is flyable via 1/4"-20 inserts, and features an input panel with a barrier strip and two parallel 4-pole speakON inputs. - Versatile, flyable wood enclosure
- Multiple 1/4"-20 inserts serve as fly points for a variety of mounting configurations
- Pre-drilled with T-nut inserts for installation of Omnimount bracket (available separately)
- Internal, high-efficiency 60W transformer allows operation with 70.7V/100V amplifiers, or can be bypassed for 8-Ohm operation
- Built-in 18 dB/octave passive crossover at 125 Hz eliminates the need for external low-pass filtering
- Barrier strip input connector for 70.7V/100V operation
- Parallel 4-pole speakON inputs for 8-Ohm operation
- Input panel enables use of standard 4" square box cover (Raco 753 or equivalent) for applications where flex conduit is required for termination
- Fuse protection for driver
- Heavy-duty grille assembly
UPC: 612079180769 In the Box Atlas Sound SM8SUB70-B 8" 150W Surface-Mount Subwoofer with 60W Transformer (Black) Limited 5-Year Warranty Brochure PDF 124.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound SM8SUB70-B 8" 150W Surface-Mount Subwoofer with 60W Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound SM8SUB70 Specs | Active or Passive | Passive | | Woofer | 8" / 20.3 cm | | Frequency Range | 55 to 100 Hz (
