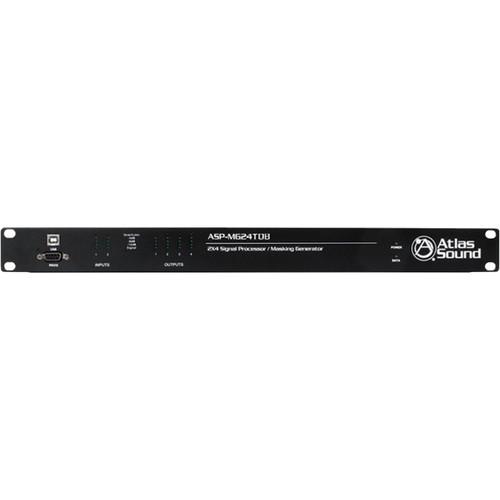

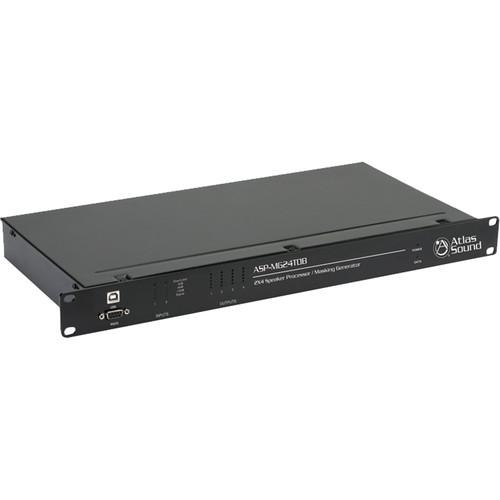

User Manual for Atlas Sound Sound Masking Processor & Speaker Controller with Scheduler Card for AtlasIED Loudspeaker System Click to enlarge the picture
Contents of the user manual for the Atlas Sound Sound Masking Processor &
- Product category: Accessories Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Accessories
 |
User manual for the Atlas Sound Sound Masking Processor & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description Provided by third party: The ASP-MG24TDB advances sound masking control including time based level control to another level while providing the secondary benefit of loudspeaker processing for the most popular AtlasIED loudspeaker systems.
The ASP-MG24 is 1RU, 2 input with 4 masking generators x 4 output DSP configurable by a very intuitive set-up GUI. Four inputs are tied to independent white/pink noise generators with adjustable ramp-up to allow gradual acclimation to masking levels. Two additional inputs are available for mic or line sources to allow paging and/or music sources to be blended with the masking sources to any of the 4 outputs.
Dedicated 1/3 octave filter sets are available for each of the 4 generator outputs, 8 band parametric EQ blocks along with dynamic control is available for each of the two mic/line inputs. Any mix of all 6 inputs may be easily matrixed to the 4 output DSP blocks for additional parametric equalization, delay, and limiting (if required).
Factoring in all features, a very complex 4 zone sound masking system can be easily configured with 2 external music or page sources. The MGTDB internal module allows timing and level control of all 4 Masking inputs for daytime holiday and weekend scheduling.
- Key Features
-
- Easy downloads from the Atlas Sound MEQ masking program make system tuning a breeze
- The ASP-MG24 DSP architecture is equally suited for complex masking systems and for control of atlas sound full range speakers and/or subwoofers
- The ASP-MG24TDB provides accurate detailed control over masking levels for all 4 masking generators based on an easy to use scheduler
- The Intuitive ASP-MG24 set-up GUI is designed to simplify even complex setups that utilize multiple sources plus masking in the same zone
UPC: 612079186075 Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound Sound Masking Processor & Speaker Controller with Scheduler Card for AtlasIED Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

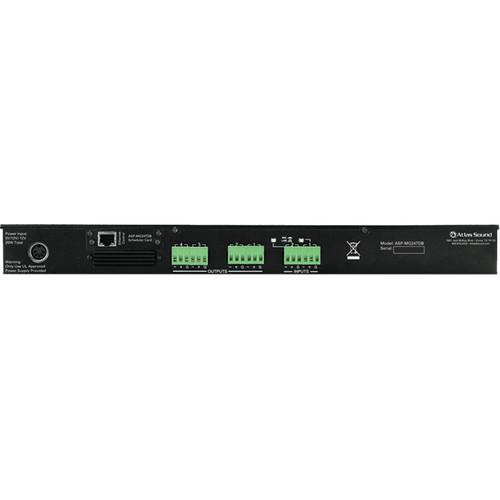

Technical parametersAtlas Sound ASP-MG24TDB Specs | | | Type | Speaker management processor | | Width | 19 in | | Depth | 8 in | | Height | 1.7 in | | Weight | 13.23 lbs | | | | Features | Scheduling function | | | | Max Power Consumption | 20 W | | | | Terminals | (1) x USB - 4 pin USB type B
(1) x serial - 9 pin D-Sub (DB-9)
(2) x balanced audio input - terminal block
(4) x balanced audio output - terminal block
(1) x network - RJ-45 |
