User Manual for Atlas Sound Strategy Series FA138T87 - 8" Coaxial Loudspeaker with 70.7V-8W Transformer Click to enlarge the picture
Contents of the user manual for the Atlas Sound Strategy Series FA138T87 -
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound Strategy Series FA138T87 - contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

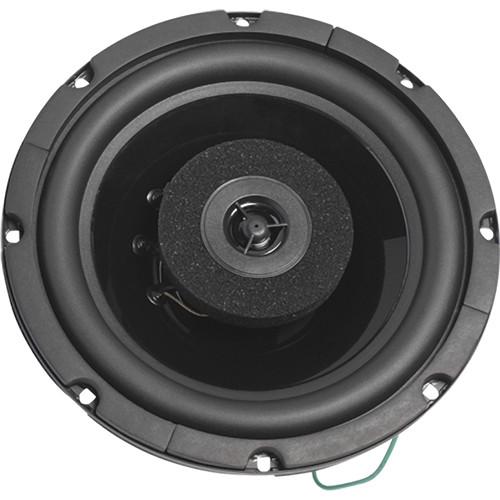

Product description The Strategy Series FA138T87 from Atlas Sound is the company's premium 8" coaxial loudspeaker with a factory installed, high efficiency 8 Watt 70.7V transformer.The loudspeaker includes a circuit board mounted high-pass/low-pass crossover which is designed to produce outstanding sound quality. It contains a reinforced polypropylene cone woofer, a custom butyl rubber surround, a 1 1/2" vented Kapton voice coil, a 21oz. magnet and a 1/2" mylar-dome ferrofluid cooled tweeter for clean and powerful weather-resistant performance. The integral 8 Watt 70.7V transformer features a 50Hz - 15kHz frequency response (±1dB) with 1, 2, 4 and 8 watt primary taps. For optimum acoustic and application versatility the Strategy series has been engineered as a system offering the FA97-8 Series high performance enclosures with acoustic batting as well as the economy FA95-6 Series backbox enclosures. The enclosure front-loads the loudspeaker and installs quickly and easily into the ceiling using only a screwdriver to adjust the rotating clamps. Loudspeakers may also be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-8 instead of an enclosure.Baffle selection includes a choice of two attractive grilles which are equipped with three serrated studs for hardware-free, push-on installation into Strategy Series enclosures.For limited depth installations when no enclosure is required mounting ring model FAPR-8 may be utilized. New construction ring model FA-TR8 is also available to serve as a pattern cut-out and location marker for drywall installers in new construction applications. -
- 100-watt unit offers extended sound pressure levels for high/vaulted ceiling applications
- Conveniently front loads into acoustically-matched system enclosures or mounting ring
- 8" coaxial loudspeaker delivers full-frequency response with superior fidelity
- UL certified, safety listed to UL1480
UPC: 612079129775 In the Box Atlas Sound Strategy Series FA138T87 - 8" Coaxial Loudspeaker with 70.7V-8W Transformer Limited 3-Year Warranty Brochure PDF 611.5kb Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound Strategy Series FA138T87 - 8" Coaxial Loudspeaker with 70.7V-8W Transformer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound FA138 Specs | Speaker Type | Coaxial | | Frequency Response | 75 Hz - 20 kHz | | Power Taps | 1, 2, 4, & 8 watts | | Sensitivity | 89.5 dB RMS, 93 dB peak | | Dispersion | 110° | | UL Listed | 1480 | | Depth | 5.5" (14 cm) | | Diameter | 8.25" (21 cm) | | | | Package Weight | 37.08 lb | | Box Dimensions (LxWxH) | 8.31 x 8.31 x 6.5" |
