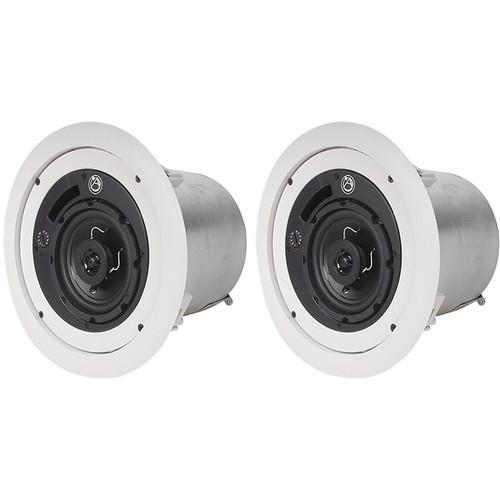

User Manual for Atlas Sound Strategy Series II 2-Way In-Ceiling Loudspeaker System Click to enlarge the picture
Contents of the user manual for the Atlas Sound Strategy Series II 2-Way
- Product category: Installed Speakers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Installed Speakers
|
User manual for the Atlas Sound Strategy Series II 2-Way contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The Strategy Series II 2-Way In-Ceiling Loudspeaker System (Pair) from Atlas Sound provides superior coaxial loudspeaker performance with wide dispersion and easy installation. The high-intelligibility voice, music, and signal reproduction is ideal for commercial, industrial, and institutional applications. Wide coverage and a low profile enclosure make these speakers perfect for installation in low ceilings. These speakers deliver high fidelity sound reproduction in an attractive, easy-to-install system. - 4-pole detachable "phoenix" style connector allows easy pre-wiring and is convenient for daisy chaining additional Strategy full range speakers or subwoofers
- Easy installation in drop tile or sheetrock ceilings via C-Ring / V-Rail tile bridge and "Dog Leg" mounting system (included)
- Enhanced quality 70.7V/100V internal transformers minimize insertion loss and maintain low frequency response while providing increased output for higher SPL applications
- Extended low frequency response from the 285 cubic inch optimally tuned and ported deep drawn galvanized steel enclosure
- Front mounted tap selector switch for easy system tuning adjustments includes transformer bypass setting for 8 ohm direct coupled operation
- Unique "trap door" input section allows for through conduit runs with rigid or flex conduit
- "Press fit" grilles blend better into contemporary architecture
UPC: 612079186242 In the Box Atlas Sound Strategy Series II 2-Way In-Ceiling Loudspeaker System (Pair) Mounting Hardware 3-Year Limited Warranty Brochure PDF 766.5kbtvssevftbrswdewffzeawvssddfyyecs Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound Strategy Series II 2-Way In-Ceiling Loudspeaker System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound FAP42T-UL2043 Specs | Woofer | 4" (102mm) Poly Cone with Butyl Rubber Surround | | Frequency Range | 75Hz - 20kHz (±7dB) | | Power Handling | 25 Watts | | Sensitivity | 88dB Average | | Dispersion | 130° | | Power Rating | 25 Watts | | Transformer Taps | 1, 2, 4, 8, & 16 Watts & 8Ω | | Rating | UL Listed/Standard: 1480 / 2043 | | Connectors | 4-pole detachable Phoenix-style / Euro connector | | Dimensions | 10.5" (26.7 cm) diameter x 8.87" (22.5 cm) | | Weight | 12 lb (5.44 kg) | | | | Package Weight | 23.5 lb | | Box Dimensions (LxWxH) | 28.0 x 17.0 x 12.5" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 43 owners. Add your rating and experience with the product.
