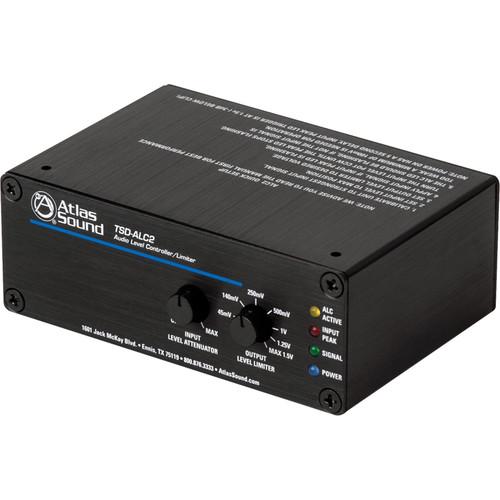

Product description The Atlas Sound TSD-ALC2 - Audio Level Controller and Limiter is an automatic 2-channel audio level controller and limiter designed to allow designers and installers to set predetermined maximum source levels. The device is useful for installations with multiple program sources of varying output levels such as satellite receivers, MP3 players, and more.
The unit is inserted in line with these sources so that the audience will not be distracted during high-volume commercial breaks or when different inputs are selected. The device is useful in retail stores, restaurants, sports bars, hotels, event centers, and other similar facilities.

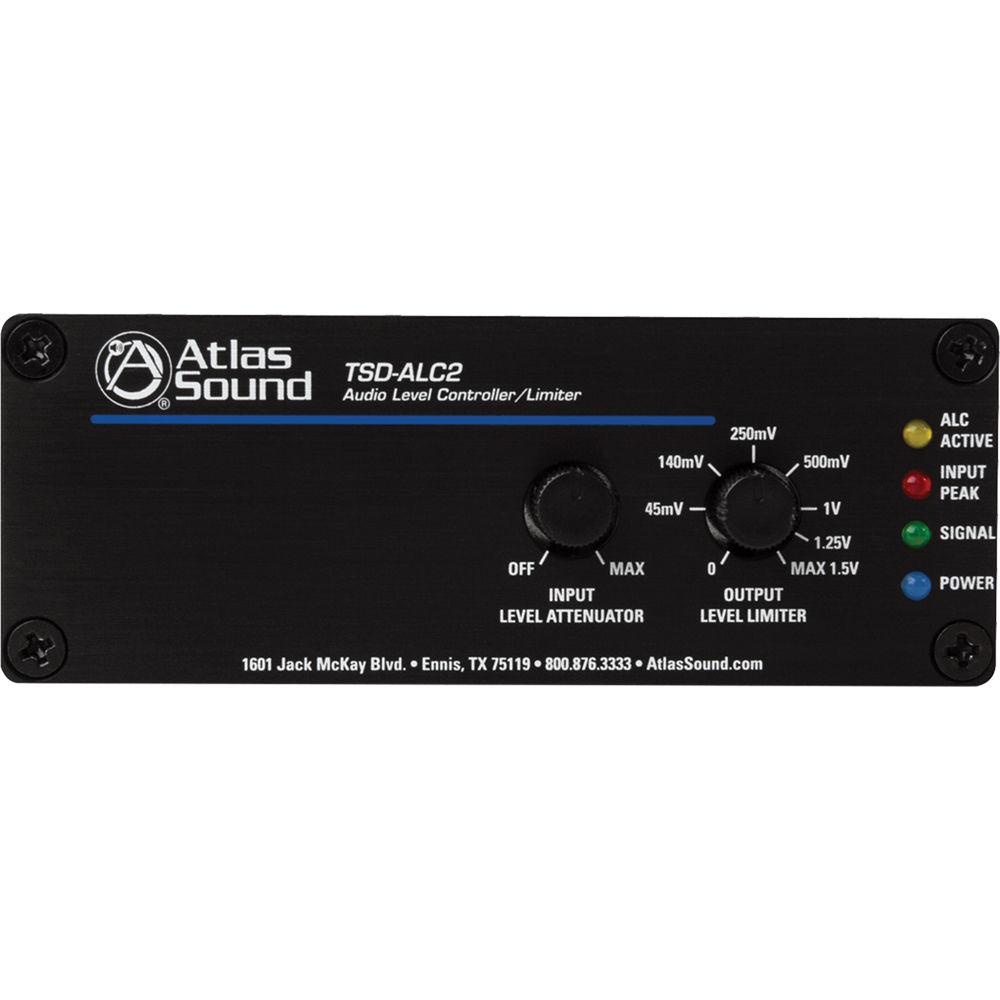

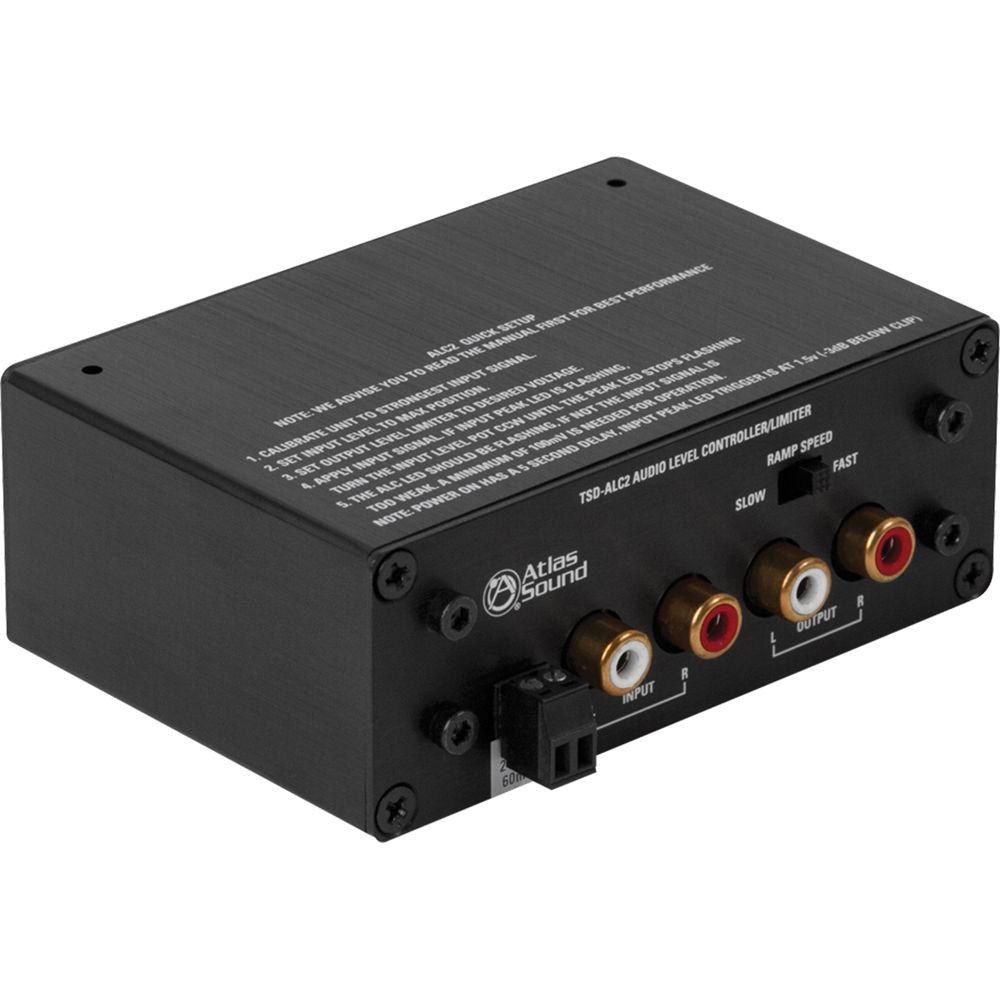

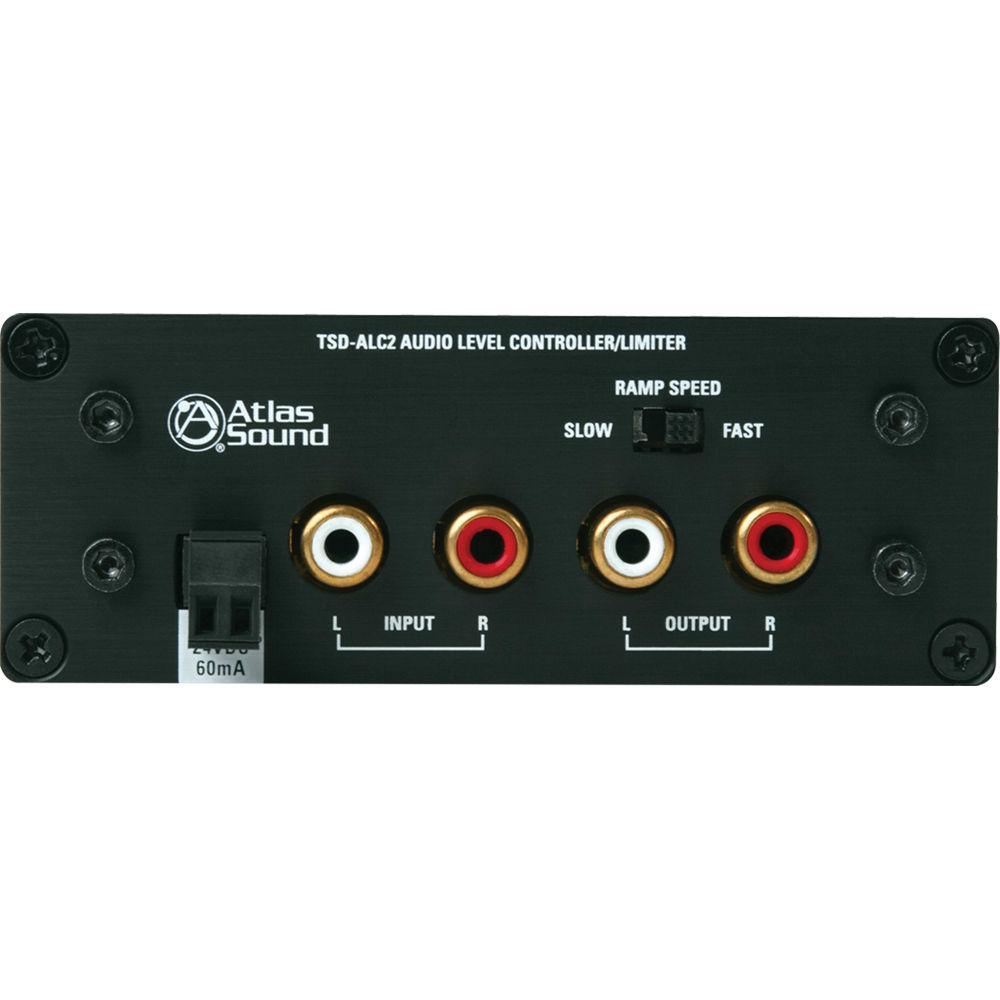

The device features unbalanced stereo RCA input and output connectors, a threshold level control, a ramp speed selector, and output gain adjustment controls. The unit also works well when used in conjunction with Atlas Strategy Series Mixer Amplifiers.
The device is designed to be energy efficient and meets most energy standards. One 24 VDC power supply (sold separately) can power multiple units, depending on overall current requirements. The front-panel controls can be locked to prevent unauthorized changes using the included front panel security covers. UPC: 612079187959 In the Box Atlas Sound TSD-ALC2 - Audio Level Controller and Limiter 2 x Front-Panel Security Covers Hook and Loop Fastener 2 x Brackets 2 x Cable Retainers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-ALC2 - Audio Level Controller and Limiter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound TSD-ALC2 Specs | Inputs | 2x unbalanced left and right RCA | | Input Impedance | 10 kΩ | | Outputs | 2x unbalanced left and right RCA | | Output Impedance | 150 Ω | | Output Level | Adjustable from 0 to 1.5 V, hard limit | | Controls | Input level attenuation: 1x removable knob with security cover
Output level limiter: Adjustable from 0 to 1.5V hard limit | | Indicators | Input signal: Green, 25 mV on threshold Input peak: Red, -3 dB before clip ALC active: Yellow, onset of input level reduction, 2.6 V threshold Power: Blue | | Frequency Response | 20 to 20,000 Hz (±1 dB) | | Threshold Range | 25 to 3,000 mV | | THD | 0.5% at 1,000 Hz | | Signal to Noise Ratio | 80 dBV | | Output Level | Limiter range: 0 to 1.5 V | | Sample Rate | 42 per adjustment | | Delay | 20 ms between adjustment | | Adjustments | 1 dB or 2 dB selectable | | Mounting | Industrial-grade hook and loop fastener | | Brackets | 2 | | Rackmountable | Up to four units using optional 1 RU rackmount panel | | Cable Retention | 2 | | Voltage | 24 VDC | | Amperage | 60 mA | | Power Consumption | 1.4 W | | Dimensions (H x W x D) | 1.5 x 4 x 2.75" (39.0 x 101 x 70.0 mm) | | Weight | 6.00 oz (165 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 5.2 x 3.6 x 2.4" |
