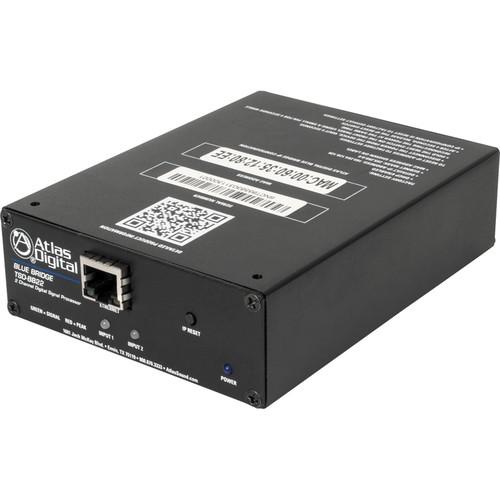

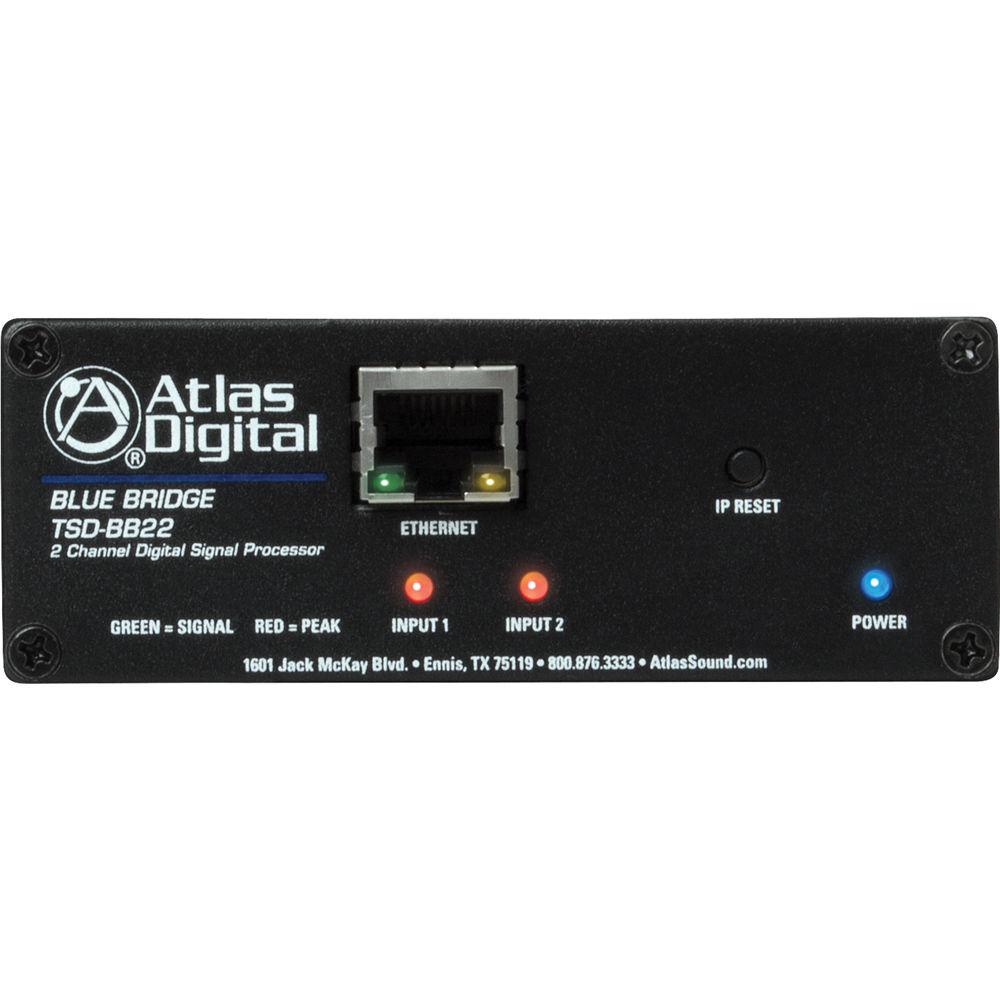

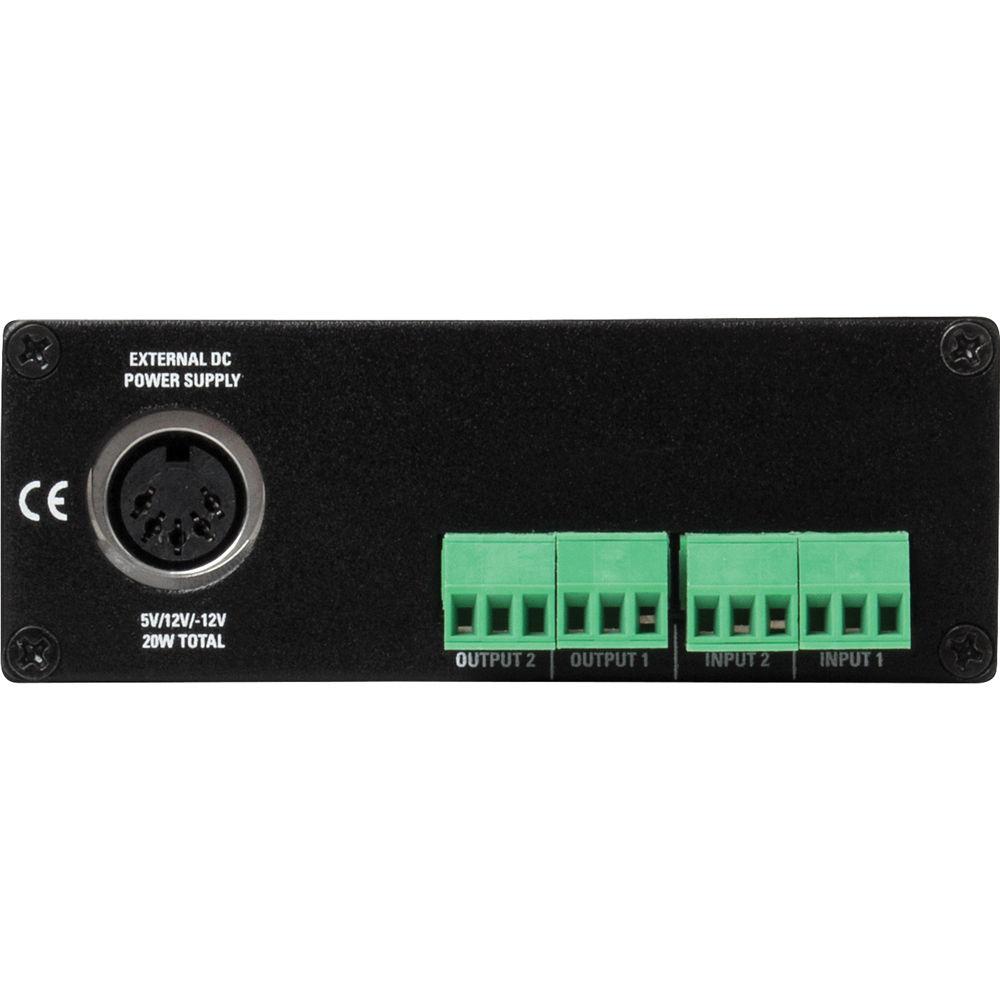

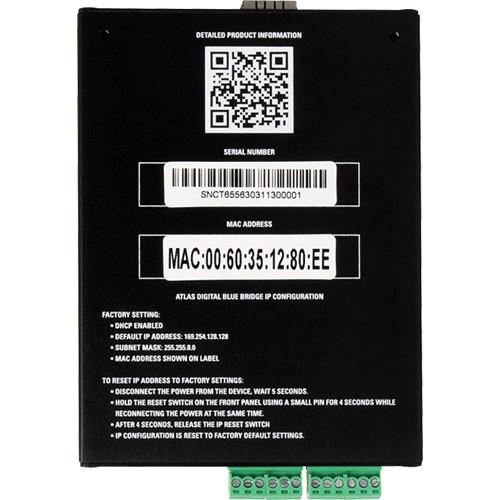

Product description The TSD BlueBridge 2 Input / 2 Output DSP Audio Processor from Atlas Sound is a platform designed for sound reinforcement and AV applications. The DSP Processor can provide audio and Ethernet connectivity for TCP/IP third party control and programmability. Using microphone preamps from THAT Corporation and 24-bit converters, this processor obtains a low noise floor. The 40-bit floating point DSP engine is designed to prevent digital clipping and to obtain maximum speed and power to process advanced algorithms in complex system designs. The unit can operate on any network, and when connected, the processor will be recognized and controllable. The TSD BlueBridge processors offer fixed application embedded designs and the ability to design custom drag and drop systems. The TSD processor can be used for system designs that require limited I/O's, but require a modern DSP platform. The design can be used as a standalone device to run a sound system or as a supplement to an existing system. - Drag and Drop architecture
- Mic or Line selectable inputs
- Balanced high gain outputs
- Output peak and signal indicator LEDs
- Ethernet network connectivity
- 48 kHz, 40-bit floating DSP engine
- External power supply included
In the Box Atlas Sound TSD BlueBridge 2 Input / 2 Output DSP Audio Processor External Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD BlueBridge 2 Input 2 Output DSP Audio Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound TSD-BB22 Specs | Input Type | Mic or Line, GUI selectable | | Configuration | Electronically balanced | | Gain | -40 to +15 dB in 0.25 dB Steps | | Polarity | +/-, GUI selectable | | Input Impedance | >10 kOhms | | Maximum Input Level | +20 dBu | | Phantom Power | 48 V, GUI Enabled | | Output Type | Line | | Ouput Impedance | 50 ohms | | Maximum Output Level | +20 dBu | | Frequency Response | 20 Hz - 20 kHz | | Dynamic Range | 110 dB Type (unweighted) | | Common Mode Rejection Ratio | >100 dB (50 Hz - 10 kHz) | | Distortion | 0.002% (1 kHz @ +4 dBu) | | Dimensions (HxWxD) | 1.5 x 4.0 x 5.2" (3.9 x 10.1 x 13.2 cm) | | Weight | 13 oz (368 g) | | External Power Supply | cUL, CE, RoHS, TUV | | | | Package Weight | 3.88 lb | | Box Dimensions (LxWxH) | 13.25 x 10.5 x 2.9" |
