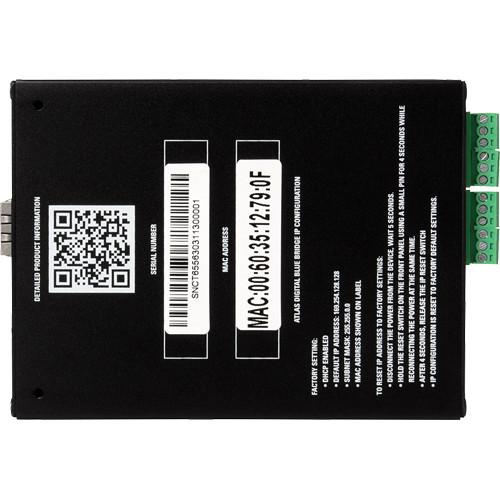

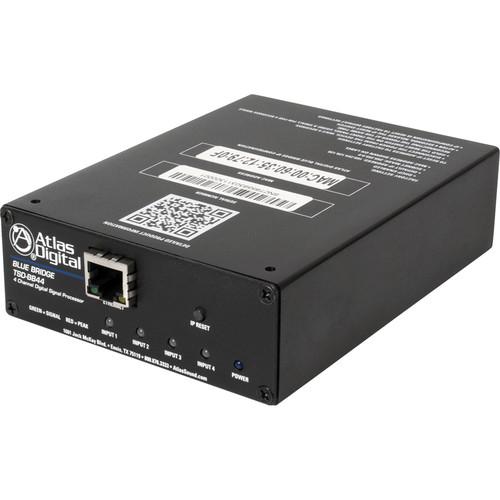

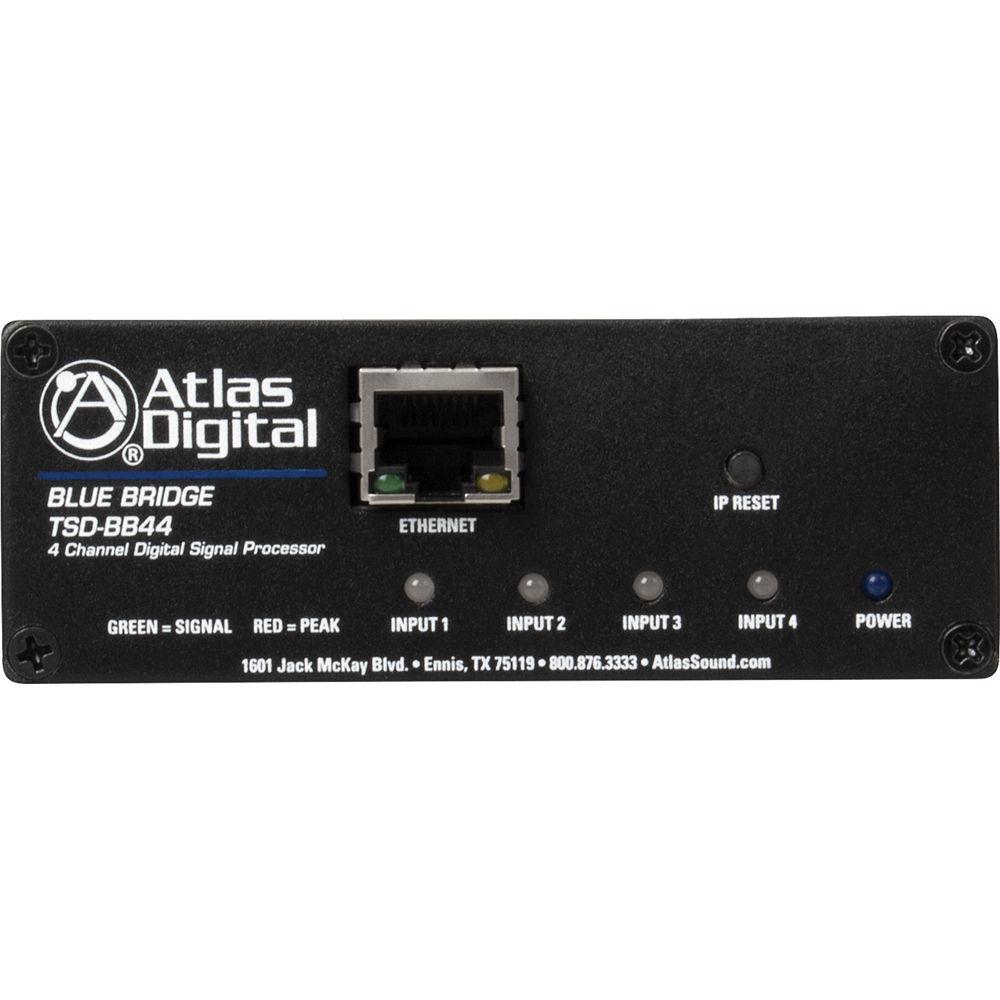

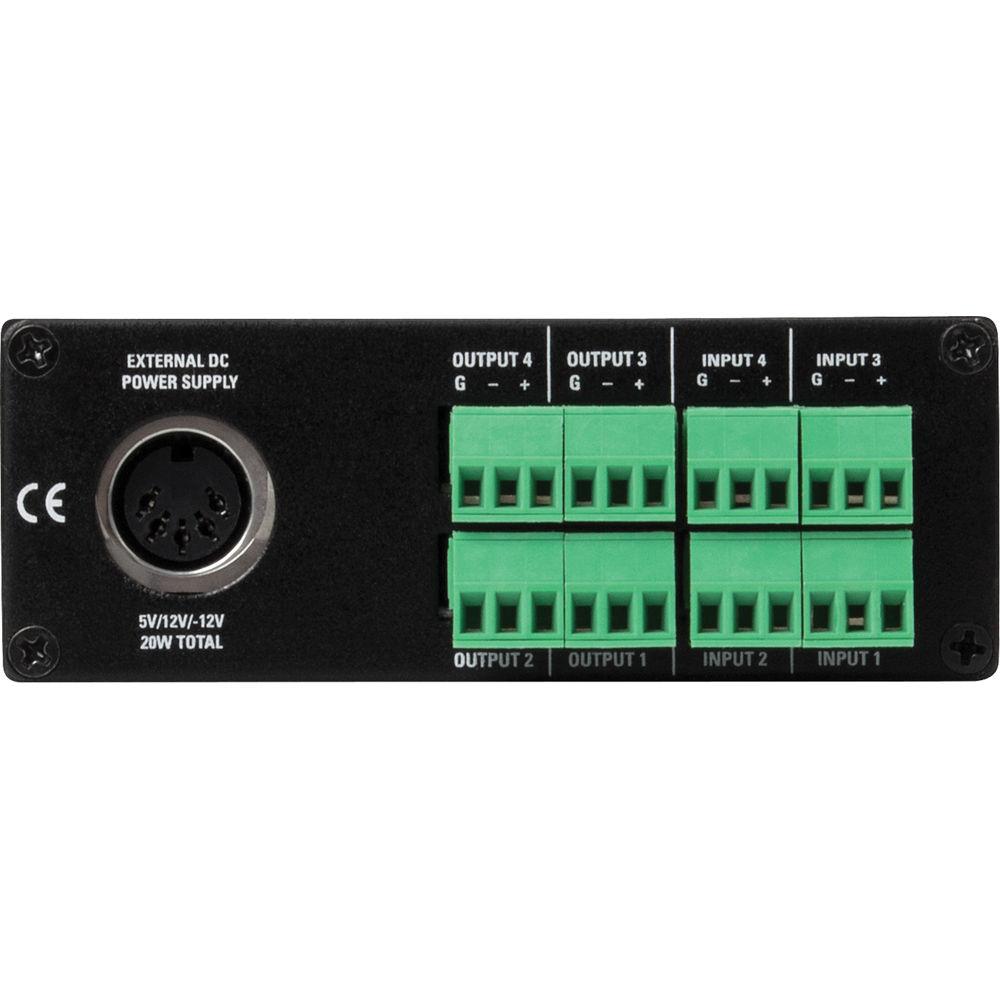

User Manual for Atlas Sound TSD BlueBridge 4 Input 4 Output DSP Audio Processor Click to enlarge the picture
Contents of the user manual for the Atlas Sound TSD BlueBridge 4 Input
- Product category: Networked Audio Systems Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Networked Audio Systems
 |
User manual for the Atlas Sound TSD BlueBridge 4 Input contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The TSD BlueBridge 4 Input / 4 Output DSP Audio Processor from Atlas Sound is a platform designed for sound reinforcement and AV applications. The DSP Processor can provide audio and Ethernet connectivity for TCP/IP third party control and programmability. Using microphone preamps from THAT Corporation and 24-bit converters, this processor obtains a low noise floor. The 40-bit floating point DSP engine is designed to prevent digital clipping and to obtain maximum speed and power to process advanced algorithms in complex system designs. The unit can operate on any network, and when connected, the processor will be recognized and controllable. The TSD BlueBridge processors offer fixed application embedded designs and the ability to design custom drag and drop systems. The TSD processor can be used for system designs that require limited I/O's, but require a modern DSP platform. The design can be used as a standalone device to run a sound system or as a supplement to an existing system. - Drag and Drop architecture
- Mic or Line selectable inputs
- Balanced high gain outputs
- Output peak and signal indicator LEDs
- Ethernet network connectivity
- 48 kHz, 40-bit floating DSP engine
- External power supply included
UPC: 612079189496 In the Box Atlas Sound TSD BlueBridge 4 Input / 4 Output DSP Audio Processor External Power Supply Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD BlueBridge 4 Input 4 Output DSP Audio Processor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound TSD-BB44 Specs | Input Type | Mic or Line, GUI selectable | | Configuration | Electronically balanced | | Gain | -40 to +15 dB in 0.25 dB Steps | | Polarity | +/-, GUI selectable | | Input Impedance | >10 kOhms | | Maximum Input Level | +20 dBu | | Phantom Power | 48 V, GUI Enabled | | Output Type | Line | | Ouput Impedance | 50 ohms | | Maximum Output Level | +20 dBu | | Frequency Response | 20 Hz - 20 kHz | | Dynamic Range | 110 dB Type (unweighted) | | Common Mode Rejection Ratio | >100 dB (50 Hz - 10 kHz) | | Distortion | 0.002% (1 kHz @ +4 dBu) | | Dimensions (HxWxD) | 1.5 x 4.0 x 5.2" (3.9 x 10.1 x 13.2 cm) | | Weight | 15 oz (425 g) | | External Power Supply | cUL, CE, RoHS, TUV | | | | Package Weight | 3.545 lb | | Box Dimensions (LxWxH) | 13.2 x 10.5 x 2.8" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 32 owners. Add your rating and experience with the product.
