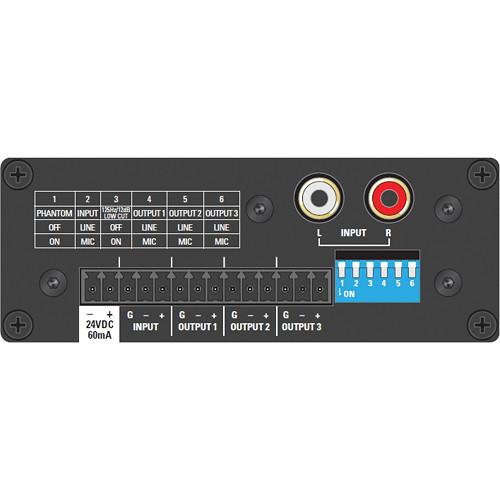

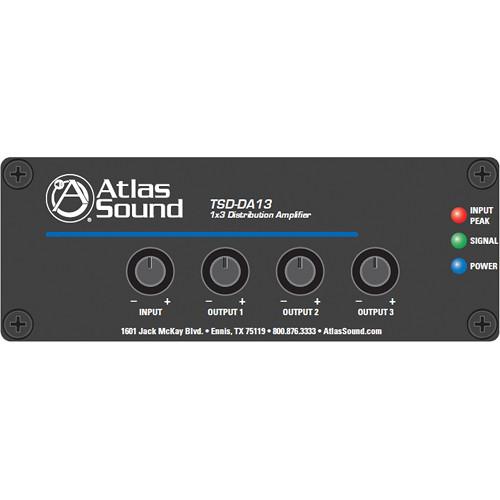

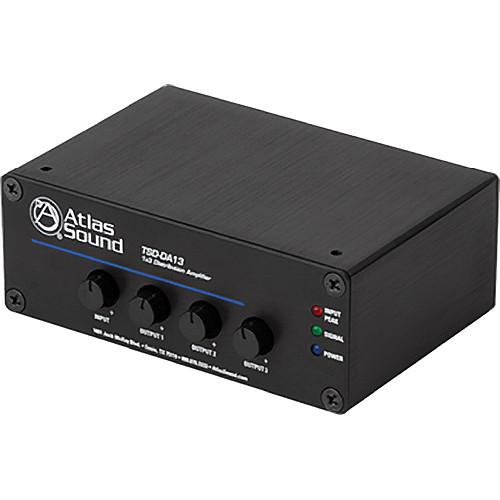

Product description The TSD-DA13 1x3 Distribution Amplifier from Atlas Sound is designed to send a balanced mic or line level input to three variable outputs for multiple configuration use in churches, restaurants, sports bars, schools, or industrial facilities. It features a Phoenix-style mic/line selectable input with 24-volts phantom power and a high-pass filter at 125Hz. It also has a pair of stereo summed RCA inputs. These inputs are routed to the three mic/line level selectable Phoenix style outputs. The outputs are isolated to prevent crosstalk, mismatched input impedance, and can be used to drive long balanced lines.
The unit features an aluminum chassis as well as LED signal and peak indicators. A 24-volt DC power supply is required. UPC: 612079187768 In the Box Atlas Sound TSD-DA13 1x3 Distribution Amplifier Limited 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-DA13 1x3 Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Atlas Sound TSD-DA13 1x3 Distribution Amplifier can be downloaded in PDF format at the link stated below.
Technical parametersAtlas Sound TSD-DA13 Specs | Inputs | 1x Phoenix Style Mic/Line Input
1x Stereo Summed RCA Inputs | | Input Level | Stereo Summed RCA: 316 mV (-10 dBV)= 2V (6 dBV) Balanced Output Maximum Input 6 V (15 dBV)
Phoenix Style Line Level: 1 V (0 dBV) Balanced= 2 V (6 dBV) Balanced Output, Maximum Input 6 V (15 dBV)
Phoenix Style Mic Level: 46 dB Gain 10 mV (-40 dBV) Balanced= 2 V (6 dBV) Balanced Output, Maximum Input 40 mV (-27 dBV) | | Input Impedance | Stereo Summed RCA: 10 kΩ
Phoenix Style: 1.2 kΩ (Balanced), 600 Ω (Unbalanced) | | Phantom Power | 24 VDC (Defeatable) | | Low Cut Filters | -12 dB @ 125 Hz (Defeatable) | | Outputs | 3x Mic/Line Phoenix Style | | Output Level | Line Level Output: 1 V (0 dBV) In= 2 V (6 dBV) Balanced, Maximum Output 6 V (15 dBV)
Mic Input Versus Mic Output Level: 10 mV (-40 dBV) In= 80 mV (-21 dBV), Maximum Output 300 mV (-10 dBV) | | Controls | 1x Input Level Control Knob with Security Cover
3x Output Level Control Knobs with Security Covers
Dip Switch Function:
Phantom Power 24 VDC
Input Mic/Line Select
Input 125 Hz/12 dB High-Pass Filter
Output Quantity 3, Mic/Line Select | | Indicators | Input Signal: Green, 25 mV on Threshold
Input Peal: Red, -3 dB Before Clip
Power: Blue | | Frequency Response | 20 Hz to 20 kHz (±1 dB) | | THD | .06 % @ 1 kHz | | Signal to Noise Ratio | Line to Line: 85 dBV
Mic to Line: 78 dBV
Line to Mic: 55 dBV
Mic to Mic: 55 dBV | | Power Requirements | Voltage: 24 VDC
Power Consumption: 60 mA, 1.4 W | | Dimensions (H x W x D) | 1.5 x 4 x 2.75" (3.9 x 10.1 x 7.0 cm) | | Weight | 6 oz (165 g) | | | | Package Weight | 0.6 lb | | Box Dimensions (LxWxH) | 5.1 x 3.7 x 2.5" |
