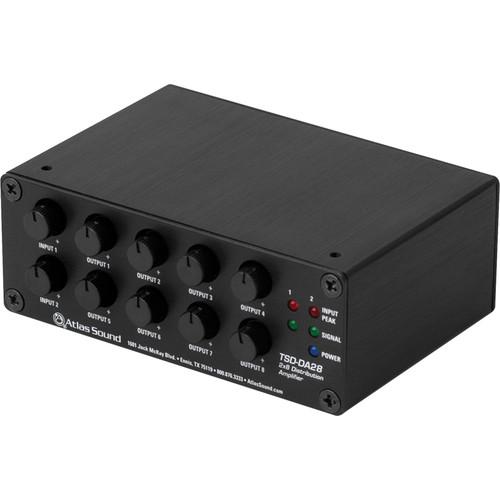

Product description The TSD-DA28 2x8 Distribution Amplifier from Atlas Sound is designed to provide clean, isolated signal distribution locally or to remote locations. The unit allows two independent balanced line level source inputs to be distributed to eight isolated variable outputs for applications including convention centers, houses of worship, restaurants/sports bars, and industrial facilities.
Isolation between outputs prevents crosstalk, removes miss matched input impedance concerns, and allows for adjustable levels on each connected device. All input and output is via Phoenix style connectors for installation convenience and inputs may be easily paralleled for 1 in/ 8 out configuration. - Eight Isolated Balanced Line Outputs

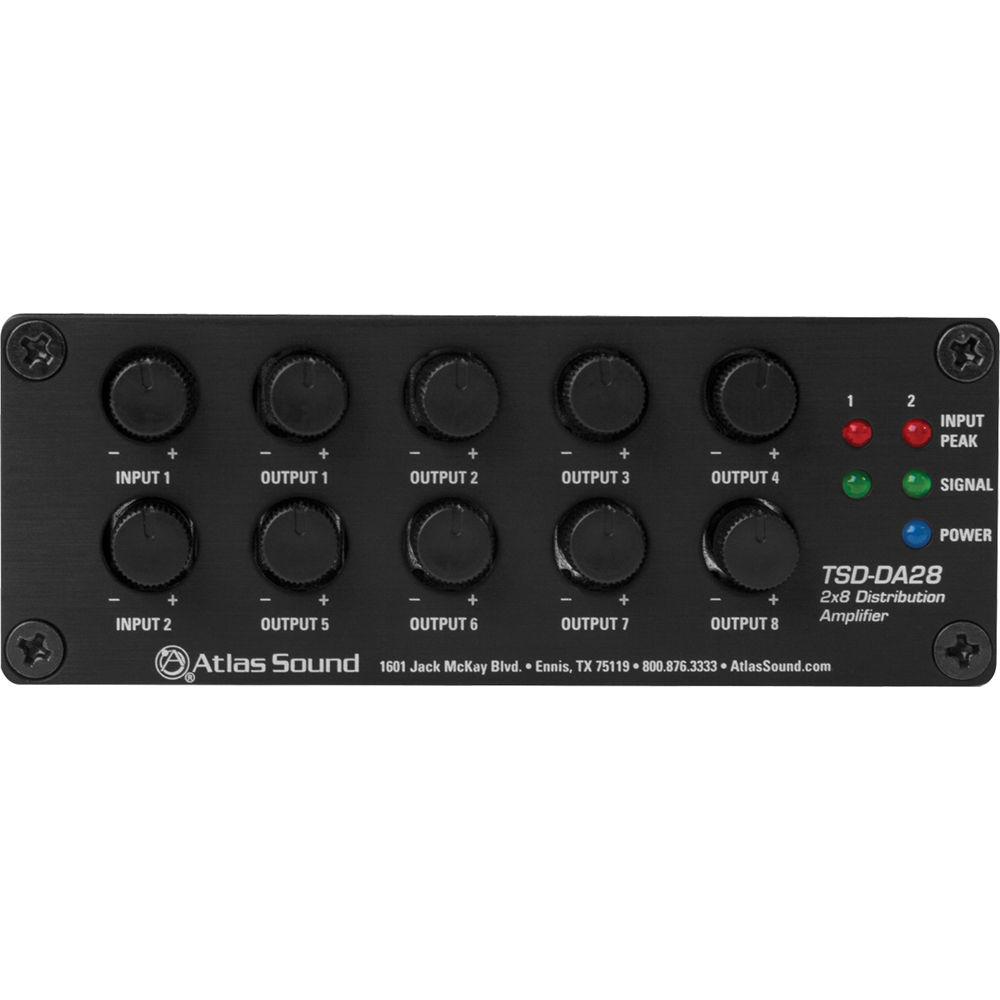

- Signal & Peak Indicator LED's For Each Channel
- High Gain Output for Driving Long Balanced Lines
- Separate Ground Connections

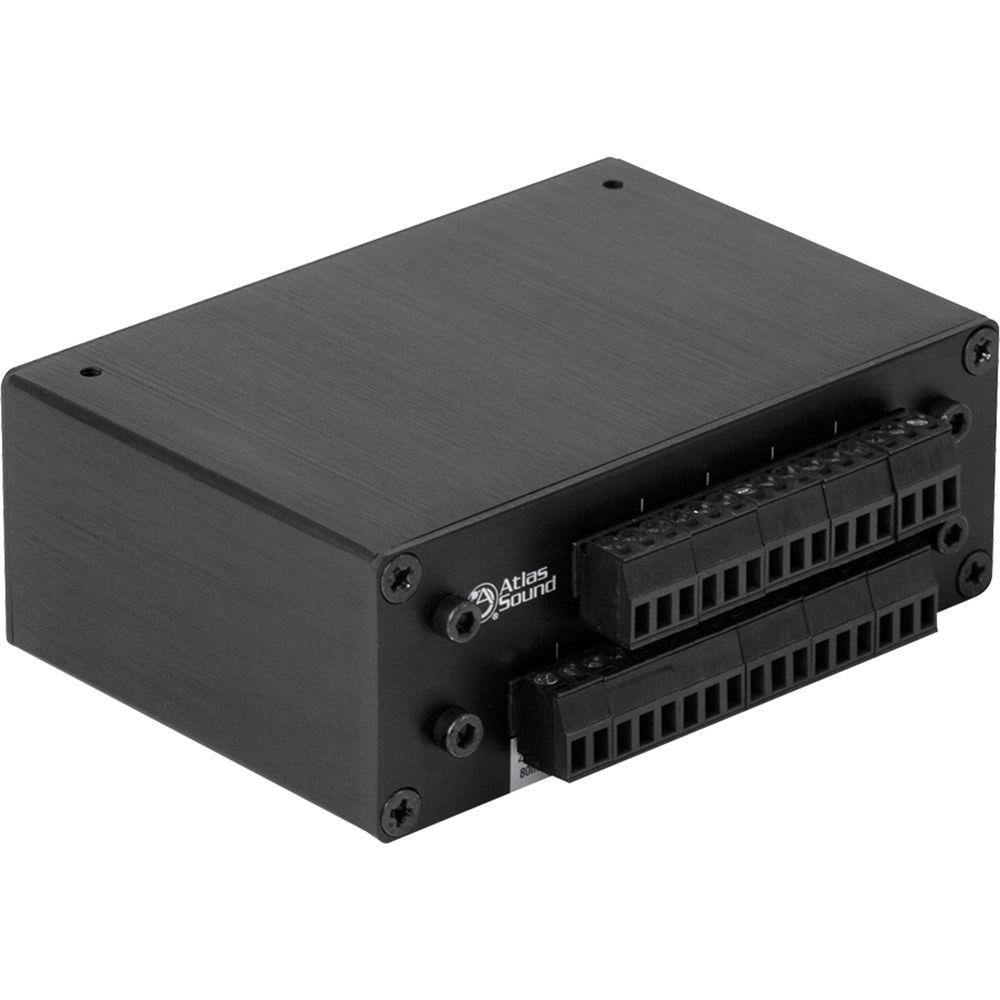

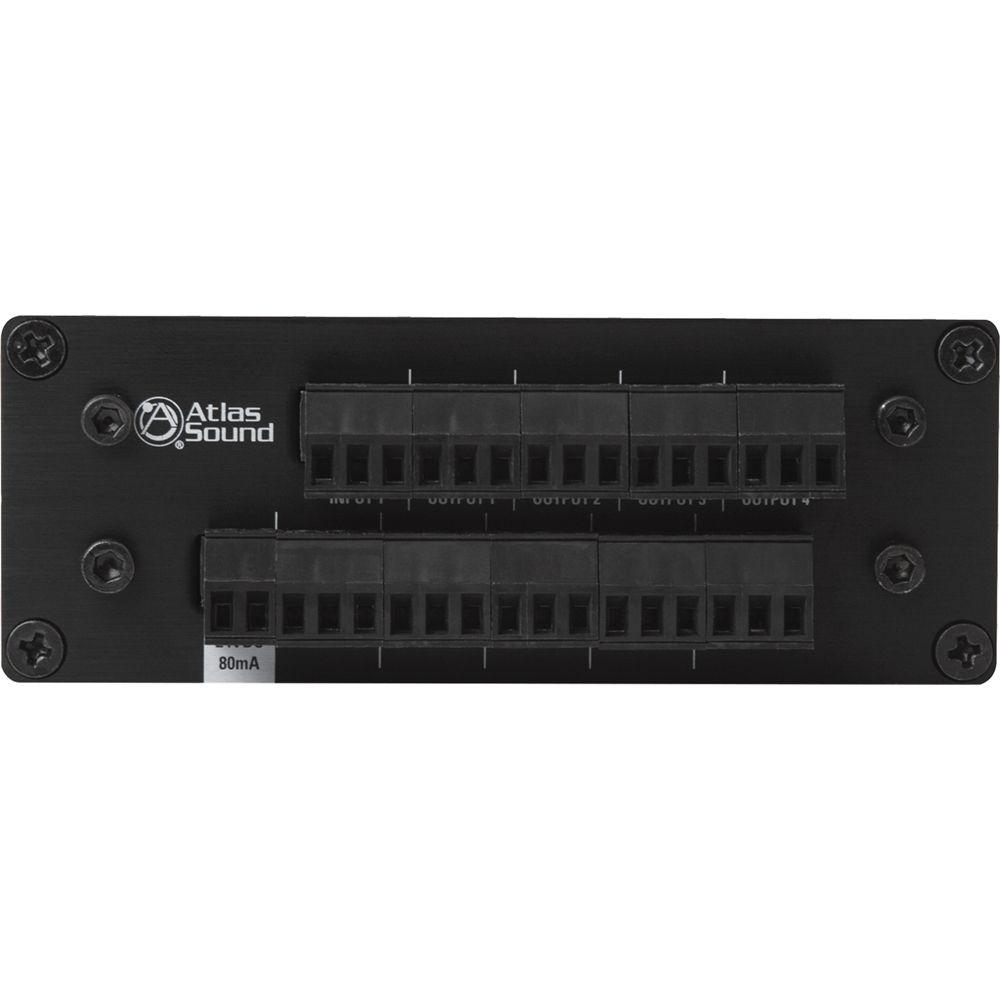

- Removable Phoenix Style I/O Connectors
- Security Covers Included for All Front Panel Controls
UPC: 612079187775 In the Box Atlas Sound TSD-DA28 2x8 Distribution Amplifier Set of Hook and Loop Fasteners 2 x Brackets 2 x Cable Retainers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-DA28 2x8 Distribution Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound TSD-DA28 Specs | | | Type | 2x Balanced line selectable removable 3-position captive screw 1/8" (3.5 mm) | | Impedance | Balanced: 10 kΩ
Unbalanced: 5 kΩ | | Line Input Level | 1 V (0 dBV) Balanced = 2 V (+6 dBV) Balanced Output
Maximum Input: 6 V (15 dBV) | | | | Type | 8x Balanced mic or line selectable removable 3-position captive screw 1/8" (3.5 mm) | | Impedance | Balanced: 300 Ω
Unbalanced: 150 Ω | | Line Output Level | 1 V (0 dBV) In = 2 V (+6 dBV) balanced
Maximum Output: 6 V (15 dBV) balanced | | | | Input Level | 2x Removable knobs with security | | Output Level | 8x Removable knobs with security covers | | | | Input Signal | Green, 25 mV On threshold | | Peak | Input Peak: Red, -3 dB before clip | | Power | Blue | | | | Frequency Response | 20 Hz to 20 kHz (±1 dB) | | THD | 0.06% @ 1 kHz | | Signal to Noise Ratio | 90 dB | | | | Voltage | 24 V DC | | Power Consumption | 80 mA
1.92 W | | | | Dimensions (H x W x D) | 1.50 x 4.00 x 2.75" (39 x 101 x 70 mm) | | Weight | 6 oz (165 g) | | | | Package Weight | 26.0 lb | | Box Dimensions (LxWxH) | 5.2 x 3.6 x 2.4" |
