User Manual for Atlas Sound TSD-DCPDV Variable DC Power Distribution Click to enlarge the picture
Contents of the user manual for the Atlas Sound TSD-DCPDV Variable DC Power
- Product category: Power Supplies Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Power Supplies
 |
User manual for the Atlas Sound TSD-DCPDV Variable DC Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The Atlas Sound TSD-DCPDV Variable DC Power Distribution is designed to distribute power to TSD devices or other equipment requiring DC power without the need for separate power supplies. The TSD-DCPDV can help remove rack clutter and free up power strip space. It can also be used with wireless microphones that typically require 12-18 VDC PSUs.

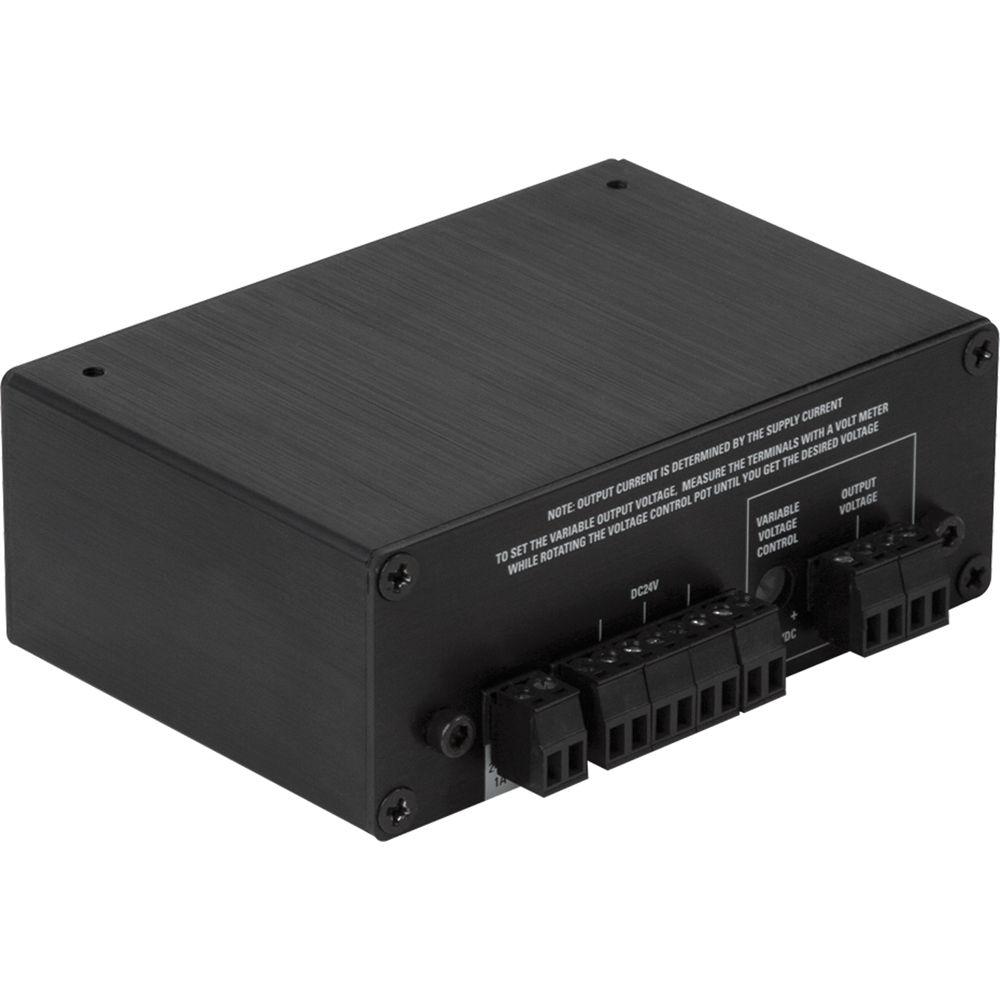

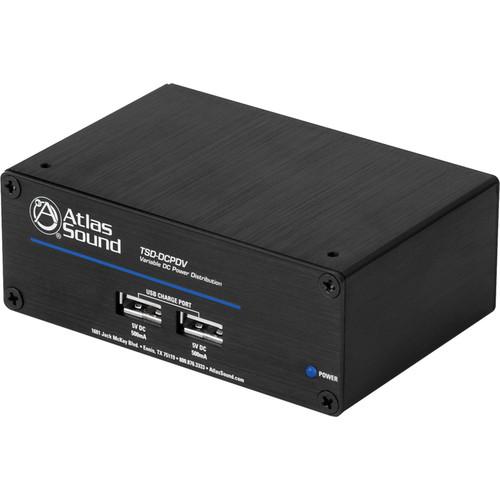

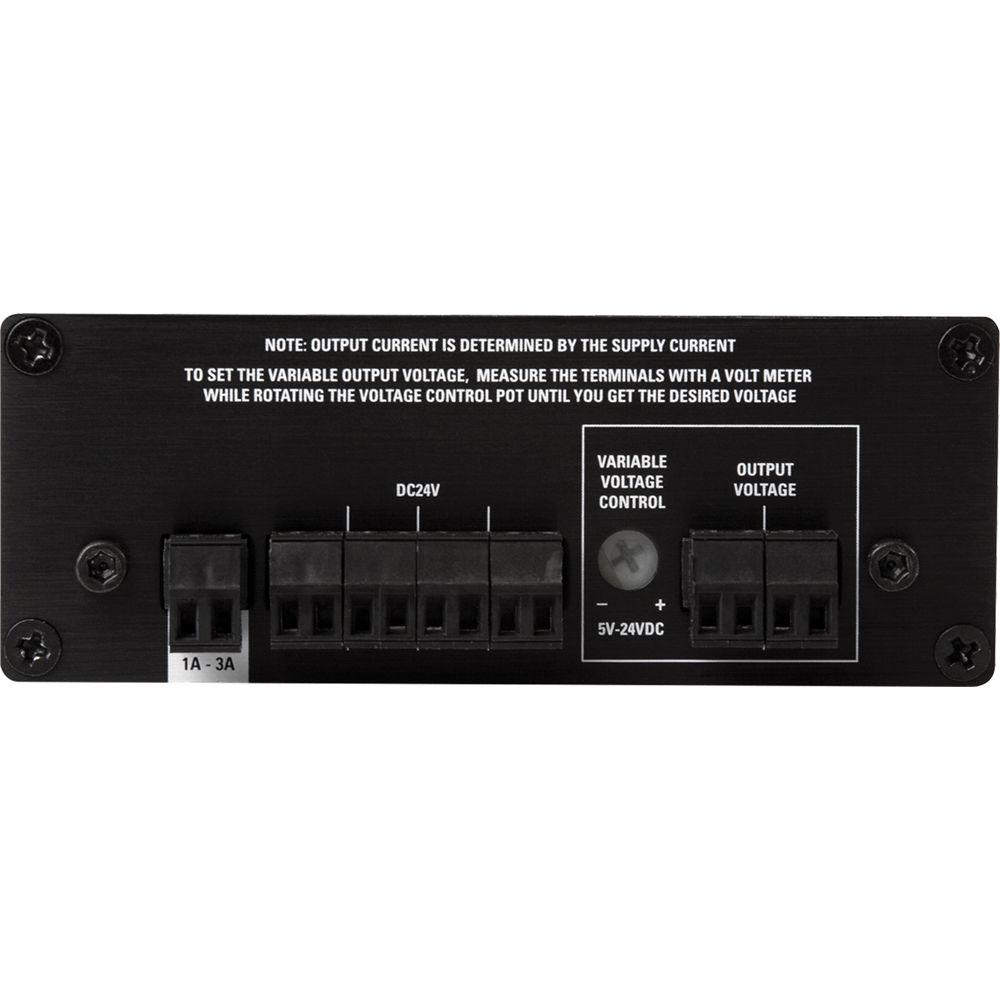

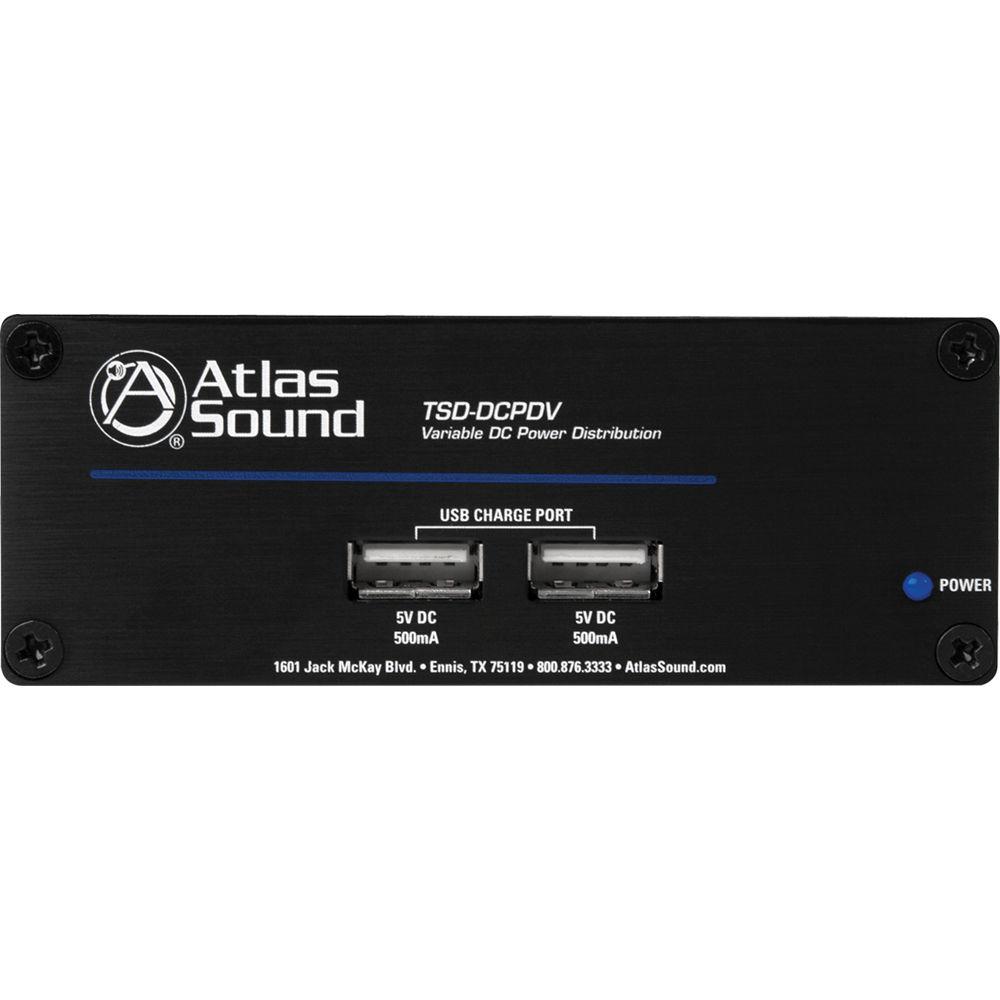

Its rear panel includes one 9-24V input for a user selectable power supply up to 2500mA, four fixed 24V outputs, and two 5-24V variable outputs. Voltage for variable outputs is adjusted from a secure trim pot. In addition, two front panel USB ports are available for charging other devices or for USB style rack lighting. The TSD-DCPDV requires a power supply (available separately) for operation. - Audio Applications
-
- Wireless Microphone Power Supplies
- TSD Power Distribution
- Reduce AC Outlets from Power Strips
- Power Distribution for Multiple TSDs from a single PSU
- Four Fixed 24 VDC Outputs
- Two Variable 5V - 24 VDC Outputs
- Two USB 5 VDC Charge Ports
- Current Operating Range 1A to 3A
- Multiple Mounting Configurations
- Separate Ground Connections
- Removable Phoenix Style I/O Connectors
In the Box Atlas Sound TSD-DCPDV Variable DC Power Distribution Set of Hook and Loop Fasteners 2 x Brackets 2 x Cable Retainers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-DCPDV Variable DC Power Distribution in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound TSD-DCPDV Specs | | | DC Voltage | 1 to 3 A, 24 V DC, 3 A Max | | Connection | 1x Removable 2 Position Captive Screw 1/8" (3.5 mm) Spacing | | | | DC Voltage | DC Voltage Output Fixed:
Captive Screw: 24 V DC, Current Output Related to Input Power Supply and Load
USB: 5 V DC, 500 mA Each Power Supply and Load
DC Voltage Variable:
Ports 1 Adjustable Voltage, Variable DC Output 5 to 24 V DC, 500 mA Each | | Connection | 4x Removable 2 Position Captive Screw 1/8" (3.5 mm) Spacing
2x USB Charge Ports | | | | Controls | 1x Variable DC Adjust Recess Pot | | | | Isolation | Active | | Filters | DC Storage & AC Ripple | | Current | Over Current: Auto Reset Thermal Switch for Variable Output | | | | Power Requirements | Idle: 10 mA | | | | Chassis | Aluminum | | Dimensions (HxWxD) | 1.5 x 4.0 x 2.8" (39 x 101 x 70 mm) | | Weight | 6 oz (165 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 5.2 x 3.6 x 2.4" |
