User Manual for Atlas Sound TSD-GPN1200 Sound Masking Generator Click to enlarge the picture
Contents of the user manual for the Atlas Sound TSD-GPN1200 Sound Masking Generator
- Product category: Cable Testers & Tone Generators Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Cable Testers & Tone Generators
 |
User manual for the Atlas Sound TSD-GPN1200 Sound Masking Generator contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

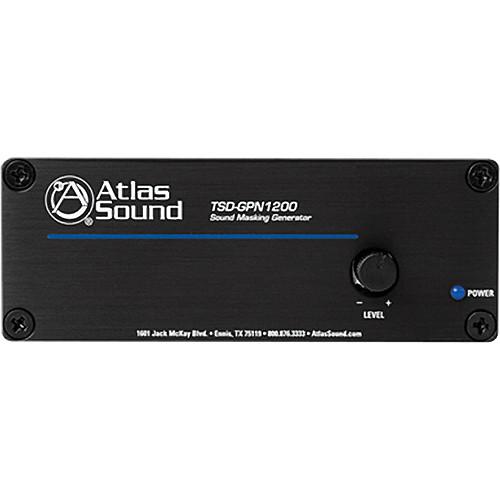

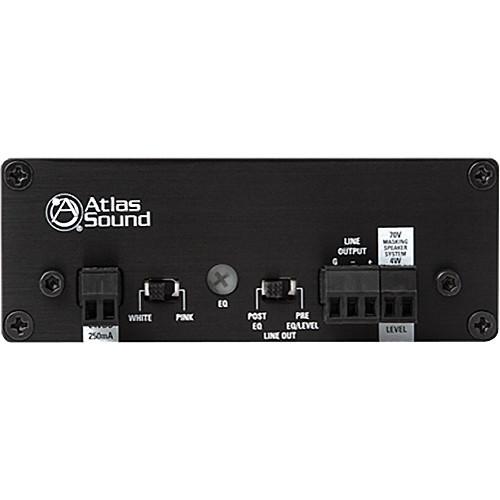

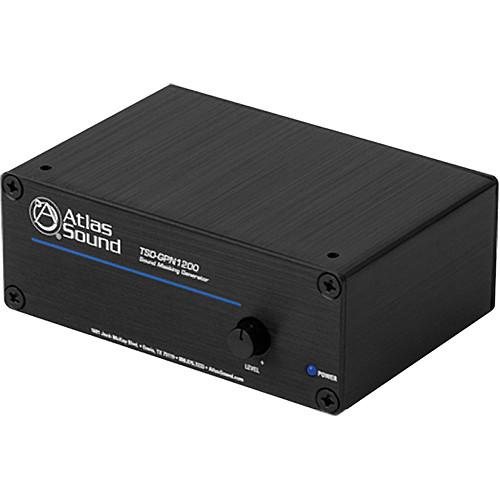

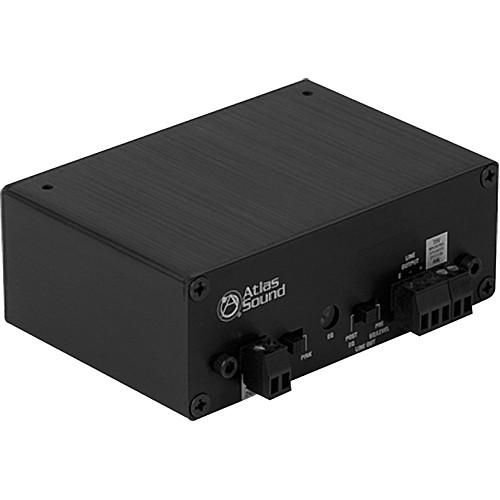

Product description The TSD-GPN1200 Sound Masking Generator from Atlas is an analog generator that allows selection between pink or white noise sources. It is equipped with a variable balanced output to match input requirements for equalizers and amplifiers and delivers 4W, 70V output for powering up to six-masking loudspeakers tapped at .5W each.Featuring a variable hi-cut filter, operating range between 1 kHz and 8 kHz, and a slope of 6 dB per octave, the TSD-GPN1200 supports equalization for most basic sound masking systems. Both outputs may be used simultaneously allowing large zones to be addressed with external equalization and amplification, while a smaller zone is powered by the internal 70.7V amplifier with spectrum control provided by the onboard hi-cut filter. In addition, this unit requires a 24 VDC, 250 mA power supply (sold separately). - Balanced line output plus 4W, 70.7V speaker output
- Adjustable gain and hi-cut filter
- Selectable pink or white noise generator
- Stand alone or rack mountable with multiple mounting configurations
- Variable low-pass EQ and gain bypass for line output
- Security covers included for all rear panel controls
- Separate ground connections
- Removable Phoenix style I/O connectors
- Meets Energy Star standards
UPC: 612079187935 In the Box Atlas Sound TSD-GPN1200 Sound Masking Generator Industrial Grade Hook & Loop Fastener 2 x Bracket 2 x Cable Retainer Limited 3-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-GPN1200 Sound Masking Generator in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound TSD-GPN1200 Specs | Chassis | Color: Black
Material: Aluminum | | | | Noise Generator | Internal pink or white, selectable | | | | Type | 1 x balanced line | | Connection | Removable 3-position captive screw 1/8" (3.5 mm) spacing | | Impedance | 300 Ohms balanced, 150 Ohms unbalanced | | Line Output Level | Maximum output 500 mV | | Type | 1 x speaker out 70.7 V masking system speakers | | Connection | Removable 3-position captive screw 1/8" (3.5 mm) spacing | | Line Output Level | Maximum output 4 W | | | | Level Control | 1 x removable knob with security cover | | Noise Generator | Noise Generator Select: Pink or white | | Line Output | Line Out Select: Pre or Post EQ | | EQ Type | EQ Adjust: Recessed screw driver | | | | Topology | Random analog | | Frequency Response | 20 Hz to 20 kHz line out pre EQ only | | Filter | EQ Filter: High cut, variable, 1 kHz to 8 kHz/6 dB | | | | Voltage | 24 VDC | | Power Consumption | Average: 100 mA, 2.4 W | | Dimensions (H x W x D) | 1.5 x 4.0 x 2.7" (39.0 x 101.0 x 70.0 mm) | | Weight | 6.0 oz (170.0 g) | | | | Package Weight | 0.69 lb | | Box Dimensions (LxWxH) | 5.3 x 3.75 x 2.75" |
