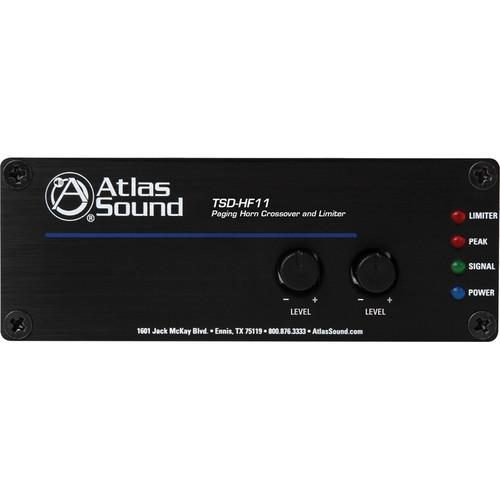

User Manual for Atlas Sound TSD-HF11 Paging Horn Crossover and Limiter Click to enlarge the picture
Contents of the user manual for the Atlas Sound TSD-HF11 Paging Horn Crossover
- Product category: Crossovers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Crossovers
|
User manual for the Atlas Sound TSD-HF11 Paging Horn Crossover contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The Atlas Sounds TSD-HF11 Paging Horn Crossover and Limiter is specifically designed for use with paging horns in applications where band pass filtering and power limiting is required. For I/O, the device features one detachable balanced Phoenix connector input, one RCA input, one detachable balanced Phoenix connector output, and one RCA output. For controls, it features input and output trim knobs, a selectable Hi-Pass filter via rear panel DIP switches (200 Hz, 300 Hz, 400 Hz, all pass), and a variable limiter to prevent excess signal from entering the amplifier. A security cover can be attached to the front panel to prevent unwanted changes to the system settings.
The unit can be used with a variety of paging horns and amplifiers as its full feature set allows individualized customization based on system requirements. Front rack, rear rack, and half rack mounting kits are available sold separately. The power supply for this unit is also sold separately. - Hi-Pass Filter
- Provides selectable DIP switch filtering at 200 Hz, 300 Hz, 400 Hz, and all pass
- Security Panel
- Prevents unwanted changes to control settings
UPC: 612079190317 In the Box Atlas Sound TSD-HF11 Paging Horn Crossover and Limiter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-HF11 Paging Horn Crossover and Limiter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound TSD-HF11 Specs | Input | 1x Phoenix
1x RCA | | Output | 1x Phoenix
1x RCA | | Input Impedance | 10 kΩ | | Input Level | 500 mV (-6 dB) balanced
316 mV (-10 dB) unbalanced | | Frequency Response | 20 to 15,000 Hz | | THD | 0.2% at 1,000 Hz | | High Cut Filter | Fixed at 15,000 Hz (18 dB/octave) | | Low Cut Filters | 200, 300 and 400 Hz (18 dB/octave via rear panel DIP switches) | | Power Requirements | 24 VDC 60 mA | | Dimensions (H x W x D) | 1.5 x 4 x 2.5" (38.0 x 101 x 63.5 mm) | | Weight | Not specified by the manufacturer | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 5.2 x 3.7 x 2.5" |
