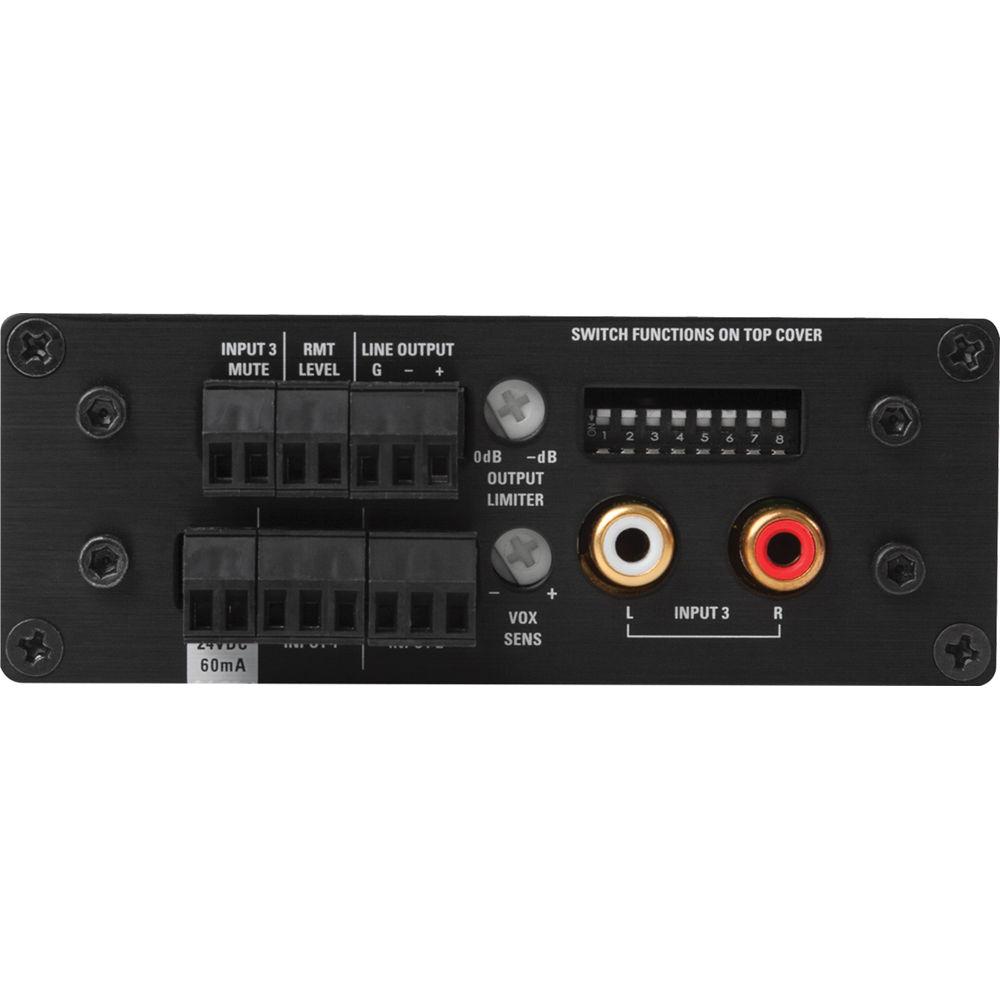

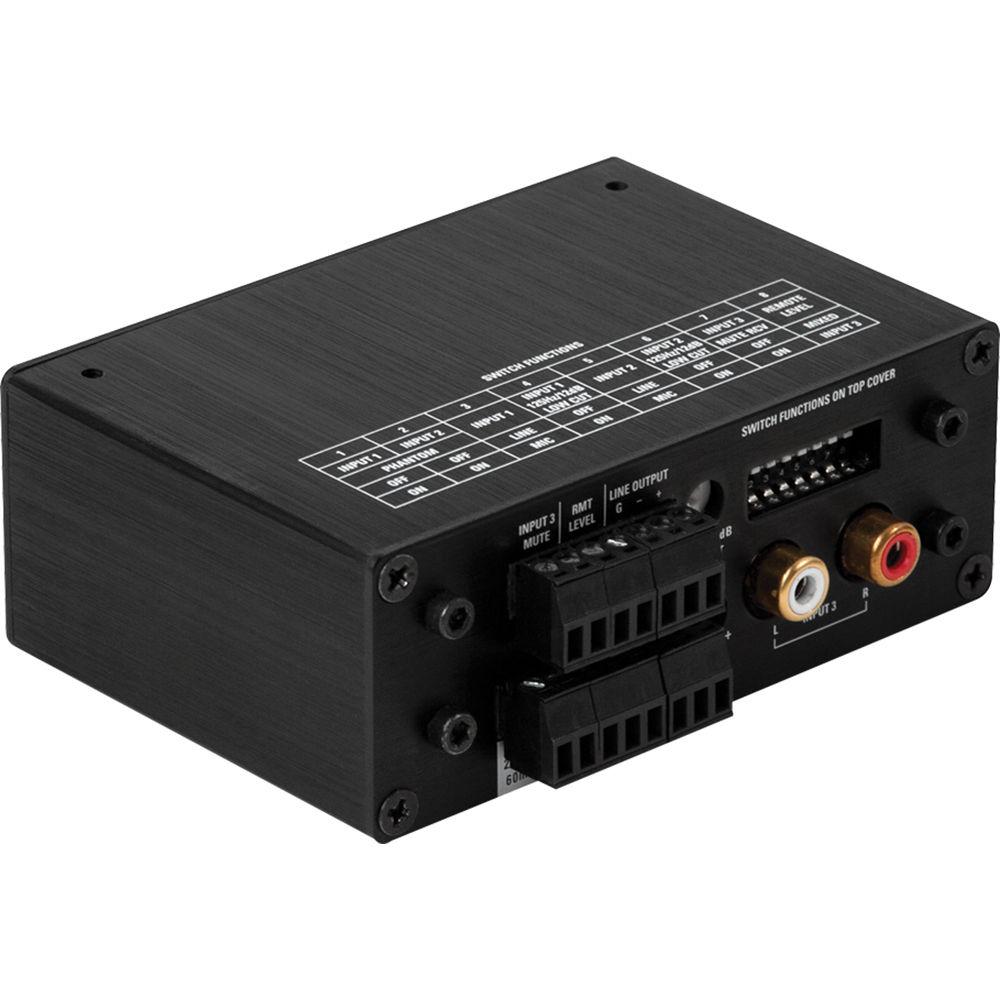

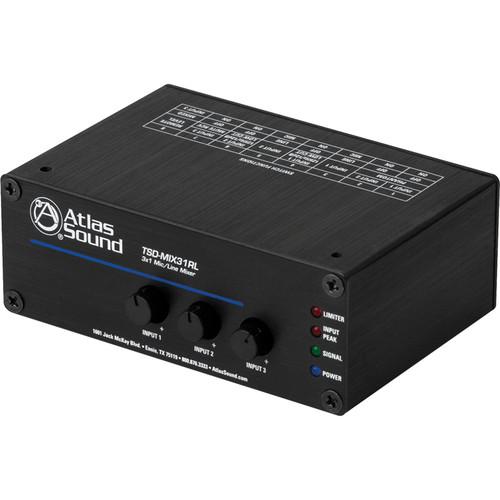

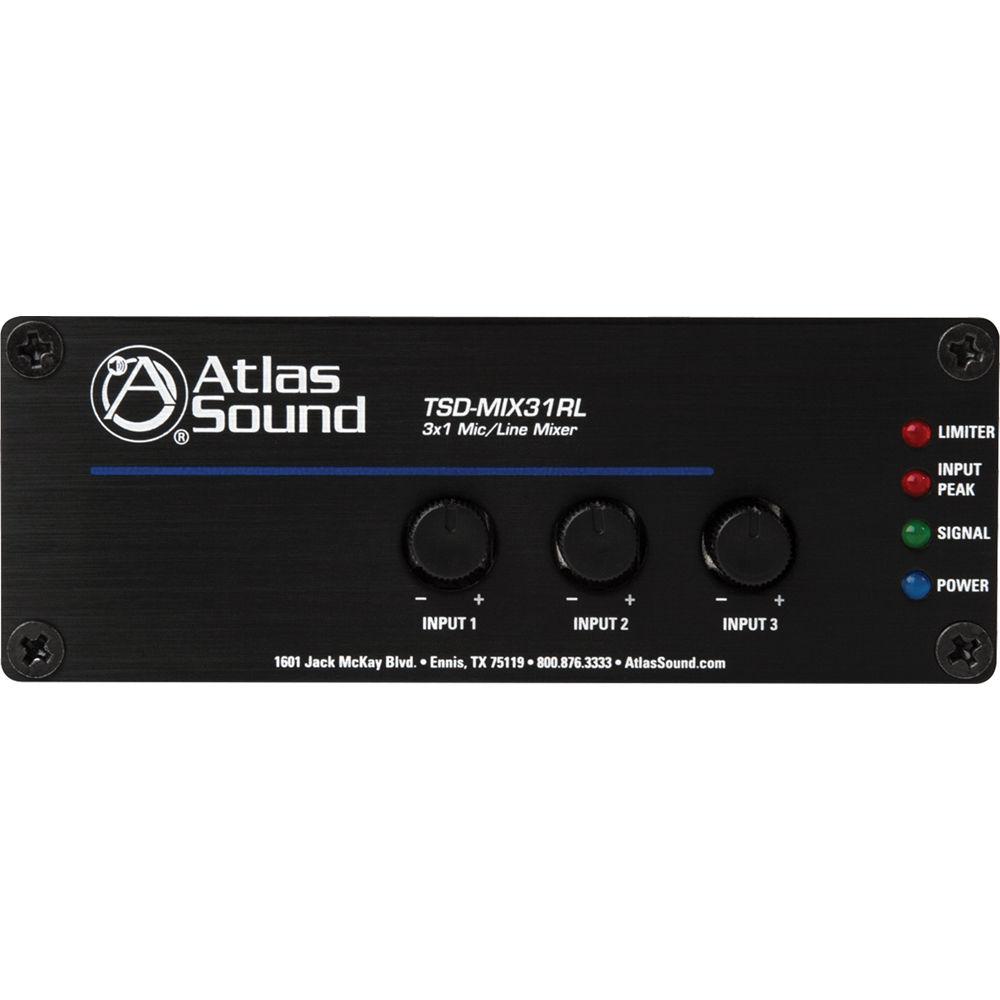

Product description The Atlas Sound TSD-MIX31RL 3x1 Mic/Line Mixer includes two mic/balanced line inputs via removable Phoenix style connectors and a stereo summing dual RCA input. Switchable phantom power is provided for both mic inputs to facilitate condenser microphones. The low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter at 125Hz also is available on each input to minimize bass rumble and low frequency feedback.
Priority paging can be accomplished via contact closure or VOX trigger on Input 1 (mutes input 3 only). Remote level control feature allows use of an optional decorative wall plate control for remote adjustment of either the entire mix bus or input 3 only (typical BGM input).
A variable output limiter provides system protection by reducing clipping and distortion. The TSD-MIX31RL requires a power supply (not included) for operation. - Two Balanced Mic/Line Inputs
- High Gain (50dB) Microphone Preamps
- Switchable 24V Phantom Power
- One Unbalanced Summing Dual RCA Line Input
- Vox Sense and Contact Closure Priority Mute of Channel 3
- 12 dB/Octave Low Cut Filter @ 125 Hz
- Input Signal & Peak Indicator LEDs
- High Gain Output for Driving Long Balanced Lines
- Separate Ground Connections
- Removable Phoenix Style I/O Connectors
- Security Covers Included for All Front Panel Controls
UPC: 612079187805 In the Box Atlas Sound TSD-MIX31RL 3x1 Mic/Line Mixer Set of Hook and Loop Fasteners Set of Front Panel Control Security Covers 2 x Mounting Brackets 2 x Cable Retainers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-MIX31RL 3x1 Mic Line Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound TSD-MIX31RL Specs | | | Type | 1x Unbalanced RCA left and right actively summed
2x Balanced mic or line selectable removable 3-position captive screw 1/8" (3.5mm) | | Impedance | RCA: 10 kΩ
1/8": 1.2 kΩ balanced, 600 Ω unbalanced | | Input Level | RCA:
316 mV (-10 dBV) = 2V (+6 dBV) Balanced Output
Maximum Input: 1.6 V (4.1 dBV) | | Phantom Power | 1/8": 24 V DC, defeatable | | Low Cut Filters | 1/8: 125 Hz/12 dB, defeatable | | Line Input Level | 1/8": 1 V (0 dBV) Balanced, 2 V (+6 dBV) Balanced Output,
Maximum Input: 6 V (6 dBV) | | Mic Input Level | 1/8": 46 dB Gain 10 mV (-40 dBV) Balanced = 2 V (+6 dBV) Balanced Output
Maximum Input: 40 mV (-27 dBV) | | | | Type | 1x Balanced 1/8" (3.5 mm) removable 3-position captive screw | | Impedance | Balanced: 300 Ω
Unbalanced: 150 Ω | | Line Output Level | 1 V (0 dBV) In = 2 V (+6 dBV)
Maximum Output: 6 V (15 dBV) | | | | Input Level | 3x Input level control knobs with security covers | | Mute | Mute Input 3: Contact closure, removable 2 position captive screw 1/8" (3.5mm) spacing
VOX Mute Sens: Trim adjust for mic sensitivity | | Limiter | Output Limiter: Threshold adjust | | Level | Remote Level: Control port 10 K external pot, removable 2 position captive screw 1/8" (3.5mm) spacing | | Dip Switches | Phantom Power 24 V DC, Input 1 & 2
Input 1 & 2 Mic/Line Select
Input 1 & 2 125 Hz/12 dB High Pass Filter
Input 3, Mute Receive
Remote Level Assign, Mix or Input 3 | | | | Input Signal | Green, 25 mV On threshold | | Peak | Input Peak: Red, -3 dB before clip | | Limiter | Red, limiter activation | | Power | Blue | | | | Frequency Response | 20 Hz to 20 kHz (±1 dB) | | THD | 0.06% @ 1 kHz | | Signal to Noise Ratio | Line to Line: 85 dBV
Mic to Line: 78 dBV | | Limiter | Threshold adjust 50 mV minimum output to no limit | | | | Voltage | 24 V DC | | Power Consumption | 60 mA, 1.4 W | | | | Power Supply | External Power Supply: cUL, CE, RoHS, TUV | | | | Material of Construction | Aluminum | | | | Dimensions (HxWxD) | 1.5 x 4 x 2.75" (39 x 101 x 70 mm) | | Weight | 6 oz (165 g) | | | | Package Weight | 0.7 lb | | Box Dimensions (LxWxH) | 5.25 x 3.5 x 2.5" |
