Atlas Sound TSD-MIX32RL 3x2 Stereo Line

Search your instruction manual in PDF to download

User Manual for Atlas Sound TSD-MIX32RL 3x2 Stereo Line Mixer

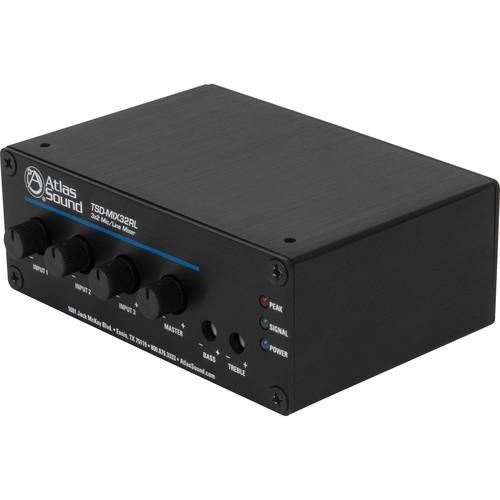

Click to enlarge the picture
Atlas Sound TSD-MIX32RL 3x2 Stereo Line Mixer Contents of the user manual for the Atlas Sound TSD-MIX32RL 3x2 Stereo Line
  • Product category: Install Sound Mixers Atlas Sound
  • Brand: Atlas Sound
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Atlas Sound Install Sound Mixers

Atlas Sound TSD-MIX32RL 3x2 Stereo Line Mixer Atlas Sound TSD-MIX32RL 3x2 Stereo Line Mixer Atlas Sound TSD-MIX32RL 3x2 Stereo Line Mixer
User manual for the Atlas Sound TSD-MIX32RL 3x2 Stereo Line contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Atlas Sound product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!



Product description

The TSD-MIX32RL 3x2 Stereo Line Mixer from Atlas Sound stereo line mixer with remote level control. It is designed for applications where multiple stereo line sources need to be combined into a preamp utilizing the local or remote master level control. The unit can be interfaced with Atlas Sound amplifiers. Applications include restaurants, conference rooms, and schools.

Additional on board EQ can be done utilizing the bass control (100 Hz ±6 db) and Treble control (10 kHz ±6 dB). The TSD-MIX32RL uses low noise components to ensure clarity and quiet operation without unwanted coloration. A 24VDC power supply (available separately) is required for operation.
    Applications
  • Stereo Mixer
  • Source Preamp
  • Remote Level Control
  • Line Driver

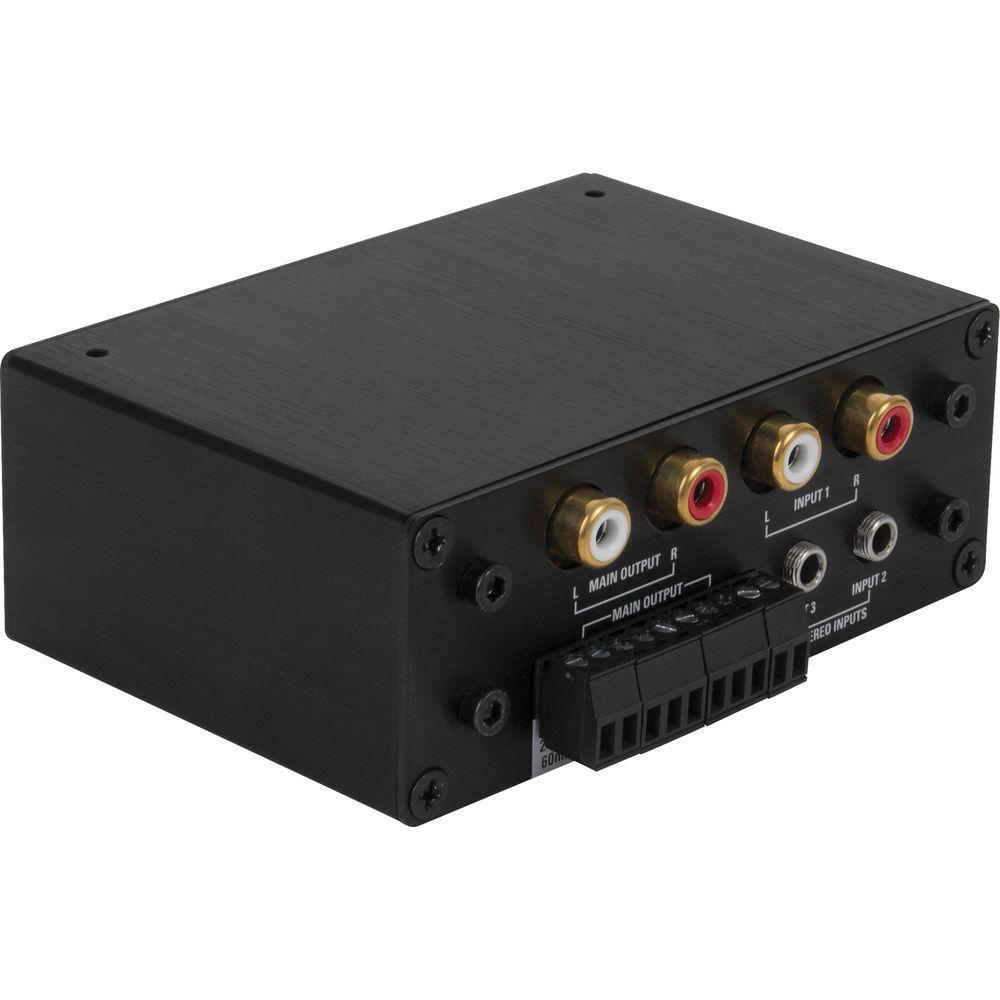

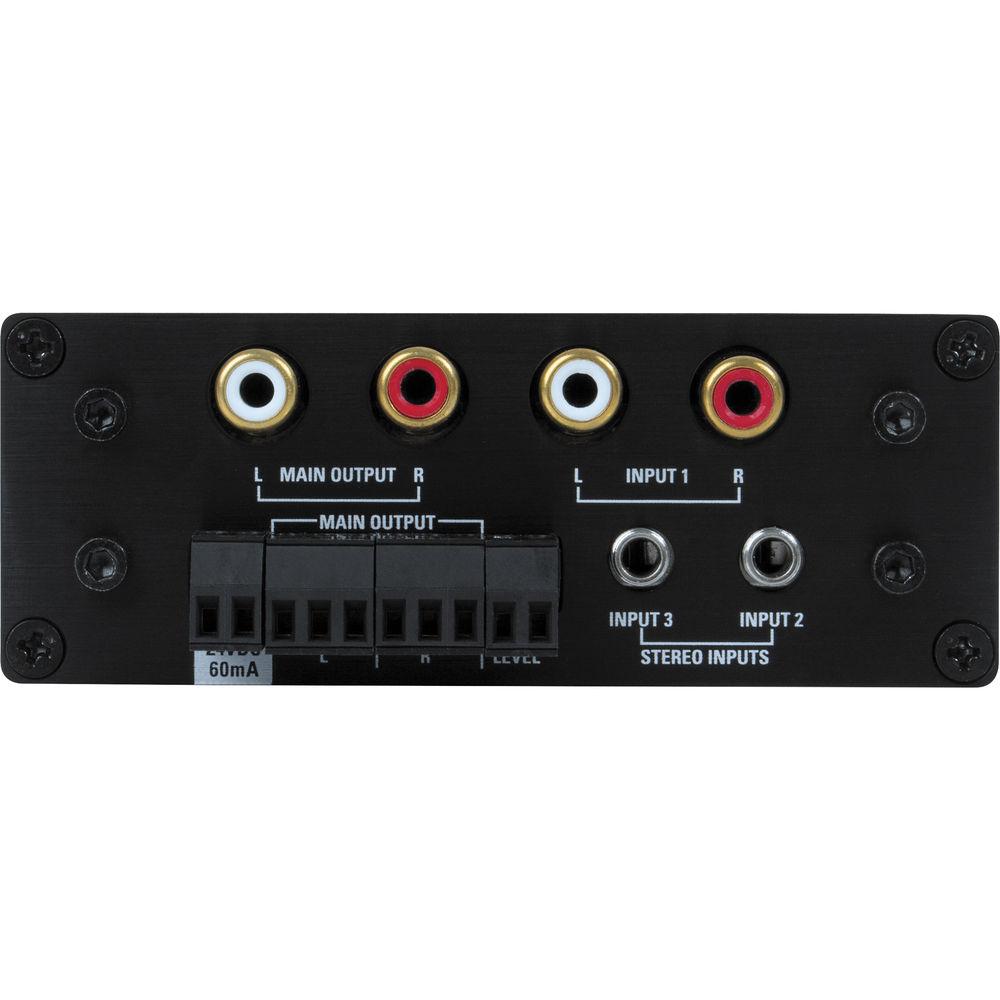

  • Three Stereo Unbalanced Line Inputs, One Set of RCA and Two 3.5mm
  • Balanced Line Outputs Left & Right
  • Unbalanced Line Outputs Left & Right
  • Output Peak & Signal Indicator LEDs
  • Input Signal Indicator LEDs, Qty 3
  • Bass & Treble Controls ±6dB
  • Remote Master Level Control
  • High Gain Output for Driving Long Balanced Lines
  • Separate Ground Connections

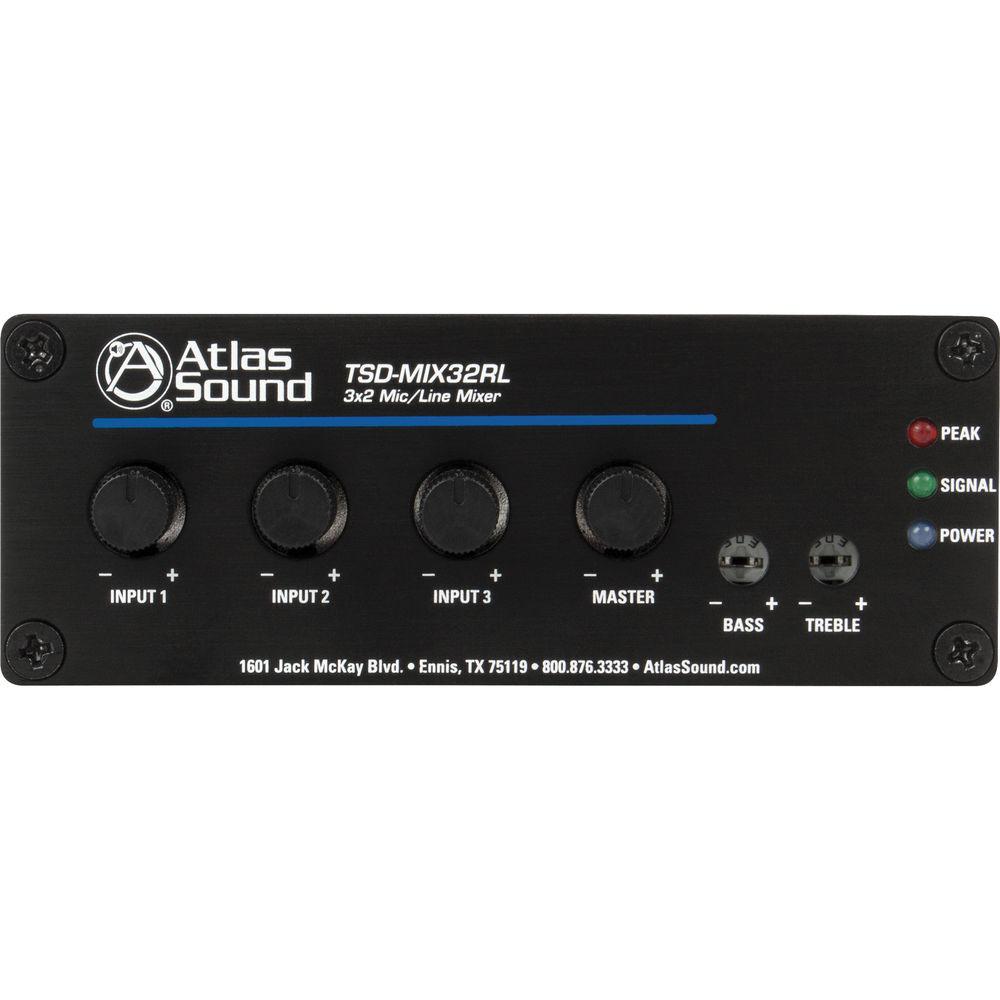

  • Security Covers Included for All Front Panel Controls
  • Cable Management System
  • Multiple Mounting Configurations
  • Removable Phoenix Style I/O Connectors
UPC: 612079189458 In the Box Atlas Sound TSD-MIX32RL 3x2 Stereo Line Mixer
  • Set of Hook and Loop Fasteners
  • 2 x Brackets
  • 2 x Cable Retainers
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Atlas Sound TSD-MIX32RL 3x2 Stereo Line Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    Atlas Sound TSD-MIX32RL Specs

    Type 1x Unbalanced RCA Left & Right
    2x Unbalanced 1/8" (3.5 mm) Stereo
    Impedance 10 kΩ, balanced
    Line Input Unbalanced Line Input: 300 mV (-10 dB) = 1.5 V (3 dBV)
    Maximum Input 1.5 V (3 dBV)
    Type 2x Balanced line removable 3 position captive screw 1/8" (3.5 mm)
    2x Unbalanced RCA line
    Impedance Balanced: 300 Ω
    Unbalanced: 150 Ω
    Maximum Output Balanced: 5 V (14 dBV)
    Unbalanced: 5 V (14 dBV)
    Line Output Level 300 mV (-10 dBV) = 1.5 V (3 dBV)
    Input Level 3x Removable knobs with security covers
    Output Level 1x Removable knob with security covers
    Trim Bass Trim: Front Panel (recessed) ±6 dB @ 100 Hz
    Treble Trim: Front Panel (recessed) ±6 dB 10 kHz
    Input Signal 3x Green, 25 mV ON threshold
    Output Signal 1x Green, 25 mV ON threshold
    Peak Output Peak: 1x Red, -3 dB before clip
    Power 1x Blue
    Frequency Response 20 Hz - 20 kHz (±1 dB)
    THD 0.06% @ 1 kHz
    Signal to Noise Ratio Line to Line: 85 dBV
    Voltage 24 V DC, 60 mA
    Power Consumption Current: 60 mA
    VA Watts: 1.4 W

    Note: All current and watt data is based on AC power consumption using the TSD-PS24V2500mA power supply
    Chassis Aluminum
    Certifications External Power Supply: cUL, CE, RoHS, TUV
    Dimensions (HxWxD) 1.5 x 4 x 2.75" (39 x 101 x 70 mm)
    Weight 6 oz (165 g)
    Package Weight 1.0 lb
    Box Dimensions (LxWxH) 5.19 x 3.5 x 2.5"
