Product description

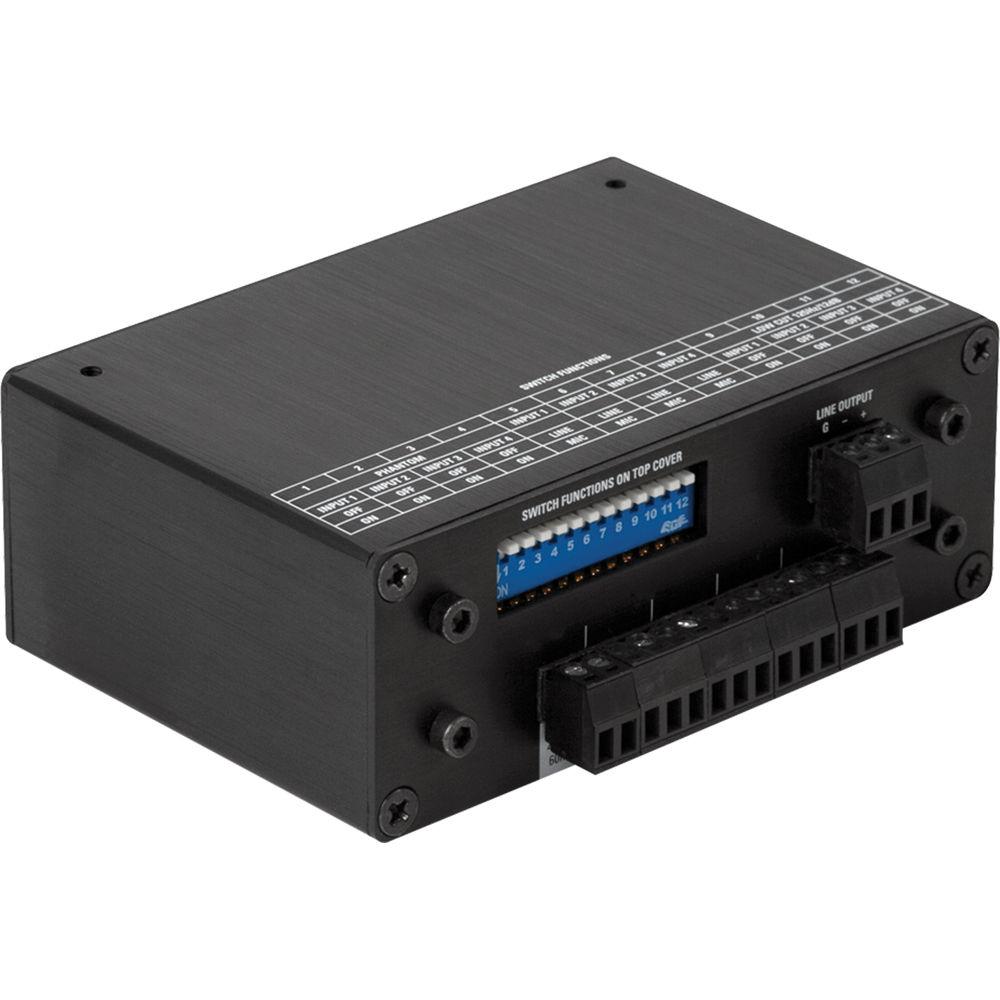

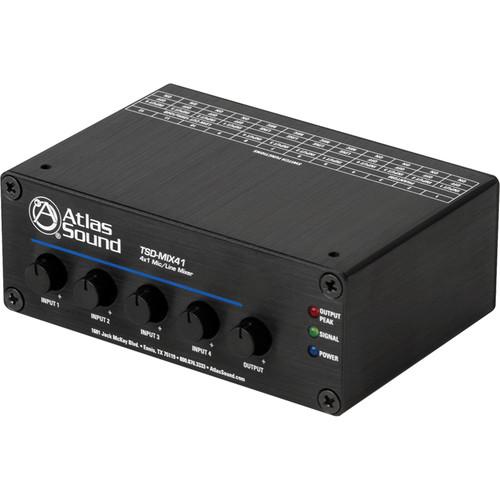

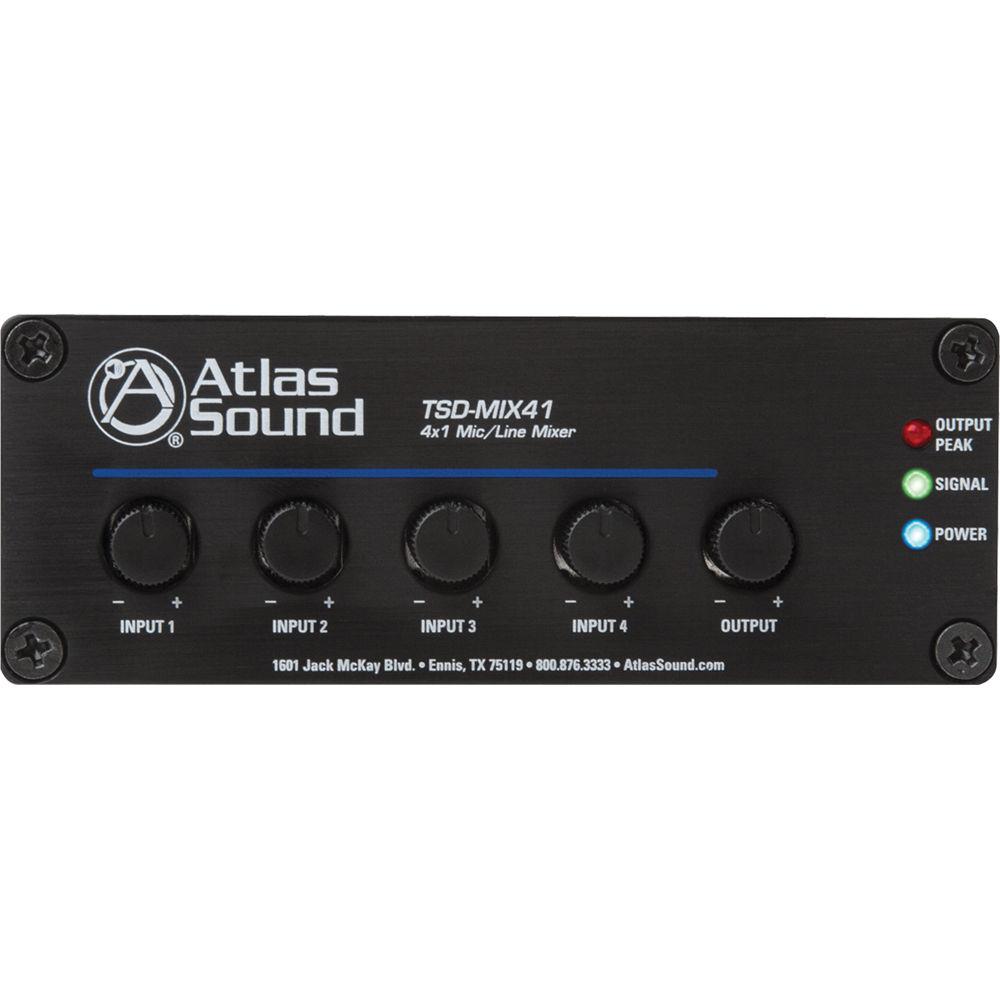

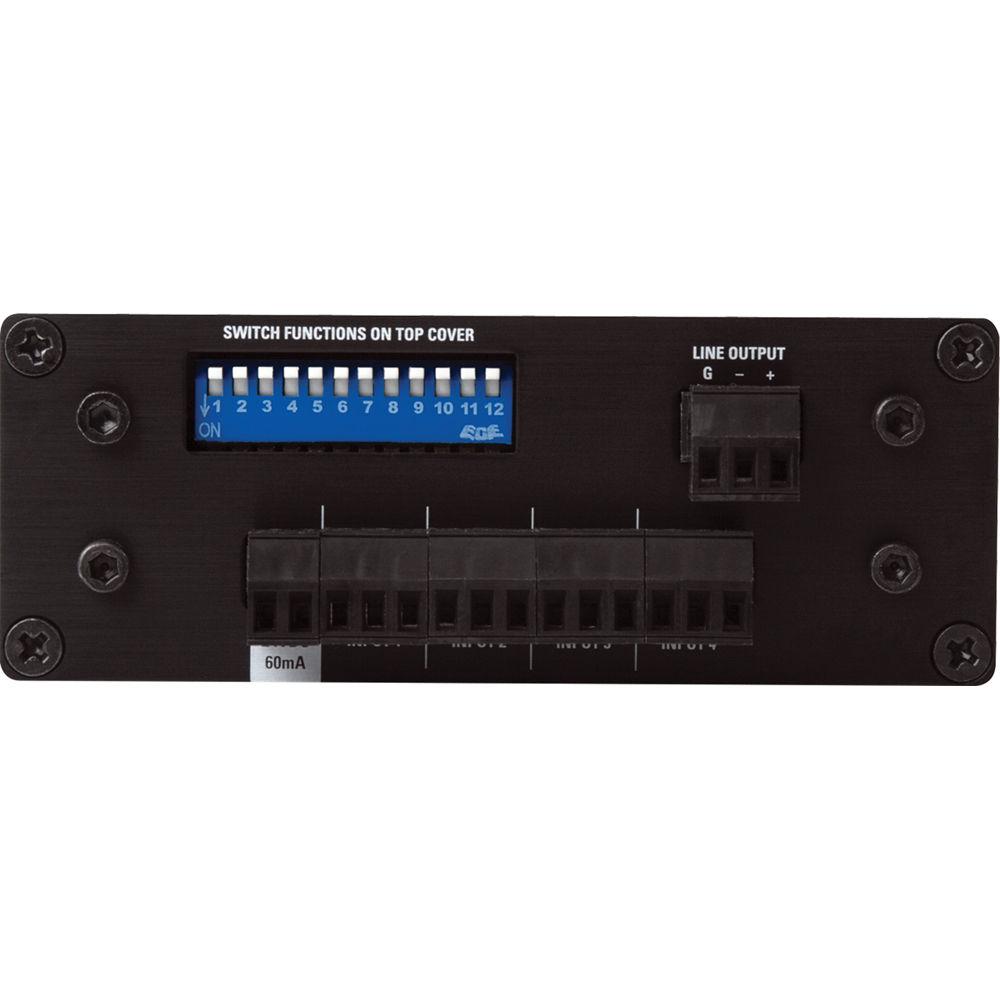

The TSD-MIX41 4x1 Mic/Line Mixer from Atlas Sound is designed for applications where multiple mic or line sources need to be sub mixed or summed. In house of worship applications the TSD-MIX41 can be used to combine similar sources such as choir microphones to a single mixer channel. The unit also works as a stand-alone mic/line mixer that can be interfaced with Atlas Sound amplifiers. Other applications include restaurants, conference rooms, and schools.

Each input is mic/line switchable with phantom power provided for condenser microphones. The low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter at 125Hz also is available on each input to minimize bass rumble and low frequency feedback. A 24VDC power supply (available separately) is required for operation.
    Audio Applications
  • Mic Preamp
  • Line Preamp
  • Line Drive
  • Choirs
  • Four Balanced Mic/Line Inputs
  • Four Microphone Preamps with Switchable 24V Phantom Power
  • Up to 50dB Mic Gain Per Input
  • 12dB/Octave Low Cut Filter @ 125Hz
  • Balanced Line Output
  • Input Peak & Signal Indicator LEDs
  • High Gain Output for Driving Long Balanced Lines
  • Separate Ground Connections
  • Removable Phoenix Style I/O Connectors
  • Security Covers Included for All Front Panel Controls
UPC: 612079187812 In the Box Atlas Sound TSD-MIX41 4x1 Mic/Line Mixer
  • Set of Security Covers for Front Panel Controls
  • Set of Hook and Loop Fasteners
  • 2 x Brackets
  • 2 x Cable Retainers
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Atlas Sound TSD-MIX41 4x1 Mic Line Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: pdf, docx, jpg)

    0%


    Technical parameters

    Atlas Sound TSD-MIX41 Specs

    Type 4x Balanced mic or line selectable removable 3-position captive screw 1/8" (3.5 mm) spacing
    Impedance Balanced: 1.2 kΩ
    Unbalanced: 600 Ω
    Phantom Power 24 V DC, defeatable
    Low Cut Filters 125 Hz/12 dB, defeatable
    Line Input Level 1 V (0 dBV) Balanced = 2 V (+6 dBV) Balanced Output
    Maximum Input: 6 V (+15 dBV)
    Mic Input Level 46 dB Gain, 1 0mV (-40 dB) Balanced = 2 V (+6 dBV) Balanced Output, Maximum Input 40 mV (-27 dBV)
    Type 2x Balanced line removable 3 position captive screw 1/8" (3.5 mm) spacing
    Impedance Balanced: 300 Ω
    Unbalanced: 150 Ω
    Line Output Level 1 V (0 dBV) In = 2 V (+6 dBV)
    Maximum Output: 6 V (15 dBV)
    Input Level 4x Removable Knobs with Security Covers
    Output Level 1x Removable Knob with Security Cover
    Dip Switches 4x Phantom Power 24 VDC
    4x Input Mic/Line Select
    4x Input 125 Hz/12 dB High Pass Filters
    Output Signal Green, 25 mV On Threshold
    Peak Output Peak: Red, -3 dB Before Clip
    Power Blue
    Frequency Response 20 Hz to 20 kHz (±1 dB)
    THD 0.06% @ 1 kHz
    Signal to Noise Ratio Line to Line: 85 dBV
    Mic to Line: 78 dBV
    Voltage 24 VCD
    Power Consumption 60 mA
    1.4 W
    Chassis Aluminum
    Certifications External Power Supply: cUL, CE, RoHS, TUV
    Dimensions (H x W x D) 1.5 x 4 x 2.75" (39 x 101 x 70 mm)
    Weight 6 oz (165 g)
    Package Weight 0.75 lb
    Box Dimensions (LxWxH) 5.3 x 3.8 x 2.2"
