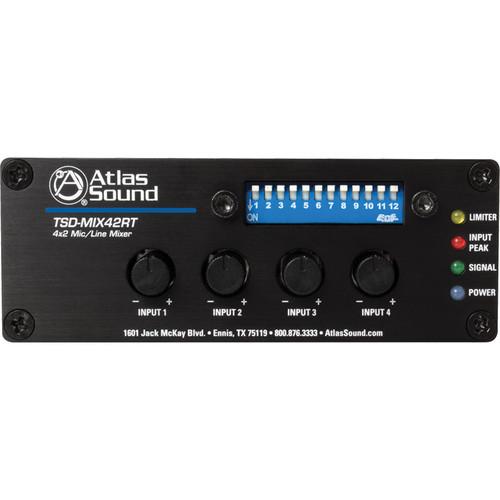

User Manual for Atlas Sound TSD- MIX42RT 4x2 Mic Line Mixer with Priority Sense Click to enlarge the picture
Contents of the user manual for the Atlas Sound TSD- MIX42RT 4x2 Mic
- Product category: Install Sound Mixers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Install Sound Mixers
|
User manual for the Atlas Sound TSD- MIX42RT 4x2 Mic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The Atlas Sound TSD- MIX42RT 4x2 Mic/Line Mixer with Priority Sense is designed for applications where paging, priority music override or remote input selection with level control are required. Use alone or in conjunction with amplifiers in meeting rooms, digital signage, luxury suites, and other applications requiring versatile, stereo or mono multi source mix control.
The unit includes one mic/balanced line input via removable Phoenix style connector and three stereo 3.5mm inputs. Switchable phantom power is provided for the mic input to facilitate condenser microphones. The low noise internal mic preamps ensure clarity and quiet operation without unwanted coloration. A 12dB/octave high pass filter at 125Hz also is available on the mic input to minimize bass rumble and low frequency feedback.
The TSD-MIX42RT can be used in conjunction with an Atlas Audio WPD-MIX42RT decor style wall plate that is designed for remote activation of the TSD-MIX42RT mic/line mixer. When connected to the TSD-MIX42RT and the Juke Box Override, any page made through the system will override the selected source so that the page can be heard clearly.
Priority paging can be accomplished via contact closure or VOX trigger on Input 1 that will mute Inputs 2, 3, or 4 (assignable). Remote level control feature allows use of the Atlas Sound AAVC-10K or WPD-VC10K decorative wall plate control for remote adjustment of either the entire master mix bus or inputs 1, 2, 3. A variable output limiter provides system protection by reducing clipping and distortion which can be useful when mixing mic and/or line sources with varying volumes. The unit requires a power supply (not included) for operation. - Audio Applications
-
- Mixer
- Mic Preamp
- Line Preamp
- Stereo Summing Preamp
- Line Drive
- Remote Level Control
- Priority Paging
- Music Override
- Digital Signal Auto Sense
- Stereo or Mono Configurations
- One Balanced Mic/Line Input
- Switchable 24V Phantom Power
- Three Unbalanced Stereo Line Inputs 3.5mm
- VOX Sense and Contact Closure, Priority Mute
- 12dB/Octave Low Cut Filter @ 125Hz Mic/Line
- Remote Control Input Select & Level Control
- Audio Auto Sensing Juke Box Override
- Input Signal & Peak Indicator LEDs
- High Gain Output for Driving Long Balanced Lines
- Separate Ground Connections
- Security Covers Included for All Front Panel Controls
- Multiple Mounting Configurations
- Removable Phoenix Style I/O Connectors
In the Box Atlas Sound TSD- MIX42RT 4x2 Mic/Line Mixer with Priority Sense Set of Hook and Loop Fasteners 2 x Brackets 2 x Cable Retainers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD- MIX42RT 4x2 Mic Line Mixer with Priority Sense in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound TSD-MIX42RT Specs | | | Type | 3x Unbalanced 1/8" (3.5 mm) stereo
1x Balanced mic or line selectable removable 3 position captive screw 1/8" (3.5 mm) spacing | | Impedance | 1/8": 10 kΩ
Captive Screw: 1.2 kΩ (balanced), 600 Ω (unbalanced) | | Input Level | 1/8": 316 mV (-10 dB) = 2 V (+6 dBV) Balanced Output, Maximum Input 1.6 V (4.1 dBV) | | Phantom Power | Captive Screw: 24 VDC, defeatable | | Low Cut Filters | Captive Screw: 125 Hz/12 dB, defeatable | | Line Input Level | 1 V (0 dBV) Balanced = 2 V (+6 dBV) Balanced Output, Maximum Input 6 V (15 dBV) | | Mic Input Level | 46 dB Gain, 1 0mV (-40 dB) Balanced = 2 V (+6 dBV) Balanced Output, Maximum Input 40 mV (-27 dBV) | | | | Type | 2x Balanced line (L & R) removable 3 position captive screw 1/8" (3.5 mm) spacing | | Impedance | Balanced: 300 Ω
Unbalanced: 150 Ω | | Line Output Level | 1 V (0 dBV) In = 2 V (+6 dBV), Maximum Output 6 V (15 dBV) | | | | Input Level | 4x Removable knobs with security covers | | Mute | Mute CC: Contact closure, removable 2 position captive screw 1/8" (3.5 mm) spacing
VOX Mute Sens: Trim adjust for mic sensitivity | | Limiter | Output Limiter: Threshold adjust | | Remote | Remote Level: Control port 10 kΩ external pot, removable 2 position captive screw 1/8" (3.5 mm) spacing | | Voltage Output | DC 12 V Output: 12 V DC to power wall controller LED, removable 2 position captive screw 1/8" (3.5 mm) spacing | | | | DIP Switch | Dip Switch # 1: 24 VDC Phantom Power
Dip Switch # 2: Input 4 Mic or Line Select
Dip Switch # 3: Low Cut Filter 125 Hz
Dip Switch # 4: Juke Box Override
Dip Switch # 5: Juke Box Override Mute Hold Delay
Dip Switch # 6: Input 3 Mute Receive
Dip Switch # 7: Input 2 Mute Receive
Dip Switch # 8: Input 1 Mute Receive
Dip Switch # 9: Outputs Left and Right Stereo/Mono
Dip Switch # 10: Remote Level Master/Inputs 1,2,3
Dip Switch # 11: Wall Plate Activation Note: Juke Box Override will not work when Remote Wall Plate is activated
Dip Switch # 12: Not Used | | | | Input Signal | 1x Green, 25 mV ON Threshold | | Peak | 1x Red -3 dB Before Clip | | Limiter | 1x Red, Limiter Activation | | Power | 1x Blue | | | | Frequency Response | 2 0Hz to 20 kHz (±1 dB) | | THD | 0.06% @ 1 kHz | | Signal to Noise Ratio | Line to Line: 85 dBV
Mic to Line: 78 dBV | | Limiter | Output Limiter: Threshold Adjust 50 mV Minimum Output to No Limit | | | | Voltage | 24 VDC, 60 mA | | Power Consumption | Current: 60 mA
VA Watts: 1.4 W | | | | Chassis | Aluminum | | Dimensions (H x W x D) | 1.5 x 4 x 2.5" (39 x 101 x 2.5 mm) | | Weight | 13.4 oz (300 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 5.19 x 3.5 x 2.5" |
