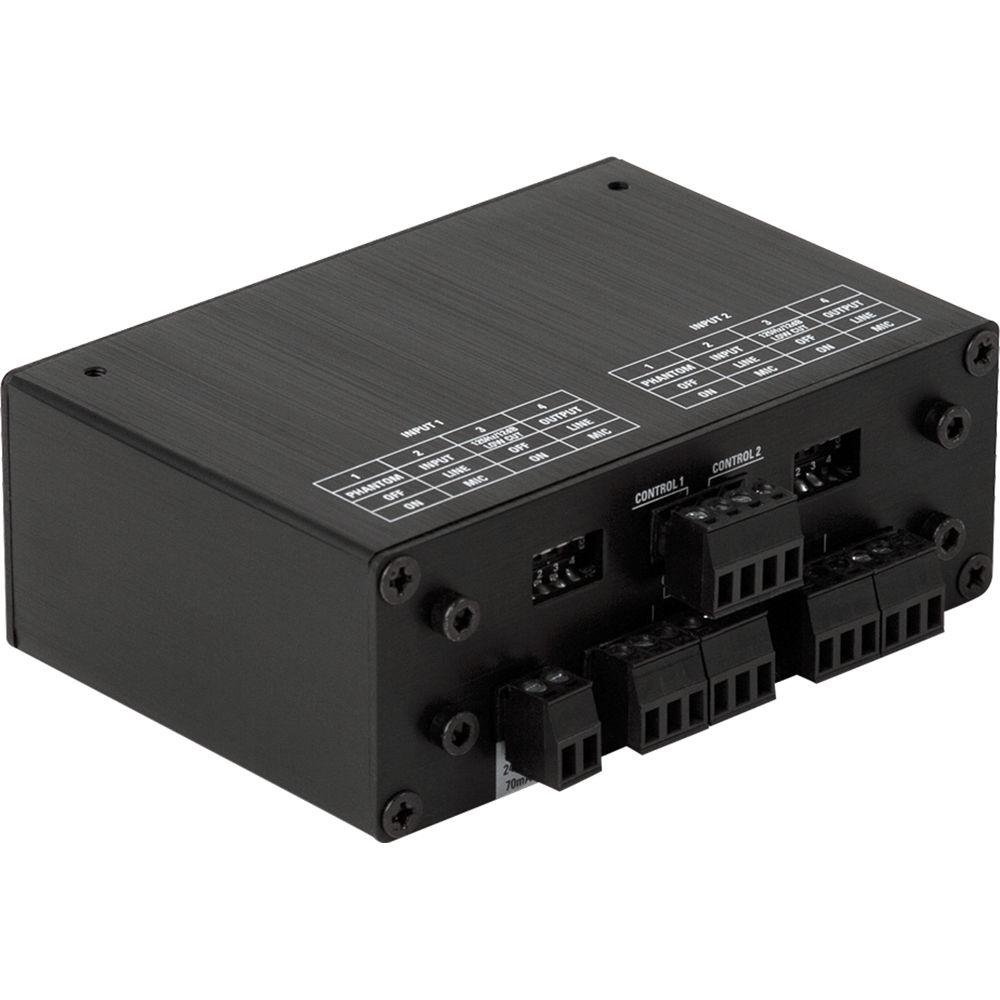

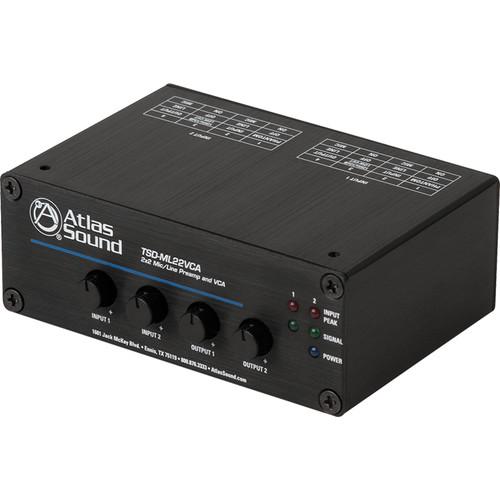

User Manual for Atlas Sound TSD-ML22VCA 2x2 Mic Line Preamplifier and VCA Click to enlarge the picture
Contents of the user manual for the Atlas Sound TSD-ML22VCA 2x2 Mic Line
- Product category: Install Sound Mixers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Install Sound Mixers
 |
User manual for the Atlas Sound TSD-ML22VCA 2x2 Mic Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|
Product description The Atlas Sound TSD-ML22VCA 2x2 Mic/Line Preamplifier and VCA is a 2 input, 2 output true VCA with features including a microphone preamplifier. VCA's inserted prior to amplification provides an efficient solution compared to transformer-based attenuators for volume adjustment in high power music applications. The dual channel design can provide level control for two separate discrete zones or stereo sources and can be used in sports bars, restaurants, hotels or other installations.
The TSD-ML22VCA provides two mic pre-amps, which allows simplification of designs that require remote microphone level adjustment. Switchable phantom power is provided for powering condenser microphones and a 12dB/octave @ 125Hz high pass filter is available on each mic input to minimize bass rumble and low frequency feedback in the system ensuring focus and clarity for the voice spectrum. The unit requires a power supply (not included) for operation. - Audio Applications
-
- Mic Preamp
- Line Preamp
- Line Drive
- Choirs
- Remote System Controller
- Two Selectable Balanced Mic or Line Inputs
- 12dB/Octave @ 125Hz Low Cut Filter Per Input
- Two Balanced Mic/Line Outputs
- Separate Channel VCAs for Remote Level Control via Wall Plate or Programmable External DC

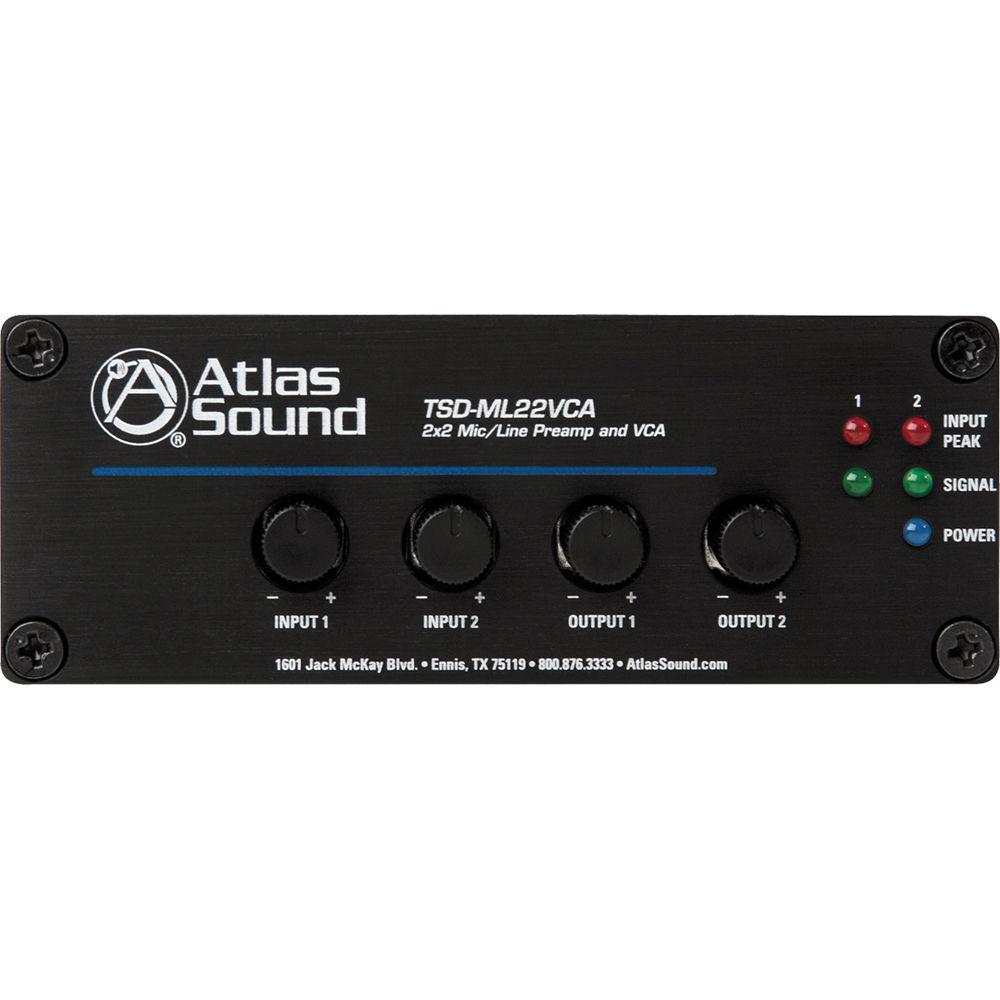

- Input Peak Indicator LED Per Channel
- Input Signal Indicator LED Per Channel
- High Gain Output for Long Distance Applications
- Multiple Mounting Configurations
- Separate Ground Connections

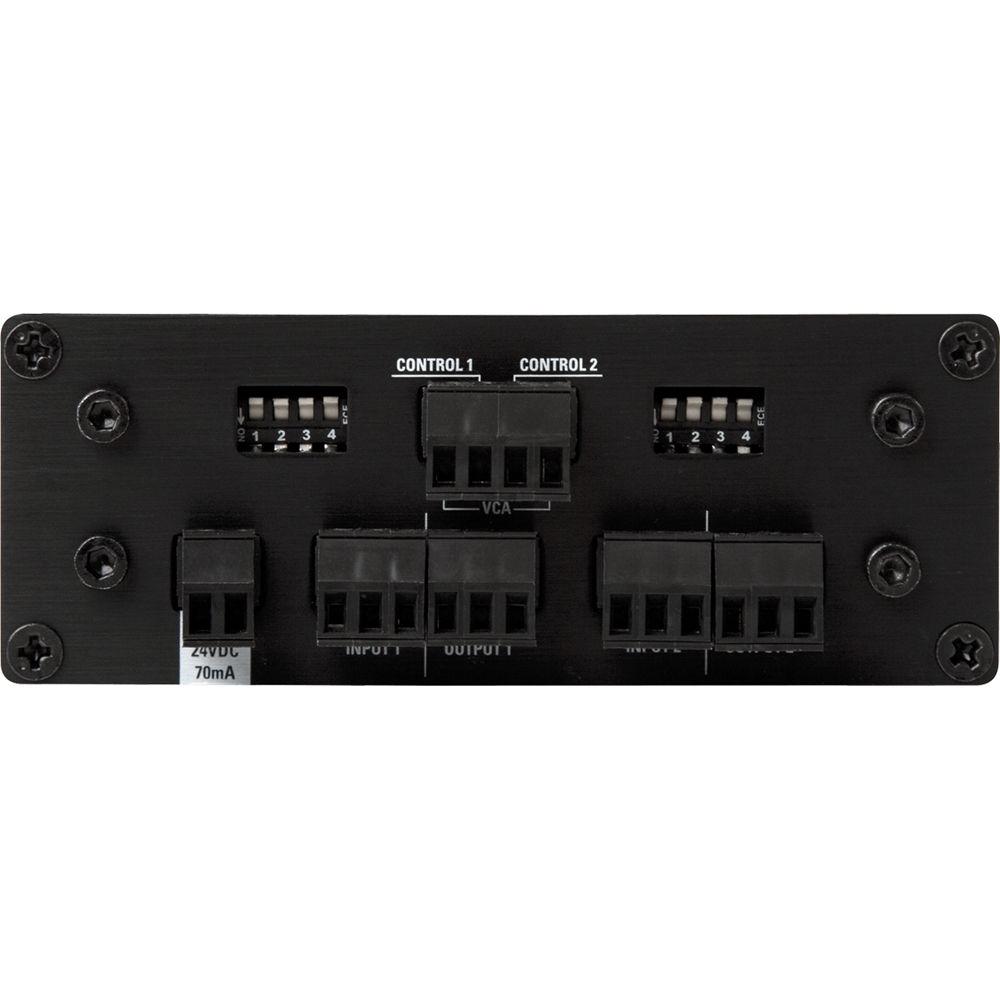

- Removable Phoenix Style I/O Connectors
- Security Covers Included for All Front Panel Controls
UPC: 612079187836 In the Box Atlas Sound TSD-ML22VCA 2x2 Mic/Line Preamplifier and VCA Set of Hook and Loop Fasteners 2 x Brackets 2 x Cable Retainers Limited 1-Year Warranty Guides & Manuals zscrzxbvwcdyx Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-ML22VCA 2x2 Mic Line Preamplifier and VCA in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Atlas Sound TSD-ML22VCA 2x2 Mic Line Preamplifier and VCA can be downloaded in PDF format at the link stated below.
Technical parametersAtlas Sound TSD-ML22VCA Specs | | | Type | 2x Balanced mic or line selectable removable 3 position captive screw 1/8" (3.5 mm) spacing | | Impedance | Balanced: 1.2 kΩ
Unbalanced: 600 Ω | | Phantom Power | 24 V DC | | Low Cut Filters | 125 Hz/12 dB, defeatable | | Line Input Level | 1 V (0 dBV) Balanced = 2 V (+6 dBV) Balanced Output
Maximum Input 6 V (+15 dBV) | | Mic Input Level | 46 dB Gain 10 mV (-40 dB) Balanced = 2 V (+6 dBV) Balanced Output
Maximum Input 40 mV (-27 dBV) | | | | Type | 2x Balanced mic or line selectable removable 3 position captive screw 1/8" (3.5 mm) spacing | | Impedance | Balanced: 300 Ω
Unbalanced: 150 Ω | | Line Output Level | 1 V (0 dBV) In = 2 V (+6 dBV),
Maximum Output 6 V (15 dBV) | | Mic Output | Mic Output Level:
10 mV (-40 dBV) In = 80 mV (-21 dBV), Maximum Output: 300 mV (-10 dBV) | | | | Input Level | 2x Removable knobs with security covers | | Output Level | 2x Removable knobs with security covers | | VCA | Control Port:
Channel 1 & 2, +10 VDC return design
Removable 4 position captive screw 1/8" (3.5 mm) spacing | | DIP Switch | 2x Phantom Power 24 VDC
2x Input Mic/Line Select
2x Input 125 Hz/12 dB High Pass Filter
2x Output Mic/Line Select | | | | Input Signal | 2x Green, 25 mV on threshold | | Output Signal | 2x Red, -3 dB before clip, | | Power | Blue | | | | Frequency Response | 20 Hz to 20 kHz (±1 dB) | | THD | 0.06% & 1 kHz | | Signal to Noise Ratio | Line to Line: 85 dBV
Mic to Line: 70 dBV
Line to Mic: 55 dBV
Mic to Mic: 55 dBV | | | | Voltage | 24 V DC | | Power Consumption | 70 mA
1.68 W | | | | Chassis | Aluminum | | Dimensions (HxWxD) | 1.5 x 4 x 2.75" (39 x 101 x 70 mm) | | Weight | 6 oz (165 g) | | | | Package Weight | 0.65 lb | | Box Dimensions (LxWxH) | 5.2 x 3.6 x 2.5" |
