User Manual for Atlas Sound TSD-PA10VG Mono 10W Power Amplifier Click to enlarge the picture
Contents of the user manual for the Atlas Sound TSD-PA10VG Mono 10W Power
- Product category: 70-Volt Amplifiers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound 70-Volt Amplifiers
 |
User manual for the Atlas Sound TSD-PA10VG Mono 10W Power contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

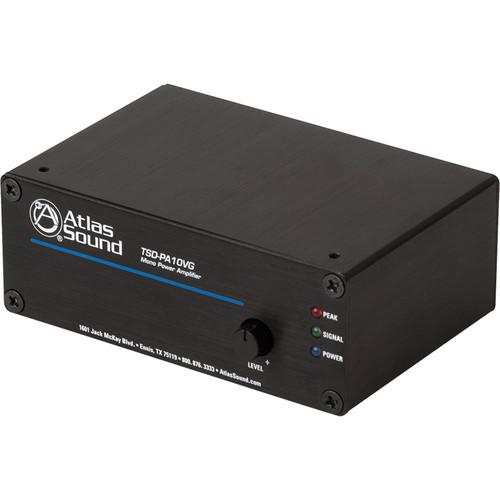

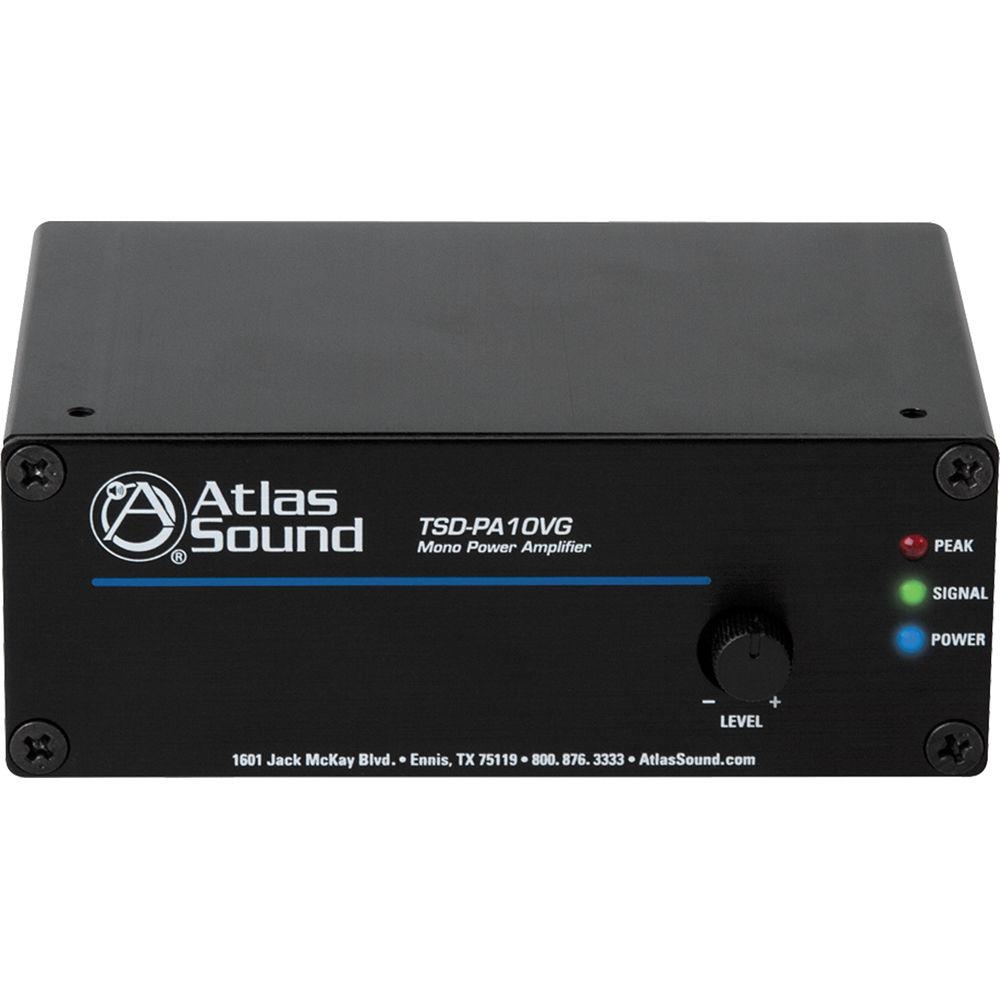

Product description The Atlas Sound TSD-PA10VG Mono 10W Power Amplifier is a single channel global amplifier that can deliver up to 10 watts into a 4 or 8 ohms, 25, 70, or 100 volt speaker load with a balanced mono phoenix style input. The PA10VG draws 2.8 watts when in idle. The front panel has an input level control as well as power, signal, and peak LED indicators. A external power supply (available separately) is required for operation. - Audio Applications
-
- Projector Amplifier
- Zone Amplifier
- Paging Systems
- 10W into 25V/70V/100V Loads
- Removable Level Control with Set-It-And-Forget-It Security Cover
- Input Signal Indicator LED
- Multiple Mounting Configurations
- Separate Ground Connections
- Removable Phoenix Style I/O Connectors
UPC: 612079188314 In the Box Atlas Sound TSD-PA10VG Mono 10W Power Amplifier Set of Hook and Loop Fasteners Security Cover 2 x Brackets 2 x Cable Retainers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-PA10VG Mono 10W Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound TSD-PA10VG Specs | | | Type | 1x Balanced line removable 3 position captive screw 1/8" (3.5 mm) spacing | | Impedance | Balanced: 10 kΩ
Unbalanced: 5 kΩ | | Line Input Level | 500 mV (-6 dBV), balanced | | | | Outputs | Output Taps:

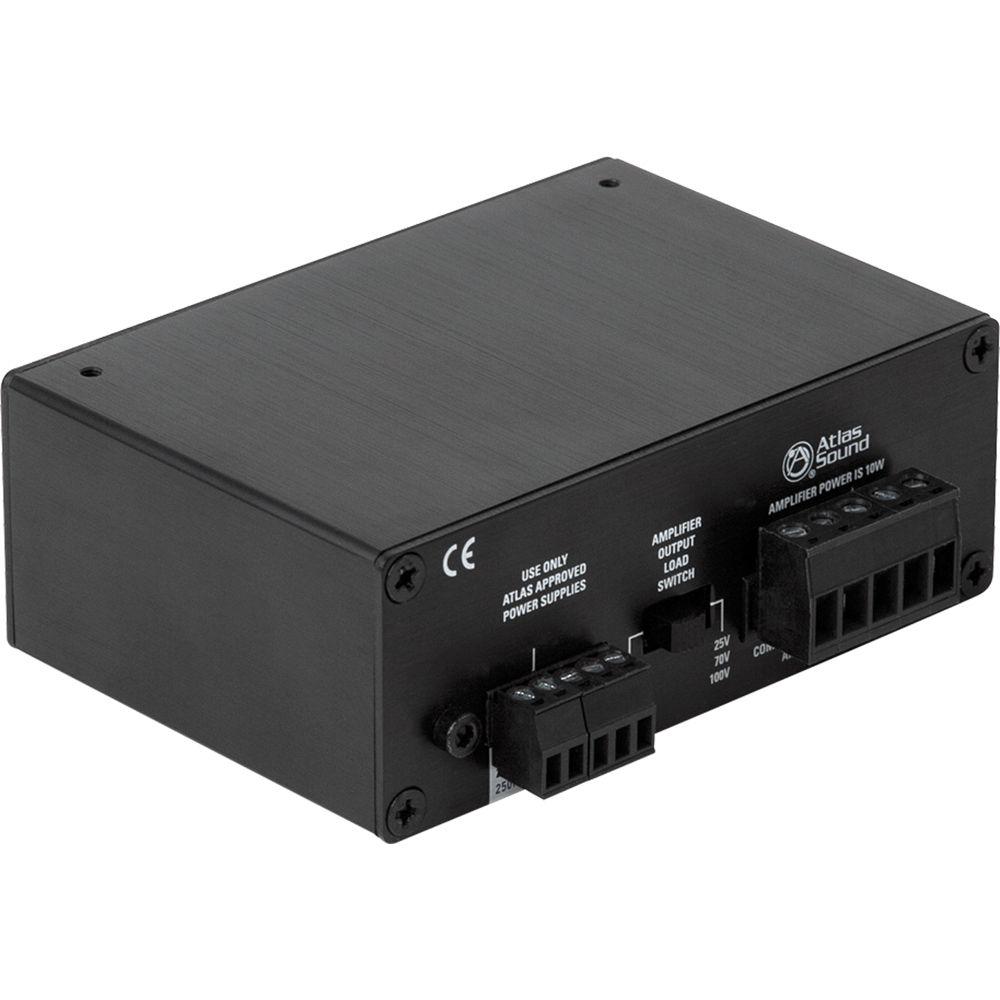

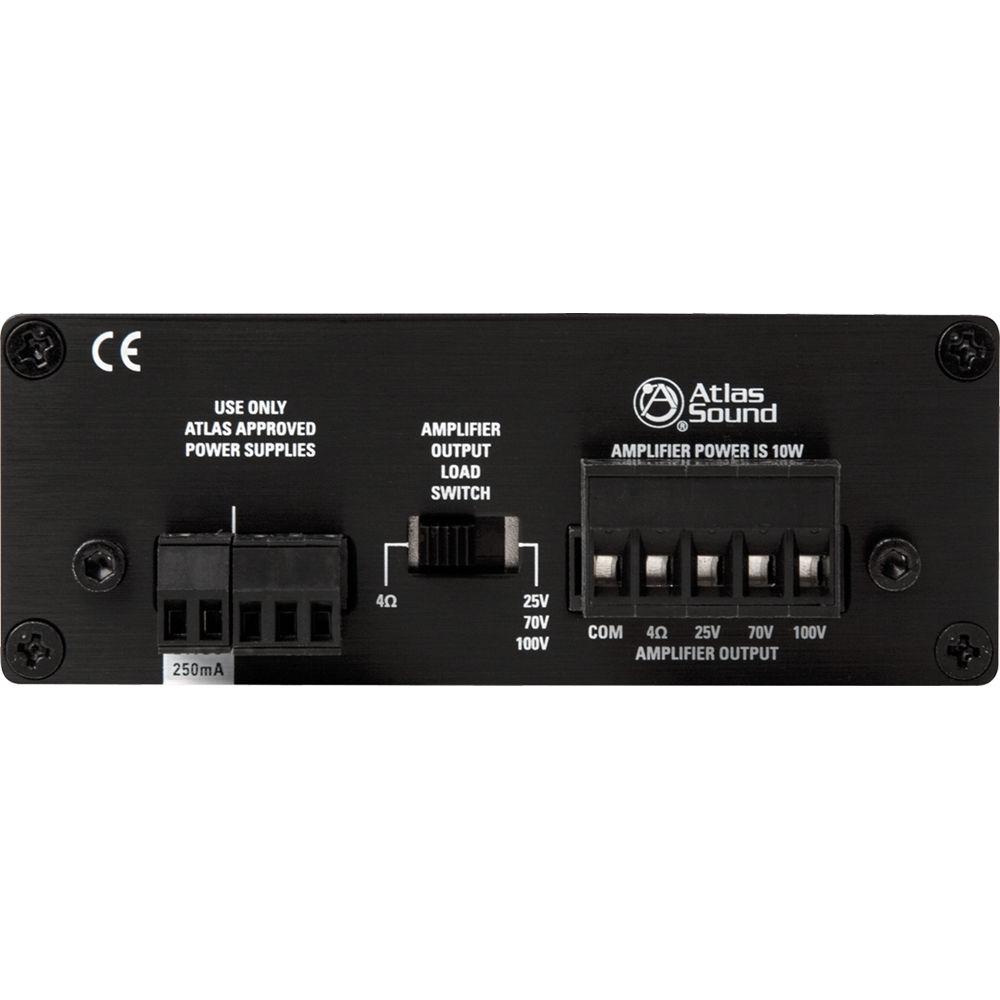

4 Ω, 25, 70, 100 V | | Type | Removable 5 position captive screw 0.2" (5 mm) spacing speaker output | | Wire Size | 14 gauge maximum | | | | Level Control | 1x Removable knob with security cover | | | | Input Signal | Green, 25 mV On Threshold | | Peak | Red, -3 dB Before Clip | | Power | Blue | | | | Frequency Response | 40 Hz to 20 kHz (±3 dB) | | THD | 0.5% @ 1 kHz | | Signal to Noise Ratio | 78 dB | | | | Power Requirements | Note: All Current and Watt data is based on AC power consumption using the TSD-PS24V2500mA Power Supply | | Load | Load Taps: 4Ω, 25 V = 31 Ω Load, 70 V = 245 Ω Load, 100 V = 500 Ω Load | | Voltage | 24 V DC 1000 mA | | Current | Idle: 60 mA
Average: 110 mA
Maximum Current: 240 mA | | Watts | Idle VA Watts: 2.8 W
Average VA Watts: 6.7 W
Maximum VA Watts: 14 W | | | | Chassis | Aluminum | | Dimensions (H x W x D) | 1.5 x 4 x 2.75" (39 x 101 x 70 mm) | | Weight | 6 oz (165 kg) |
