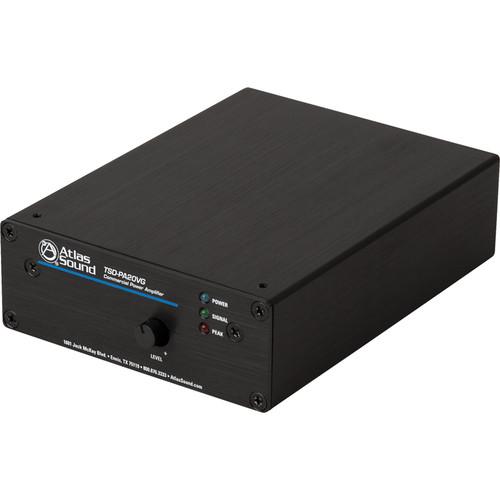

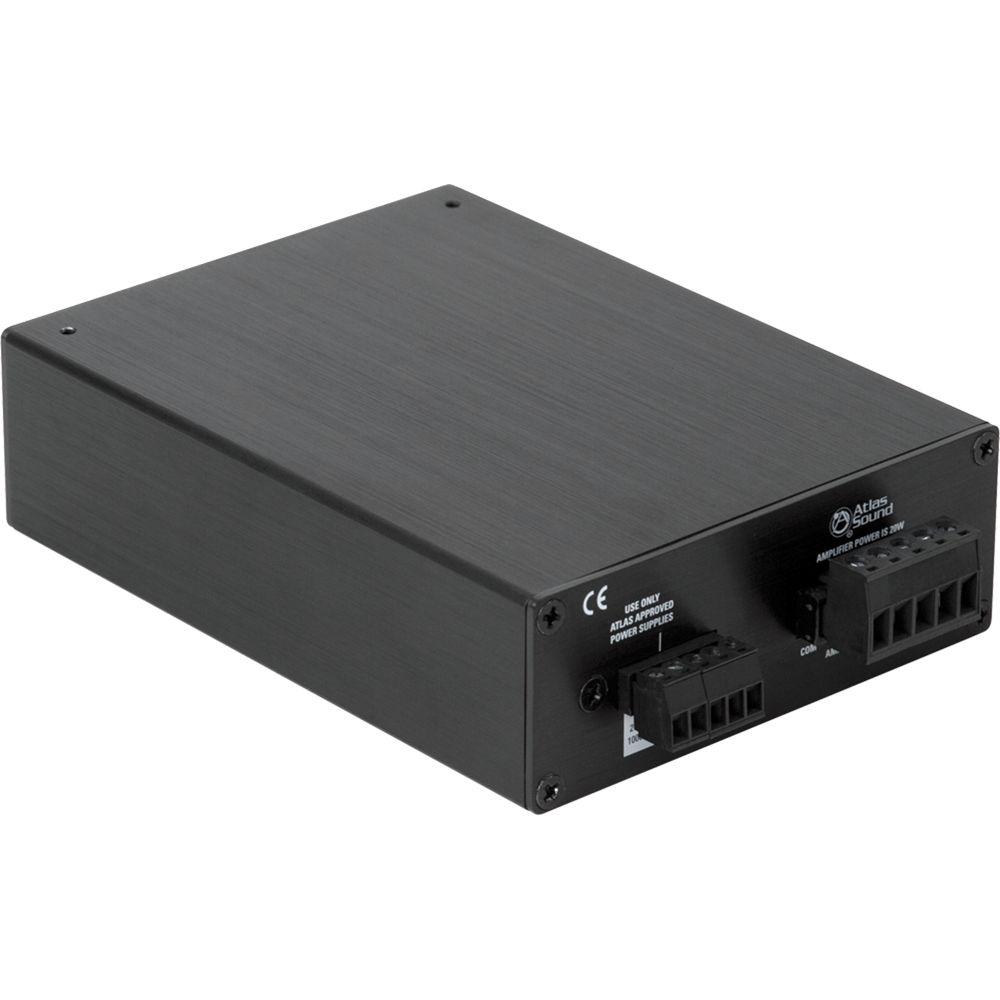

Product description The Atlas Sound TSD-PA20VG Mono Power Amplifier is a mono amplifier for 4Ω and distributed constant voltage speaker systems. Applications include house of worship cry rooms, hallways, restrooms, foyers and classrooms. The TSD-PA20V is also an alternative for small projector systems as it can be used with as many as 16 25/70/100V ceiling speakers (tapped at 1 watt each), and its small footprint allows for simplified mounting.

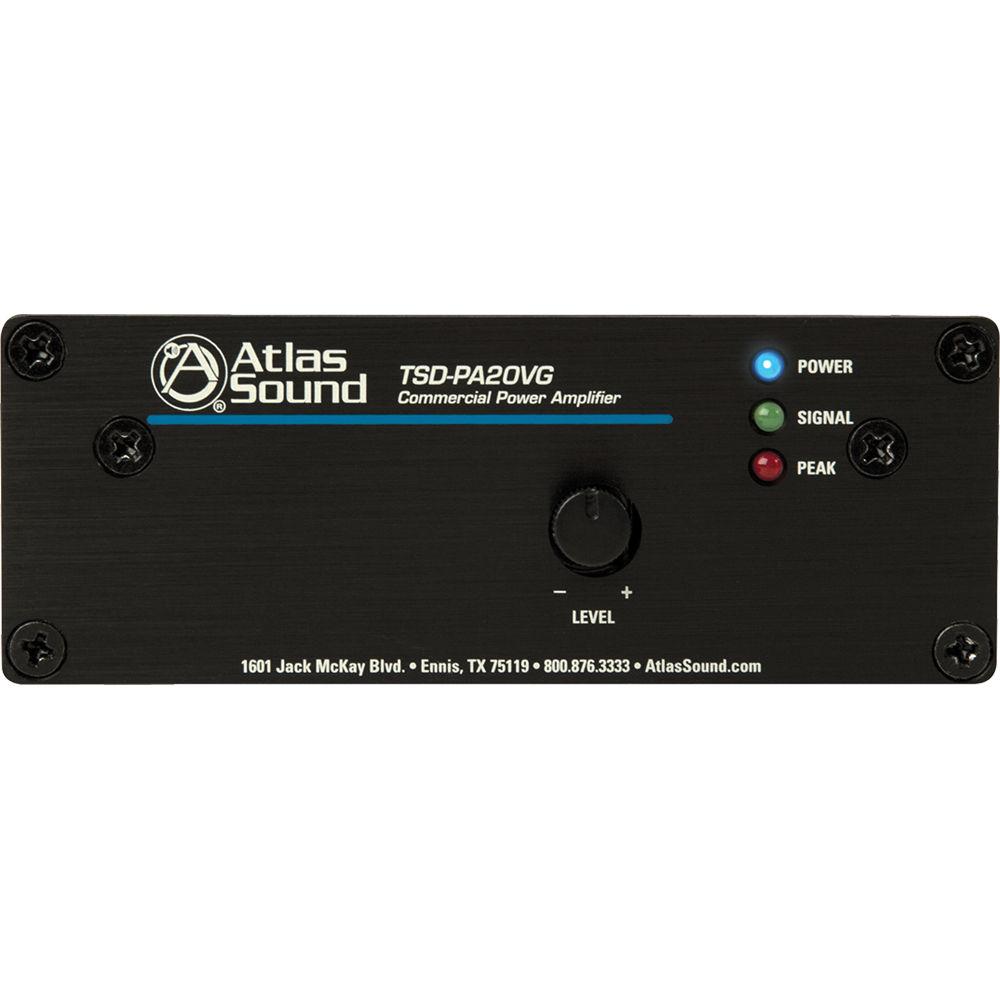

For sound masking applications the TSD-PA20VG has the capacity to drive up to 34 masking speakers tapped at 0.5 watts each on a 70.7V line. Output is gain controlled from a potentiometer on the front panel with removable knob to facilitate installation of a tamper-resistant cover. The unit requires a power supply (available separately) for operation. - Audio Applications
-
- Projector Amplifier
- Zone Amplifier
- Paging Systems
- Removable Level Control with Set-It-And-Forget-It Security Cover
- Input Signal Indicator LED
- Multiple Mounting Configurations
- Separate Ground Connections

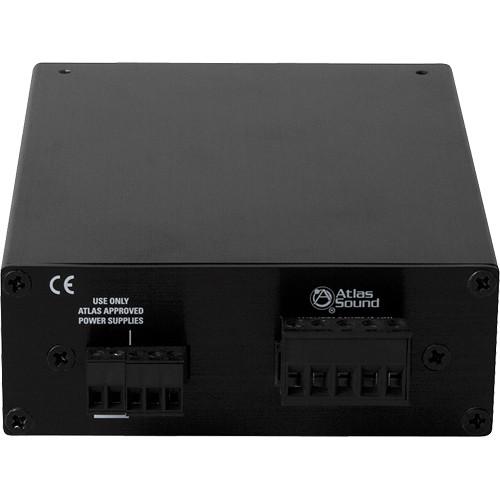

- Removable Phoenix Style I/O Connectors
UPC: 612079187973 In the Box Atlas Sound TSD-PA20VG Mono Power Amplifier Set of Hook and Loop Fasteners Security Cover 2 x Brackets 2 x Cable Retainers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-PA20VG Mono Power Amplifier in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound TSD-PA20VG Specs | | | Type | 1x Balanced line removable 3 position captive screw 1/8" (3.5 mm) spacing | | Impedance | Balanced: 10 kΩ
Unbalanced: 5 kΩ | | Line Input Level | 500 mV (-6 dBV) balanced | | | | Type | 1x Speaker output, removable 5 position captive screw 0.2" (5 mm) spacing | | Output | Output Taps: 4 Ω, 25, 70, 100 V | | Wire Size | 14 gauge, maximum | | | | Level Control | 1x Removable knob with security cover | | | | Input Signal | Green, 25 mV on threshold | | Peak | Red, -3 dB before clip | | Power | Blue | | | | Frequency Response | 40 Hz to 20 kHz (±3 dB) | | THD | 15% @ 1 kHz | | Signal to Noise Ratio | 78 dB | | | | Load | Load Taps: 4 Ω, 25 V = 31 Ω load, 70 V = 250 Ω load, 100 V = 500 Ω load | | Voltage | 24 V DC | | Current | Idle: 50 mA
Average: 160 mA
Maximum: 490 mA | | Watts | Idle VA Watts: 1.2 W
Average VA Watts: 3.8 W
Maximum VA Watts: 11.7 W | | | | Chassis | Aluminum | | Dimensions (HxWxD) | 1.5 x 4.0 x 5.2" (39 x 101 x 132 mm) | | Weight | 6 oz (165 g) | | | | Package Weight | 2.88 lb | | Box Dimensions (LxWxH) | 7.0 x 7.0 x 3.0" |
