User Manual for Atlas Sound TSD-RL21 2x1 Mic Line Mixer Click to enlarge the picture
Contents of the user manual for the Atlas Sound TSD-RL21 2x1 Mic Line
- Product category: Install Sound Mixers Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Install Sound Mixers
 |
User manual for the Atlas Sound TSD-RL21 2x1 Mic Line contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

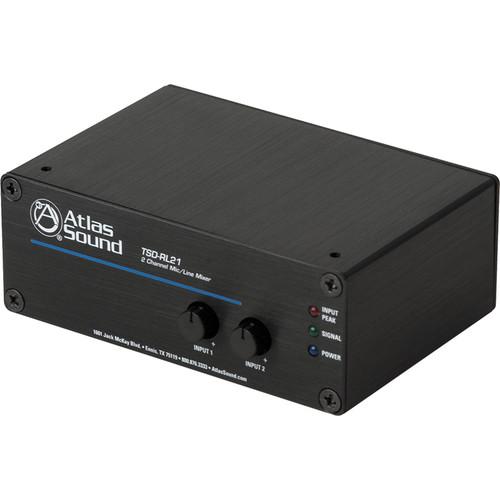

Product description The TSD-RL21 2x1 Mic/Line Mixer from Atlas Sound is designed for applications where paging, public address, and BGM music is required. Use as a standalone remote mixer or in conjunction with Atlas Sound power amplifiers in applications such as conference center meeting rooms, football stadiums, gymnasiums, retail/hospitality or other areas requiring multiple source mix control.

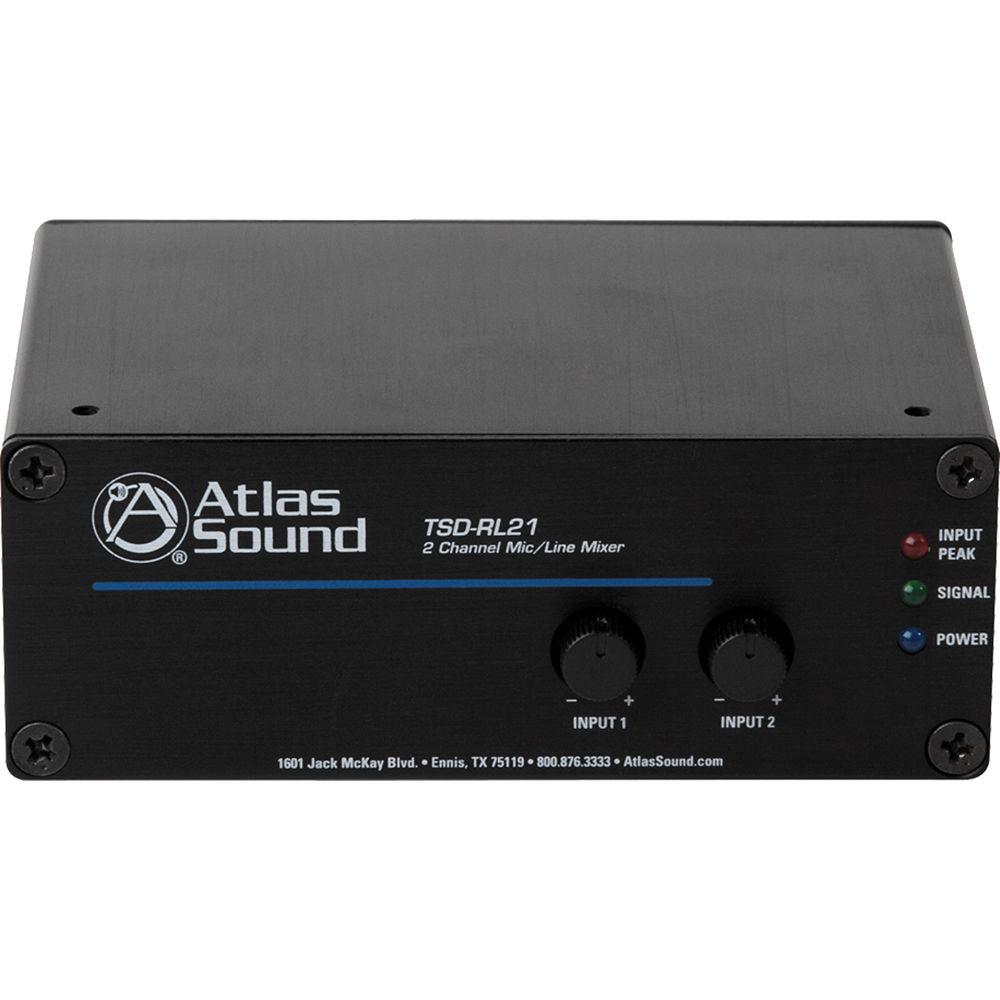

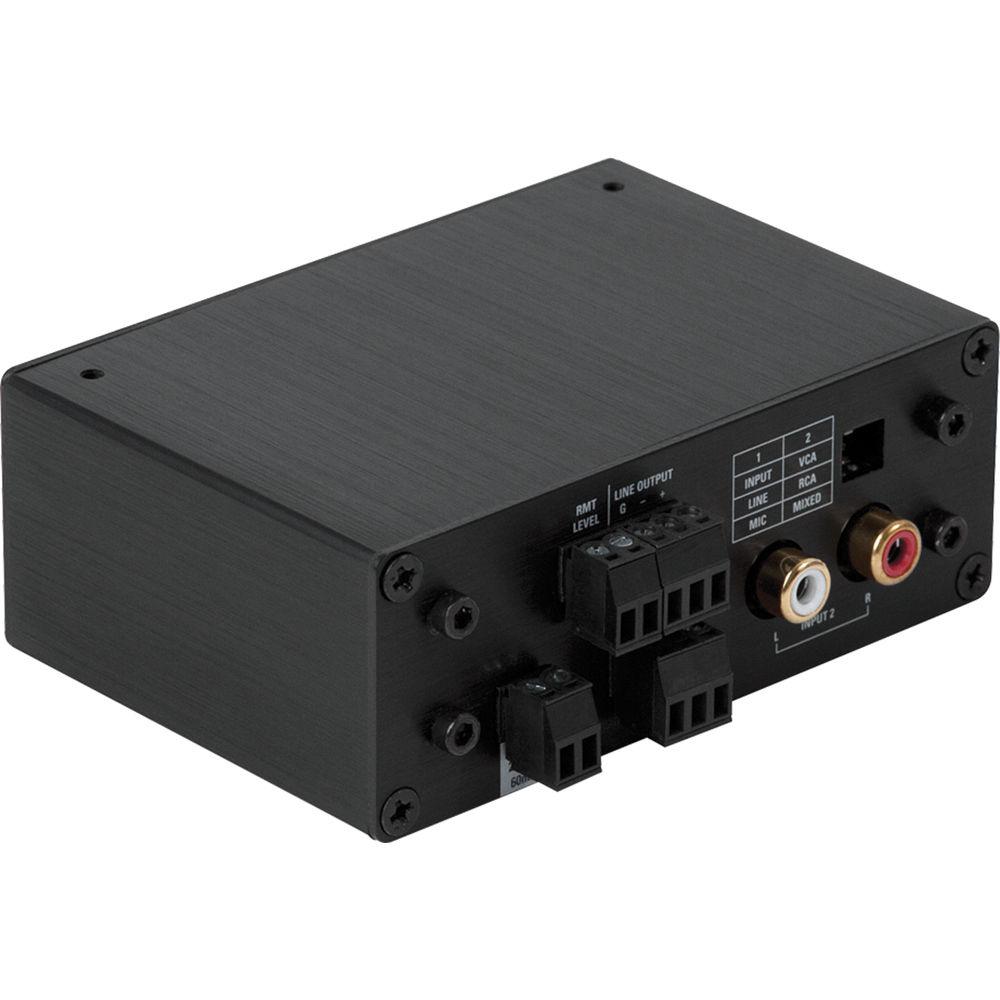

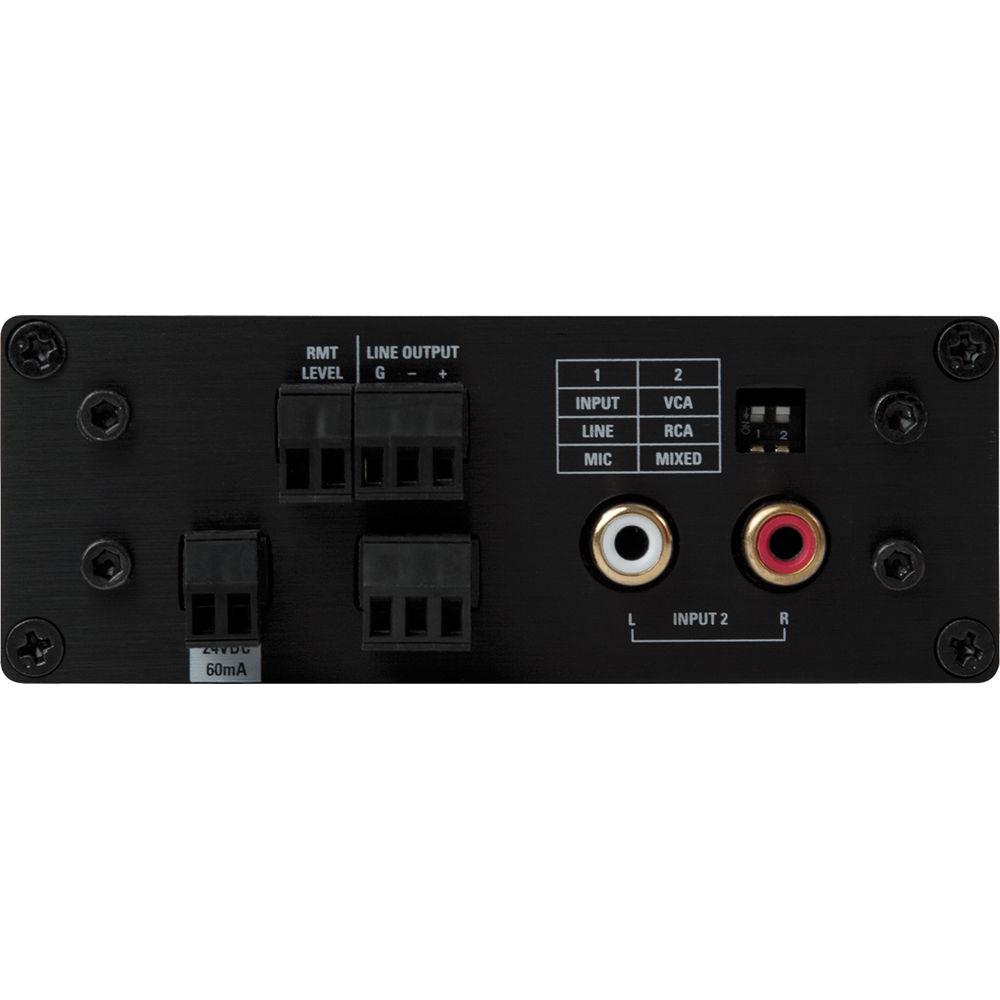

Channel one may be configured via rear panel dipswitch to accommodate mic or line level while channel two features a stereo summing RCA line level input. Both inputs are adjustable by front panel controls with removable knobs, which may be easily replaced by security covers to prevent tampering.
The remote level control feature allows use of the Atlas Sound AAVC-10K (or equal) decorative wall plate control for remote adjustment of either the entire mix bus or RCA input 2 only. A 24VDC power supply (available separately) is required for operation. - Audio Applications
-
- Mixer
- Mic Preamp
- Line Preamp
- Stereo Summing Preamp
- Line Drive
- Remote Level Control
- Selectable Balanced Mic or Line Input
- RCA Actively Summed Input
- Input Peak & Signal Indicator LEDs
- Remote Level Control Assignable to the Mixed Signal or to a BGM Source
- High Gain Output for Driving Long Balanced Lines
- Multiple Mounting Configurations
- Separate Ground Connections
- Removable Phoenix Style I/O Connectors
UPC: 612079187874 In the Box Atlas Sound TSD-RL21 2x1 Mic/Line Mixer Set of Hook and Loop Fasteners 2 x Brackets 2 x Cable Retainers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-RL21 2x1 Mic Line Mixer in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAtlas Sound TSD-RL21 Specs | | | Type | 1x Unbalanced RCA left and right actively summed
1x Removable 3 position captive screw 1/8" (3.5 mm) spacing | | Impedance | RCA: 10 kΩ
1/8": 1.2 kΩ balanced, 600 Ω unbalanced | | Input Level | 316 mV (-10 dBV) = 2 V (+6 dBV) Balanced Output
Maximum Input: 1.6 V (4.1 dBV) | | Line Input Level | 1/8": 1 V (0 dBV) Balanced = 2 V (+6 dBV) Balanced Output
Maximum Input 6 V (15 dBV) | | Mic Input Level | 1/8": 46 dB Gain 10 mV (-40dB) Balanced = 2 V (+6 dBV) Balanced Output, Maximum Input 40mV (-27dBV) | | | | Type | 1x Balanced line removable 3 position captive screw 1/8" (3.5 mm) spacing | | Impedance | Balanced: 300 Ω
Unbalanced: 150 Ω | | Line Output Level | 1 V (0 dBV) In = 2 V (+6 dBV)
Maximum Output 6 V (15 dBV) | | | | Input Level | 2x Removable knobs with security covers | | Remote | Remote Level: Control Port 10K External Pot, Removable 2 Position Captive Screw 1/8" (3.5 mm) Spacing | | DIP Switch | Input 1: Mic/Line Select
Remote Level Assign: Mix or Input 2 | | | | Input Signal | Green, 25 mV On Threshold | | Peak | Red, -3 dB Before Clip | | Power | Blue | | | | Frequency Response | 20 Hz to 20 kHz (±1 dB) | | THD | 0.06% @ 1 kHz | | Signal to Noise Ratio | Line to Line: 85 dBV
Mic to Line: 70 dBV | | | | Voltage | 24 VDC | | Power Consumption | 60 mA
1.4 W | | | | Chassis | Aluminum | | Dimensions (H x W x D) | 1.5 x 4 x 2.75" (39 x 101 x 70 mm) | | Weight | 6 oz (165 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 5.2 x 3.6 x 2.4" |
