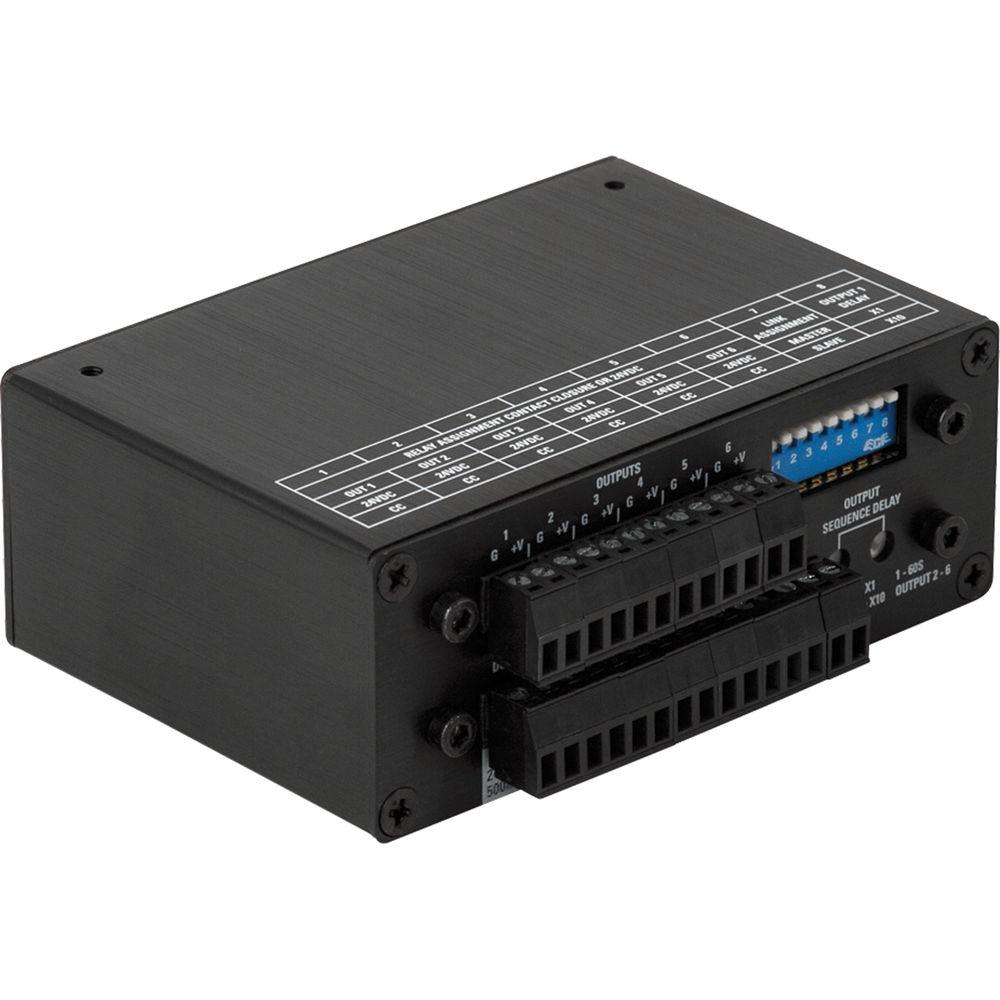

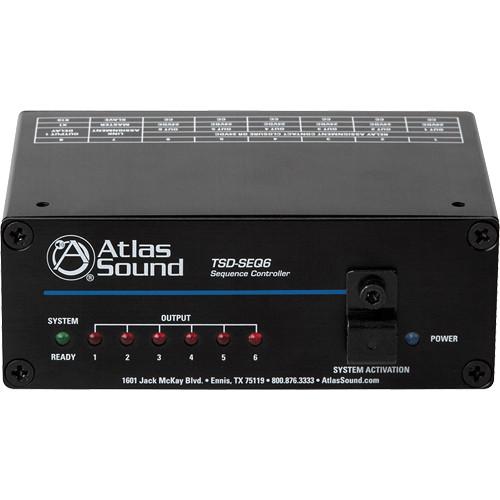

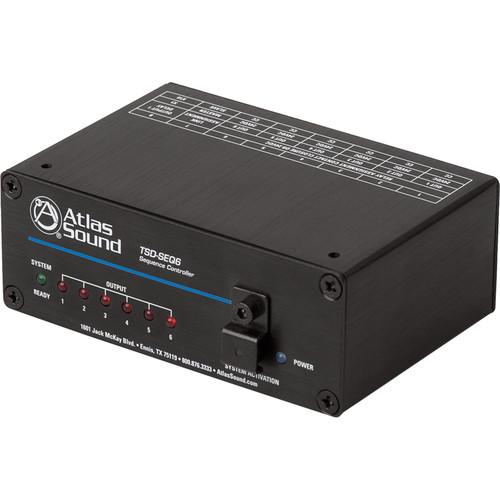

Product description The Atlas Sound TSD-SEQ6 is an AC power sequencer controller than can be used in tandem with a compatible ECM series power distributor for sequenced power-up, and power-down of professional equipment in a wide range of scenarios such as restaurants, churches, schools, music venues, and other applications.The TSD-SEQ6 features 6 outputs that are configurable individually to be either a 24VDC output or Hard Switch Contact Closure (CC). There are two separate output sequence time delay trimmers ranging from 1 second to 6 minutes. Activation can be done via the front panel or remotely via Hard Switch CC, Momentary Switch or DC Voltage. The TSD-SEQ6 also incorporates an Emergency Power Down (EPD) port for local fire codes. You can link two TSD-SEQ6 units together giving you 12 sequenced outputs.The TSD-SEQ6 is part of a full line of Atlas Sound Time Saving Devices. These compact (1.5" x 4" x 2.75") units are designed to solve some of the common audio system problems in the easiest, most efficient, and cost-effective way. All models are made from high quality components and include removable individual I/O connectors for quick and precise wiring, separate ground terminals for all I/Os assuring secured connections, and removable level controls that can be replaced with tamper-resistant security covers. The TSDs are highly efficient and meet most energy standards as one 24V DC power supply (available separately) can power multiple Atlas Time Saving Devices. - 6 Adjustable sequenced outputs
- Assignable 24VDC or hard switch contact closure (CC) per output
- Remote Activation via 5 - 24VDC, momentary contacts, hard switch contacts
- Status indicator for each output
- Emergency power down "EPD" port
- Link out for two TSD-SEQ6 controllers
- Voltage output for remote LED status display
- Separate wiring port for each input/output
- Multiple mounting configurations
- Removable Phoenix style input/output connectors
UPC: 612079188321 In the Box Atlas Sound TSD-SEQ6 AC Power Sequencer Controller Hook and Loop Strap 2 x Mounting Bracket 2 x Cable Retainer Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-SEQ6 AC Power Sequencer Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

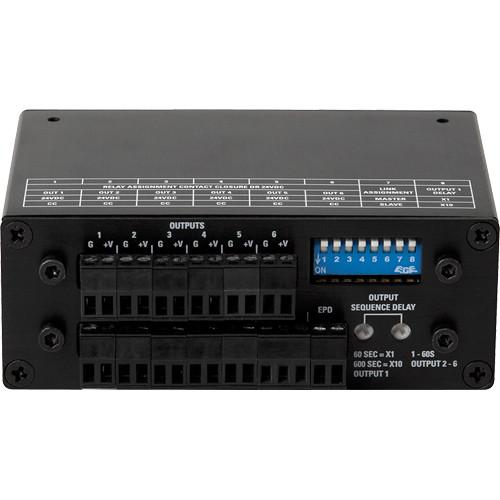

Technical parametersAtlas Sound TSD-SEQ6 Specs | Construction | Black aluminum | | Compatibility | ECM-20, ECM-20M, ECM-15SH, ECM-20SH, ECM-30, and ECM-2063 power conditioning and suppressing modules | | Outputs | 6 x 2-pin Phoenix, sequenced channel output
1 x 3-pin Phoenix, link input/output
1 x 2-pin Phoenix, output 24VDC for remote panel LED indicator | | Controls | 1 x 2-pin Phoenix, momentary switch port
1 x 2-pin Phoenix, hard switch contact closure port
1 x 2-pin Phoenix, DC voltage port
1 x 2-pin Phoenix, Emergency Power Down (EPD)
1 x 2-pin Phoenix, power LED port
DIP switch port #1-6: channel output assignment
DIP switch port #7: link assignment configuration
DIP switch port #8: Sequence output 1 time delay | | LED Status Indicators | 1 x System ready, green
1 x Power, blue
6 x Output, red | | Certifications | cUL, CE, RoHS, TUV | | Voltage | 24 VDC, 500 mA | | Power Consumption | 100 mA | | Wattage | 2.4 W | | Dimensions (H x W x D) | 1.5 x 4 x 2.75" (3.9 x 10.1 x 7 cm) | | Weight | 6 oz (170 g) | | | | Package Weight | 27.72 lb | | Box Dimensions (LxWxH) | 5.2 x 3.6 x 2.4" |
