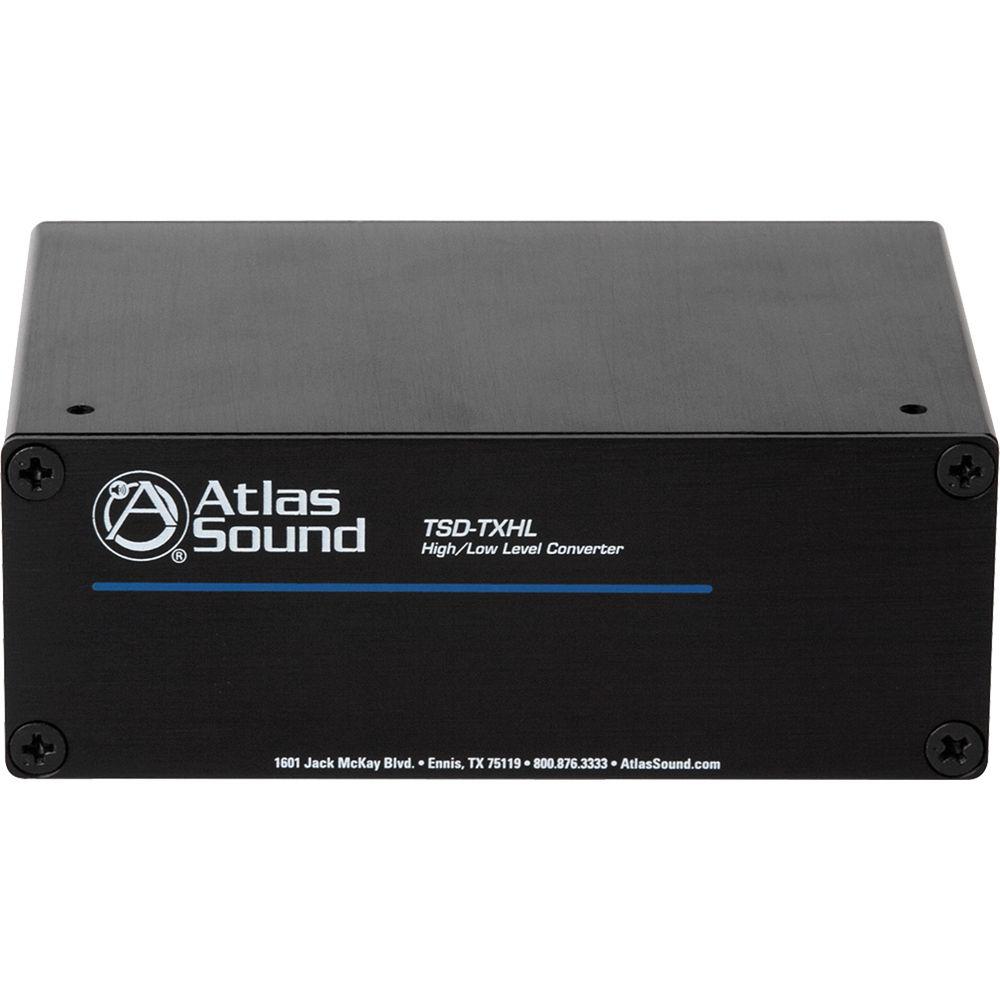

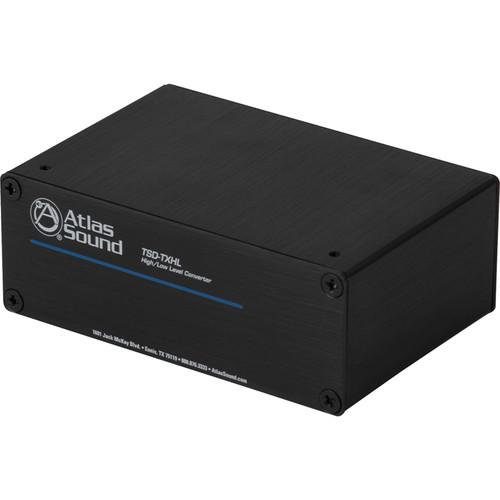

User Manual for Atlas Sound TSD-TXHL High Low Level Converter Click to enlarge the picture
Contents of the user manual for the Atlas Sound TSD-TXHL High Low Level
- Product category: Accessories Atlas Sound
- Brand: Atlas Sound
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Atlas Sound Accessories
 |
User manual for the Atlas Sound TSD-TXHL High Low Level contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Atlas Sound product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Atlas Sound user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Atlas Sound product will considerably shorten its lifespan!
|

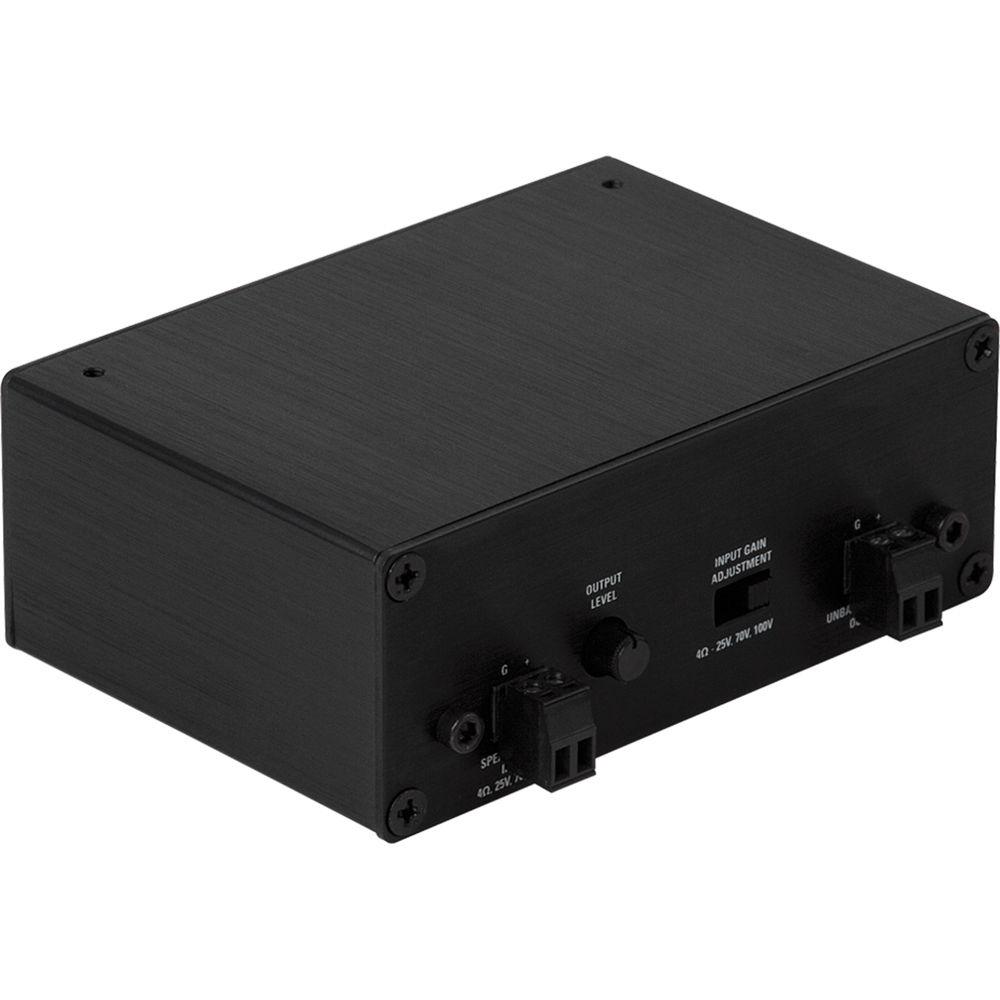

Product description The Atlas Sound TSD-TXHL High/Low Level Converter is a high to low level converter designed to interface with 4Ω/25/70/100V distributed speaker lines. An unbalanced line level output is provided to drive remote amplifiers or other devices.
The TSD-TXHL allows for expansion of zones without the need for dedicated wiring to remote locations. The high to low-level converter features an isolated transformer, which will not add measurable load to the speaker line. An output level control allows for trim adjustment to best match the remote amplifier (or other device) input sensitivity. The TSD-TXHL will work in conjunction with Atlas Sound's CP and PA series. - Audio Applications
-
- System Isolation
- Level Matching
- Add a Zone Anywhere a Speaker System Exists
- Features
-
- Speaker Level to Line Level Conversion Works with 4Ω/25/70/100V Speaker Systems
- Variable Output Level
- Transformer Isolated
- Trim Level Control
- Cable Management System
- Multiple Mounting Configurations
- Wide Bandwidth Frequency Response
- Separate Ground Connections
- Removable I/O Connectors
- No External Power Required
- Compact Chassis Design
UPC: 612079187881 In the Box Atlas Sound TSD-TXHL High/Low Level Converter Set of Hook and Loop Fasteners 2 x Brackets 2 x Cable Retainers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-TXHL High Low Level Converter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

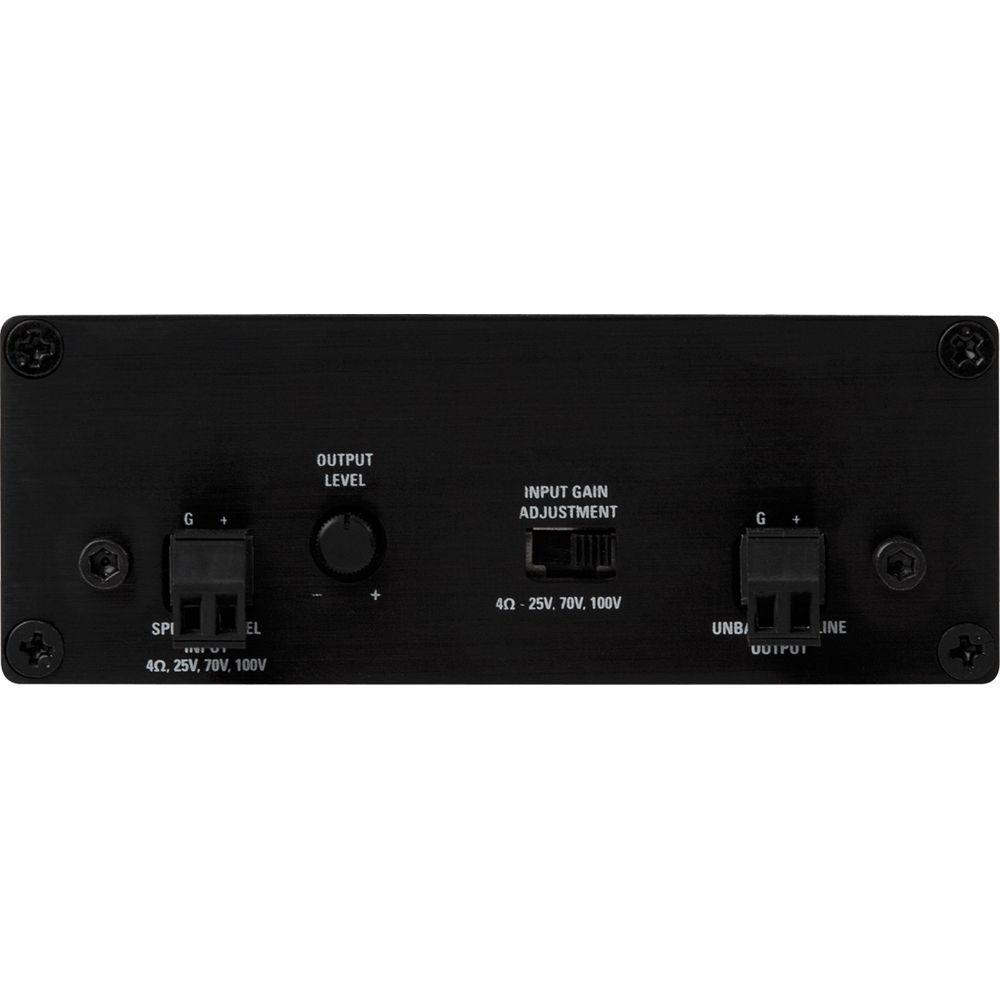

Technical parametersAtlas Sound TSD-TXHL Specs | Inputs | 1x Removable 2 position captive screw 1/8" (3.5 mm) high level input with 4 or 8 Ω, 25, 70, 100 V amplifier speaker outputs | | Outputs | 1x Unbalanced removable 2 position captive screw 1/8" (3.5 mm) spacing line output
Impedance: 600 Ω, unbalanced
Line Output Level: Maximum Output 1 V ±10% | | Controls | 1x Level control with removable knob with security cover
Input Level Adjustment: 4 Ω to 25 V, 70 V, 100 V | | Electrical | Transformer: Isolation step down
Frequency Response: 40 Hz to 25 kHz (-3 dB) | | Construction | Aluminum | | Dimensions (HxWxD) | 1.50 x 4.00 x 2.75" (39 x 101 x 70 mm) | | Weight | 6 oz (165 g) | | | | Package Weight | 21.24 lb | | Box Dimensions (LxWxH) | 5.2 x 3.6 x 2.4" |
