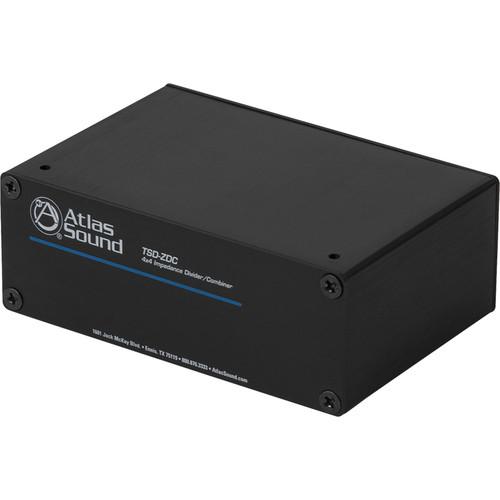

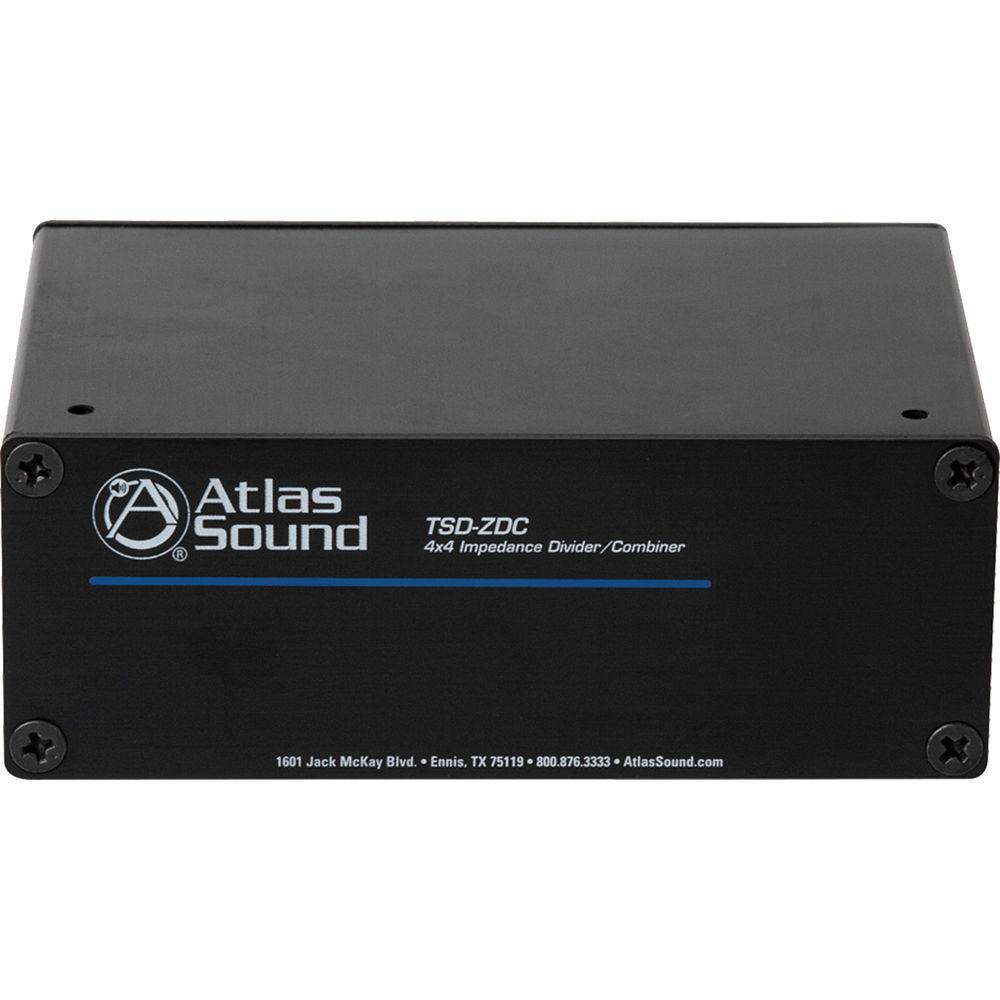

Product description The Atlas Sound TSD-ZDC 4x4 Impedance Divider/Combiner is a universal impedance divider/combiner for passively summing or splitting mic or line level signals. Features include four balanced 10K and four balanced 150Ω inputs and outputs that may be passively split or combined in any arrangement.
Typical applications for the TSD-ZDC include passive summation of multiple 150Ω mics or stereo 10K sources and passive splitting of 150Ω or 10K input sources to multiple outputs. To ease contractor use and installation the TSD-ZDC includes individual ground connectors for each input/output. The unit's compact footprint allows standalone mounting or an optional rack mount adapter may be used to facilitate up to 4 TSD devices. - Audio Applications
-
- Combine up to 3 Microphones to One Output
- Divide a Signal Microphone Signal to Three Mic Outputs
- Combine Stereo Signals Into a Mono Signal
- Divide a Mono Line Level Signal to a Simulated Stereo Signal
- Add a Zone
- Features
-
- 1 In x 3 Out, 2 In x 2 Out, 150Ω Input/Outputs
- 1 In x 3 Out, 2 In x 2 Out, 10K Input/Outputs
- Split or Combine Any Signal
- RF Filtering on All Inputs
- Individual Input Grounds
- Removable I/O Connectors
- No External Power Required
- Compact Chassis Design
In the Box Atlas Sound TSD-ZDC 4x4 Impedance Divider/Combiner 2 x Set of Hook and Loop Fasteners 2 x Brackets 2 x Cable Retainers Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Atlas Sound TSD-ZDC 4x4 Impedance Divider Combiner in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

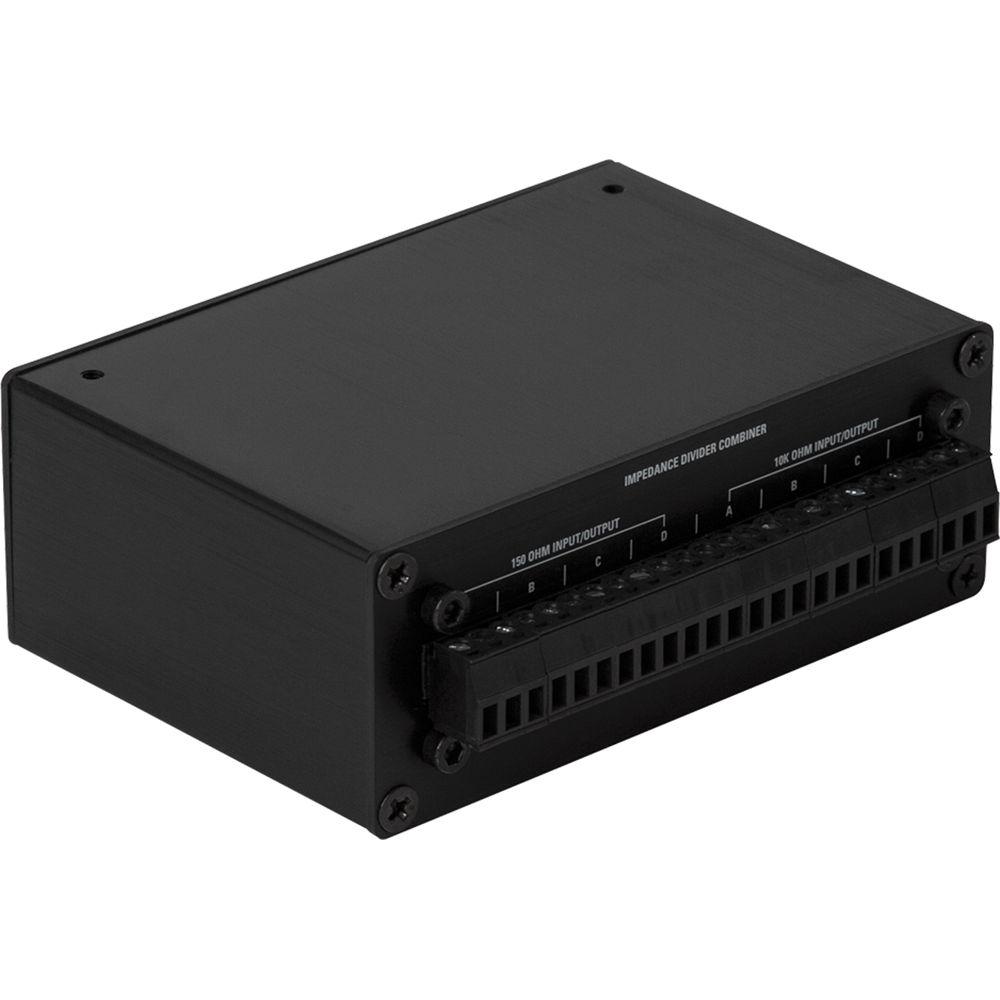

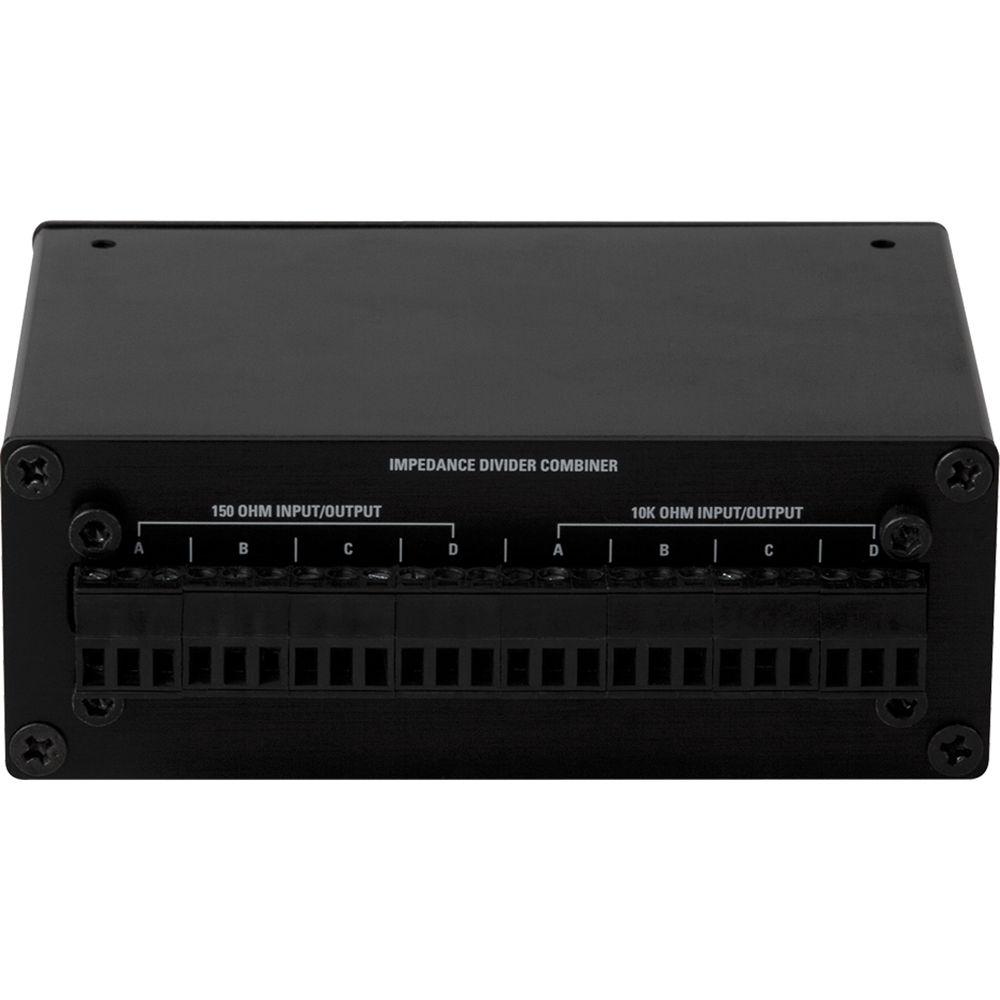

Technical parametersAtlas Sound TSD-ZDC Specs | Type | Audio impedance combiner/divider | | I/O | 4x 150 Ω passive balanced networks (any channel can be used for input or output)
4x 10 kΩ passive balanced networks (any channel can be used for input or output)
1x Removable 3 position captive screw 1/8" (3.5 mm) spacing | | Electrical | Isolation: Passive
Filters: RF
Frequency Response: 20 Hz to 20 kHz (-1 dB) | | Dimensions (HxWxD) | 1.5 x 4 x 2.75" (39 x 101 x 70 mm) | | Weight | 6 oz (165 g) | | | | Package Weight | 1.0 lb | | Box Dimensions (LxWxH) | 5.2 x 3.6 x 2.4" |
